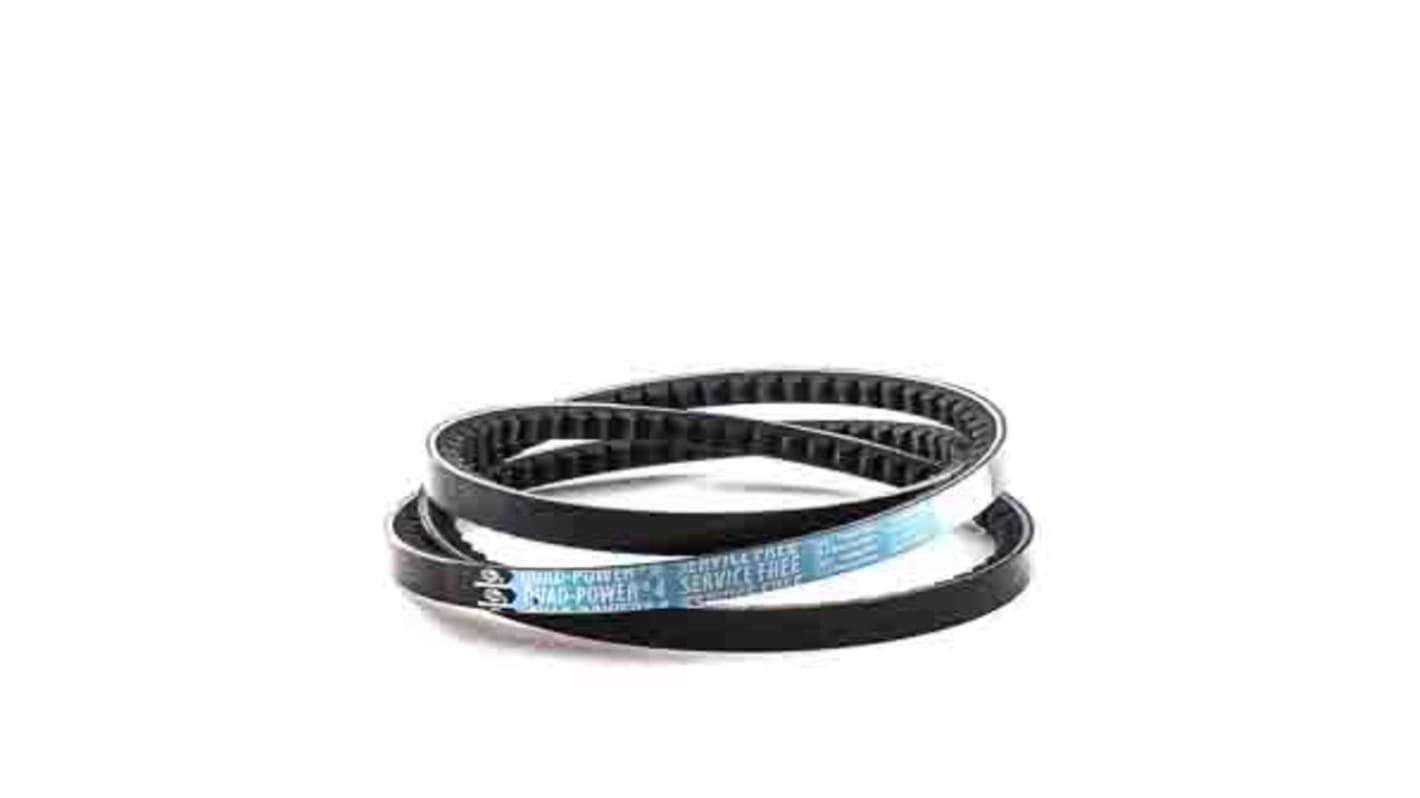

Gates Drive Belt, belt section XPA 2.668 m, 2.605 m Length
- N° de stock RS:
- 211-7804
- Référence fabricant:
- XPA2650 QUAD-POWER 4
- Fabricant:
- Gates
Bénéficiez d'une remise sur les achats en gros
Ajoutez 5 de plus pour économiser 2%
Consulter les options de prix de grosSous-total (1 unité)*
71,86 €
(TVA exclue)
86,95 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 2 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | Économie |
|---|---|---|
| 1 - 4 | 71,86 € | - |
| 5 - 9 | 70,42 € | 2% |
| 10 - 24 | 68,99 € | 3% |
| 25 + | 67,55 € | 5% |
*Prix donné à titre indicatif
- N° de stock RS:
- 211-7804
- Référence fabricant:
- XPA2650 QUAD-POWER 4
- Fabricant:
- Gates
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Gates | |
| Product Type | Drive Belt | |
| Belt Section | XPA | |
| Sub Type | Narrow Belt | |
| Series | Quad Power 4 | |
| Cord Material | Polyester | |
| Belt Material | Ethylene Propylene Diene Monomer Rubber | |
| Belt Width | 12.7mm | |
| Minimum Operating Temperature | -50°C | |
| Outside Length | 2.668m | |
| Belt Height | 10mm | |
| Maximum Operating Temperature | 130°C | |
| Standards/Approvals | ISO 4184, DIN 775, REACH, RoHS, ISO181 ATEX, RMA IP | |
| Inside Length | 2.605m | |
| Sélectionner tout | ||
|---|---|---|
Marque Gates | ||
Product Type Drive Belt | ||
Belt Section XPA | ||
Sub Type Narrow Belt | ||
Series Quad Power 4 | ||
Cord Material Polyester | ||
Belt Material Ethylene Propylene Diene Monomer Rubber | ||
Belt Width 12.7mm | ||
Minimum Operating Temperature -50°C | ||
Outside Length 2.668m | ||
Belt Height 10mm | ||
Maximum Operating Temperature 130°C | ||
Standards/Approvals ISO 4184, DIN 775, REACH, RoHS, ISO181 ATEX, RMA IP | ||
Inside Length 2.605m | ||
- Pays d'origine :
- FR
The Gates XPA series Quad Power 4 raw edge v-belt has designed is the first raw edge zero-maintenance belt by using innovative minimal-stretch cord technology. iT has been developed to replace conventional belt for heavy duty industry drives. This V-belt does not suffer from severe tension decay in the first hours after installation, so no run-in period nor any re-tensioning are required.
Energy efficiencies up to 98%
Latest EPDM rubber technology
Halogen-free belt
Service-free V-belt
Temperature range = -50°C to +130°C
RoHS and REACH compliant
