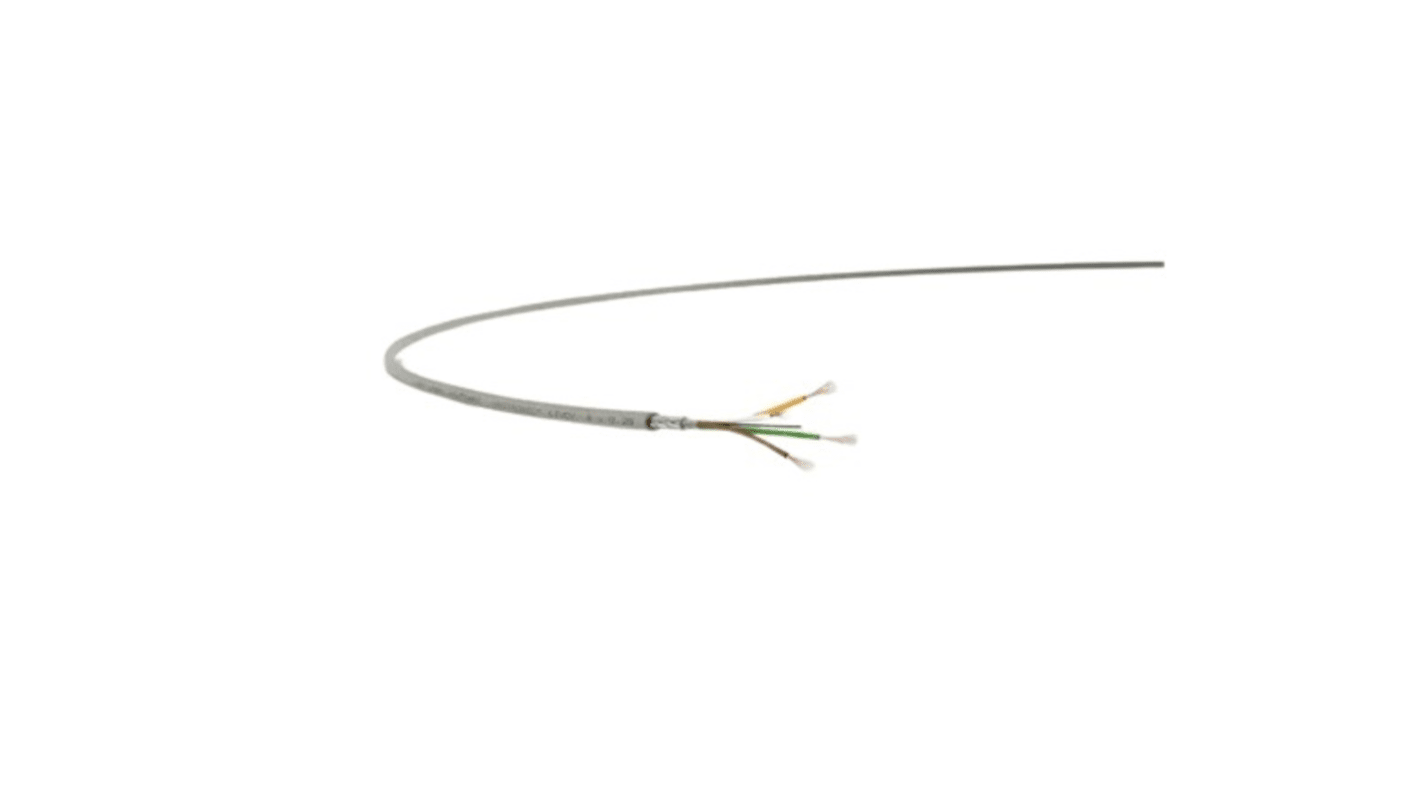

Lapp UNITRONIC LiYCY Series Data Cable 16 Pairs 16 Cores 0.34 mm² 100 m Grey Sheath Polyvinyl Chloride
- N° de stock RS:
- 491-8602
- Numéro d'article Distrelec:
- 301-73-031
- Référence fabricant:
- 0034516
- Fabricant:
- Lapp
Sous-total (100 mètres, sur une bobine de 100)*
624,65 €
(TVA exclue)
755,83 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 5 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Bobine(s) | la bobine | le mètre* |
|---|---|---|
| 1 + | 624,65 € | 6,247 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 491-8602
- Numéro d'article Distrelec:
- 301-73-031
- Référence fabricant:
- 0034516
- Fabricant:
- Lapp
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Lapp | |
| Number of Pairs | 16 | |
| Product Type | Data Cable | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 16 | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 9.4mm | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Stranded | |
| Jacket Material | Polyvinyl Chloride | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | CE, RoHS | |
| Screened/Unscreened | Screened | |
| Core Strands | 7 x 0.25mm | |
| Number of Strands | 7 | |
| Size of Strands | 0.25mm | |
| Fire Behaviour | Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2 | |
| Voltage | 500V | |
| Series | UNITRONIC LiYCY | |
| Conductor Material | Bare Copper | |
| Sélectionner tout | ||
|---|---|---|
Marque Lapp | ||
Number of Pairs 16 | ||
Product Type Data Cable | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 16 | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 9.4mm | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Stranded | ||
Jacket Material Polyvinyl Chloride | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals CE, RoHS | ||
Screened/Unscreened Screened | ||
Core Strands 7 x 0.25mm | ||
Number of Strands 7 | ||
Size of Strands 0.25mm | ||
Fire Behaviour Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2 | ||
Voltage 500V | ||
Series UNITRONIC LiYCY | ||
Conductor Material Bare Copper | ||
- Pays d'origine :
- DE
LAPP Control Cable, Unterminated, 6A Current - UNITRONIC Series - 0034516
Looking for a reliable connection solution for your industrial equipment? Turn to this control cable from LAPP. It has 16 conductors, which means you can use it for multiple power and signal transmissions. As the ends are unterminated, you can choose connectors to suit your system. The cable's insulated PVC outer sheath means that you can handle it safely without the risk of electric shocks.
Features & Benefits
• Current rating of 6A for use in low-power systems
• Length of 100m for convenient long-range connection
• Tinned copper braid shielding delivers clear signal quality
Applications
• Aviation engineering
• Mining industry
• Alarm systems
Is this cable flame-retardant?
Yes, this cable is flame-retardant. Its tough PVC outer jacket has self-extinguishing properties to minimise the spread of fire.
How do I terminate a cable?
You can terminate a cable by attaching it to a connector or directly connecting it to a PCB.
