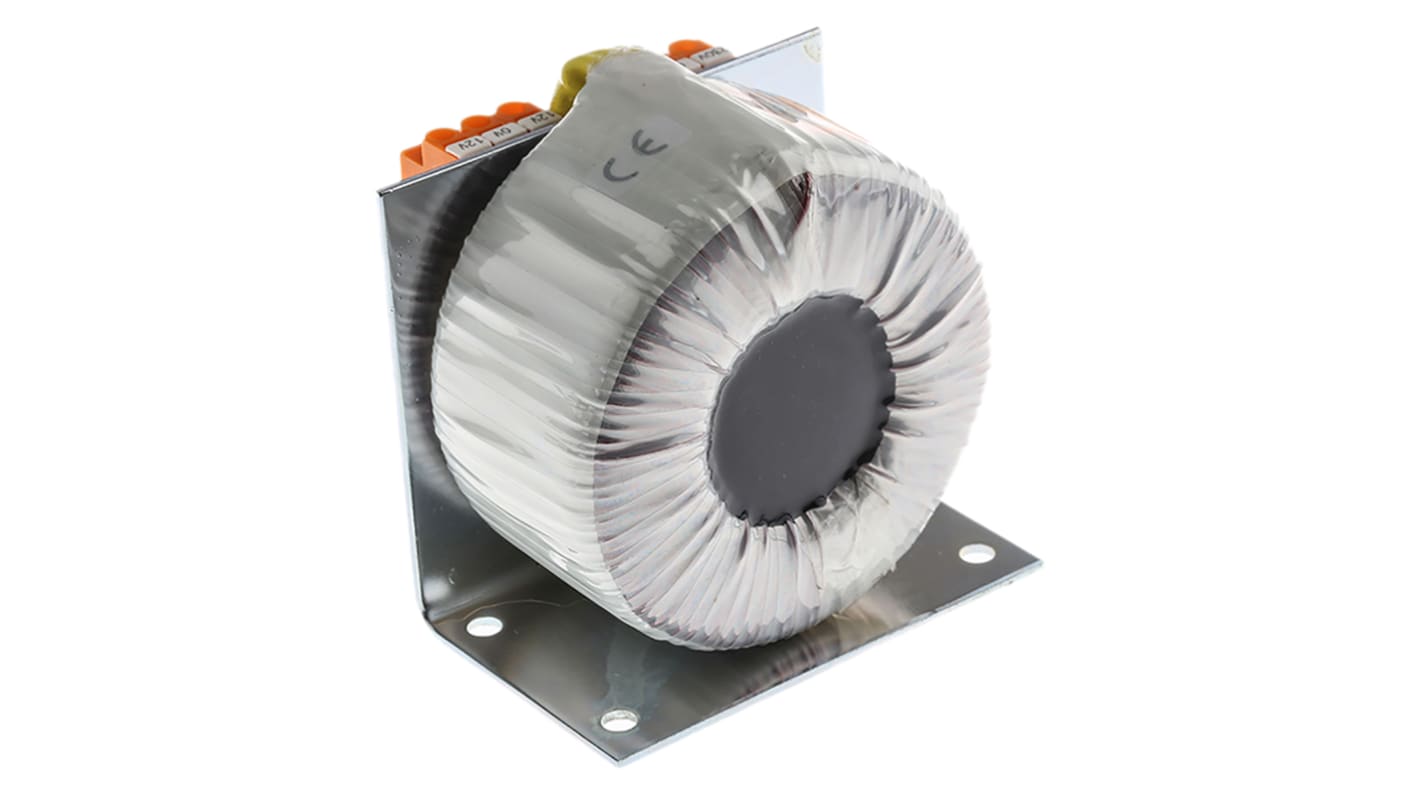

Nuvotem Talema 400 V ac ±12 V ac Toroidal Transformer 1 Output 160 VA, VDE0551 Class II, EN60950 Class II, BS415 Class
- N° de stock RS:
- 310-3124
- Référence fabricant:
- SFB0160-230-12
- Fabricant:
- Nuvotem Talema
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
133,10 €
(TVA exclue)
161,05 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 08 janvier 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 133,10 € |
| 10 - 24 | 125,78 € |
| 25 - 49 | 112,48 € |
| 50 - 74 | 99,17 € |
| 75 + | 85,85 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 310-3124
- Référence fabricant:
- SFB0160-230-12
- Fabricant:
- Nuvotem Talema
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Nuvotem Talema | |
| Primary Voltage | 400 V ac | |
| Product Type | Toroidal Transformer | |
| Secondary Voltage | ±12 V ac | |
| Number of Outputs | 1 | |
| Secondary Current | 6.667A | |
| Weight | 1.5kg | |
| Power | 160VA | |
| Minimum Operating Frequency | 50Hz | |
| Winding Type | Centre Tapped | |
| Maximum Operating Frequency | 60Hz | |
| Minimum Operating Temperature | 105°C | |
| Toroid Centre | 80 x 39 mm | |
| Mount Type | Chassis | |
| Maximum Operating Temperature | 180°C | |
| Termination Type | Screw | |
| Height | 99mm | |
| Standards/Approvals | VDE0551 Class II, EN60950 Class II, BS415 Class II, VDE0550 Class II, EN60742 Class II, EN60065 Class II (IEC65) | |
| Sélectionner tout | ||
|---|---|---|
Marque Nuvotem Talema | ||
Primary Voltage 400 V ac | ||
Product Type Toroidal Transformer | ||
Secondary Voltage ±12 V ac | ||
Number of Outputs 1 | ||
Secondary Current 6.667A | ||
Weight 1.5kg | ||
Power 160VA | ||
Minimum Operating Frequency 50Hz | ||
Winding Type Centre Tapped | ||
Maximum Operating Frequency 60Hz | ||
Minimum Operating Temperature 105°C | ||
Toroid Centre 80 x 39 mm | ||
Mount Type Chassis | ||
Maximum Operating Temperature 180°C | ||
Termination Type Screw | ||
Height 99mm | ||
Standards/Approvals VDE0551 Class II, EN60950 Class II, BS415 Class II, VDE0550 Class II, EN60742 Class II, EN60065 Class II (IEC65) | ||
Control Panel Toroidal SFB Series
High quality toroidal isolating transformers designed for use in control circuits and general purpose applications.
Vertical mounting on a zinc plated steel bracket
Small size and low weight compared with traditional lamination types
Fully shrouded screw terminals with permanent marking
Easy installation - mounting holes provided
Low radiated magnetic field
Very low induced noise (hum)
High quality manufacturing and testing in accordance to EN60742, EN60065, VDE0551, VDE0550 and BS415
Toroidal
High quality toroidal isolating transformers designed for use in control circuits and general purpose applications.
Approvals
VDE 0551; VDE 0550
Standards
EN60742; EN60065; BS415
