Rittal 115V ac, 230V ac Toroidal Transformer, 110W
- N° de stock RS:
- 228-9230
- Référence fabricant:
- 3201970
- Fabricant:
- Rittal
Sous-total (1 unité)*
301,30 €
(TVA exclue)
364,57 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 28 janvier 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 301,30 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 228-9230
- Référence fabricant:
- 3201970
- Fabricant:
- Rittal
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Rittal | |
| Primary Voltage Rating | 115V ac | |
| Secondary Voltage Rating | 230V ac | |
| Power Rating | 110W | |
| Height | 123mm | |
| Weight | 2.2kg | |
| Dimensions | 105 x 123 x 55mm | |
| Maximum Operating Frequency | 60Hz | |
| Mounting Type | Wall Mounted | |
| Sélectionner tout | ||
|---|---|---|
Marque Rittal | ||
Primary Voltage Rating 115V ac | ||
Secondary Voltage Rating 230V ac | ||
Power Rating 110W | ||
Height 123mm | ||
Weight 2.2kg | ||
Dimensions 105 x 123 x 55mm | ||
Maximum Operating Frequency 60Hz | ||
Mounting Type Wall Mounted | ||
- Pays d'origine :
- DE

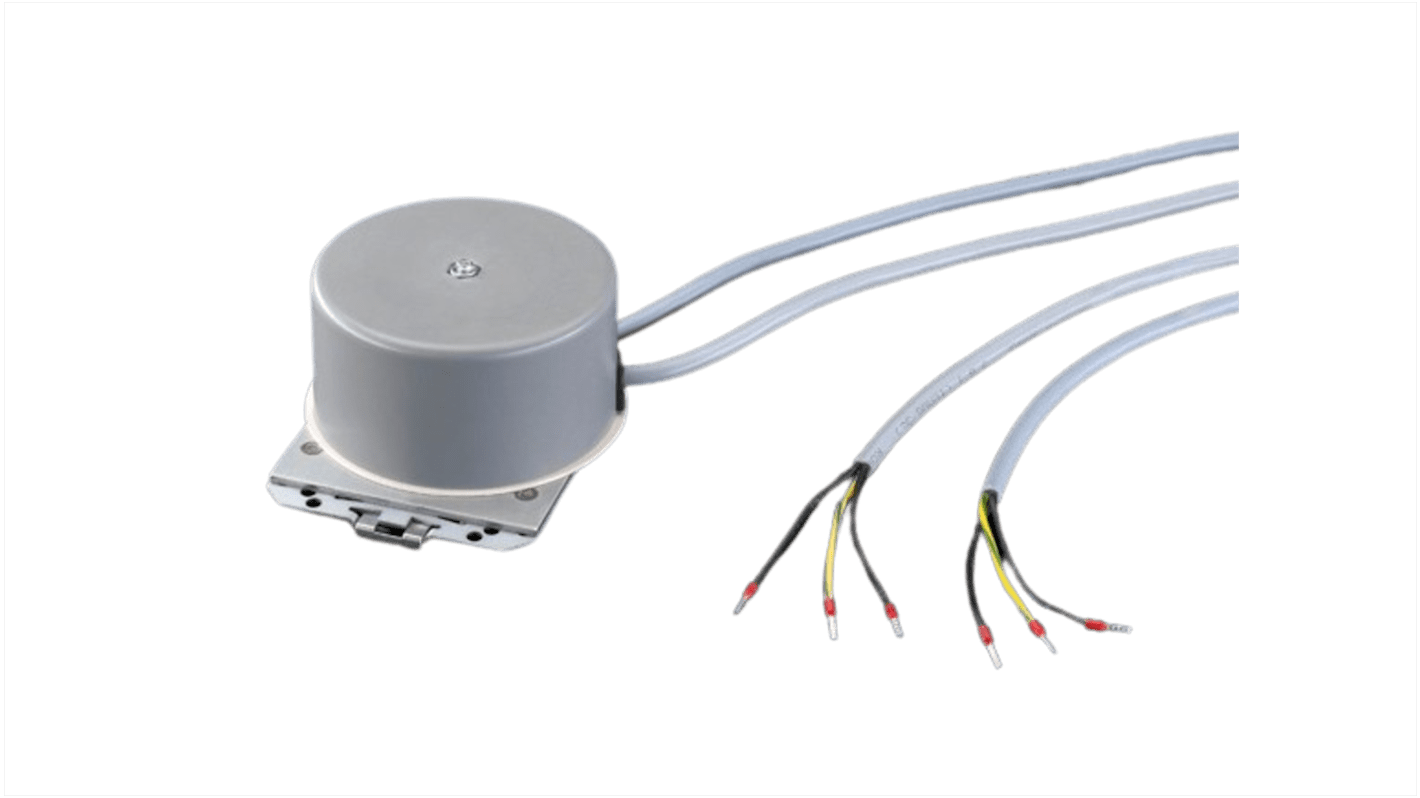

Rittal Toroidal Transformer, 115V AC Primary Voltage Rating, 110W - 3201970
The toroidal transformer is designed for efficient power supply to wall-mounted 230 V air/water heat exchangers, available with a choice of 115V or 400V primary connections. Its robust design ensures reliable performance, accommodating various installation needs while maintaining compact dimensions. With a voltage tolerance of ±10%, this transformer ensures stable operation even in fluctuating electrical environments. Weighing 2.23 kg, it is both lightweight and durable, making it an excellent choice for various applications requiring dependable energy conversion.
Features & Benefits
• Output power rating of 110W supports efficient energy use
• Primary connection length is 3500mm for flexible installation
• Secondary connection length of 1500mm for varied reach
• Voltage tolerance of ±10% ensures reliable performance
• Complies with EAC standards for quality assurance
• Primary connection length is 3500mm for flexible installation
• Secondary connection length of 1500mm for varied reach
• Voltage tolerance of ±10% ensures reliable performance
• Complies with EAC standards for quality assurance
Applications
• Used for powering wall-mounted 230V AC air/water heat exchangers
• Suitable for automation and electronics systems requiring voltage conversion
• Suitable for automation and electronics systems requiring voltage conversion
Will it fit standard mounting solutions?
It is designed to mount on a 35mm support rail.
