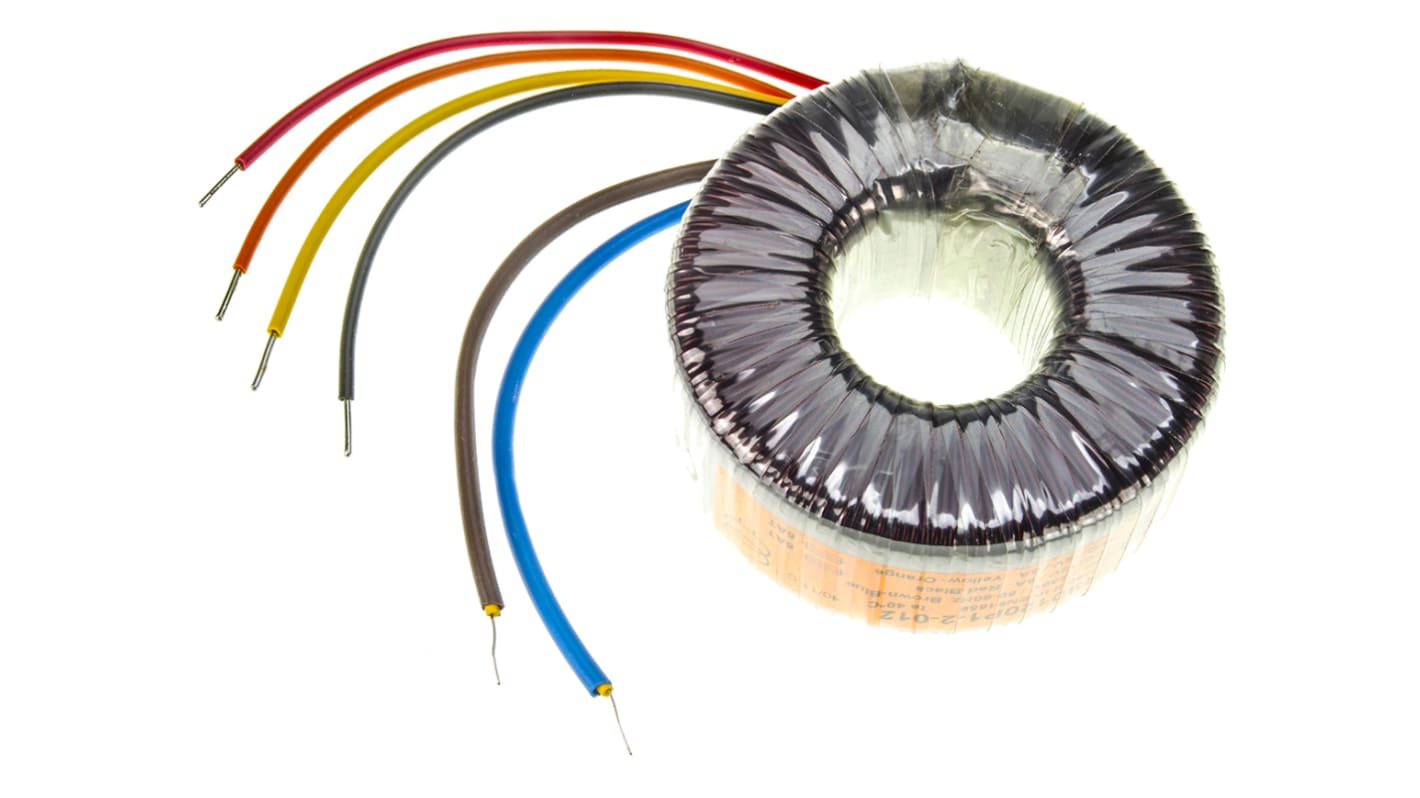

Nuvotem Talema 230 V ac 2 x 12 V ac Toroidal Transformer 2 Output 120 VA, BS415, UL5 (File E15495), EN60065, EN61558
- N° de stock RS:
- 223-8011
- Référence fabricant:
- 0120P1-2-012
- Fabricant:
- Nuvotem Talema
Sous-total (1 unité)*
68,88 €
(TVA exclue)
83,34 €
(TVA incluse)
Ajouter 2 unités pour bénéficier d'une livraison gratuite
En stock
- 2 unité(s) prête(s) à être expédiée(s)
- Plus 229 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 68,88 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 223-8011
- Référence fabricant:
- 0120P1-2-012
- Fabricant:
- Nuvotem Talema
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Nuvotem Talema | |
| Product Type | Toroidal Transformer | |
| Primary Voltage | 230 V ac | |
| Secondary Voltage | 2 x 12 V ac | |
| Number of Outputs | 2 | |
| Secondary Current | 5 A | |
| Power | 120VA | |
| Weight | 1.2kg | |
| Diameter | 93 mm | |
| Minimum Operating Frequency | 50Hz | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Frequency | 60Hz | |
| Winding Type | Primary Winding, Secondary Winding | |
| Maximum Operating Temperature | 180°C | |
| Mount Type | Screw | |
| Height | 46mm | |
| Termination Type | Copper Conductor Termination Wire | |
| Standards/Approvals | BS415, UL5 (File E15495), EN60065, EN61558 (DEKRA Certificates 161054.01 and 161054.0), UL506, VDE0550 | |
| Sélectionner tout | ||
|---|---|---|
Marque Nuvotem Talema | ||
Product Type Toroidal Transformer | ||
Primary Voltage 230 V ac | ||
Secondary Voltage 2 x 12 V ac | ||
Number of Outputs 2 | ||
Secondary Current 5 A | ||
Power 120VA | ||
Weight 1.2kg | ||
Diameter 93 mm | ||
Minimum Operating Frequency 50Hz | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Frequency 60Hz | ||
Winding Type Primary Winding, Secondary Winding | ||
Maximum Operating Temperature 180°C | ||
Mount Type Screw | ||
Height 46mm | ||
Termination Type Copper Conductor Termination Wire | ||
Standards/Approvals BS415, UL5 (File E15495), EN60065, EN61558 (DEKRA Certificates 161054.01 and 161054.0), UL506, VDE0550 | ||
Open Style with Leads, 15VA to 1000VA
High-quality open style toroidal transformers with a single 230 Vac 50/60 Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently.
Small size and low weight compared with traditional stacked lamination types
Extremely low level of radiated magnetic field and very low induced noise (hum)
Very low iron losses
Double insulated primary leads
100% electrical and flash tested
High-quality manufacturing and testing in accordance to EN61558, EN60950, EN60065, VDE 0551, VDE 0550 and BS415
Approvals
UL 506; EN 61558
Warning
Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
Standards
UL 506; EN 61558
Supplied with
Full mounting kit
