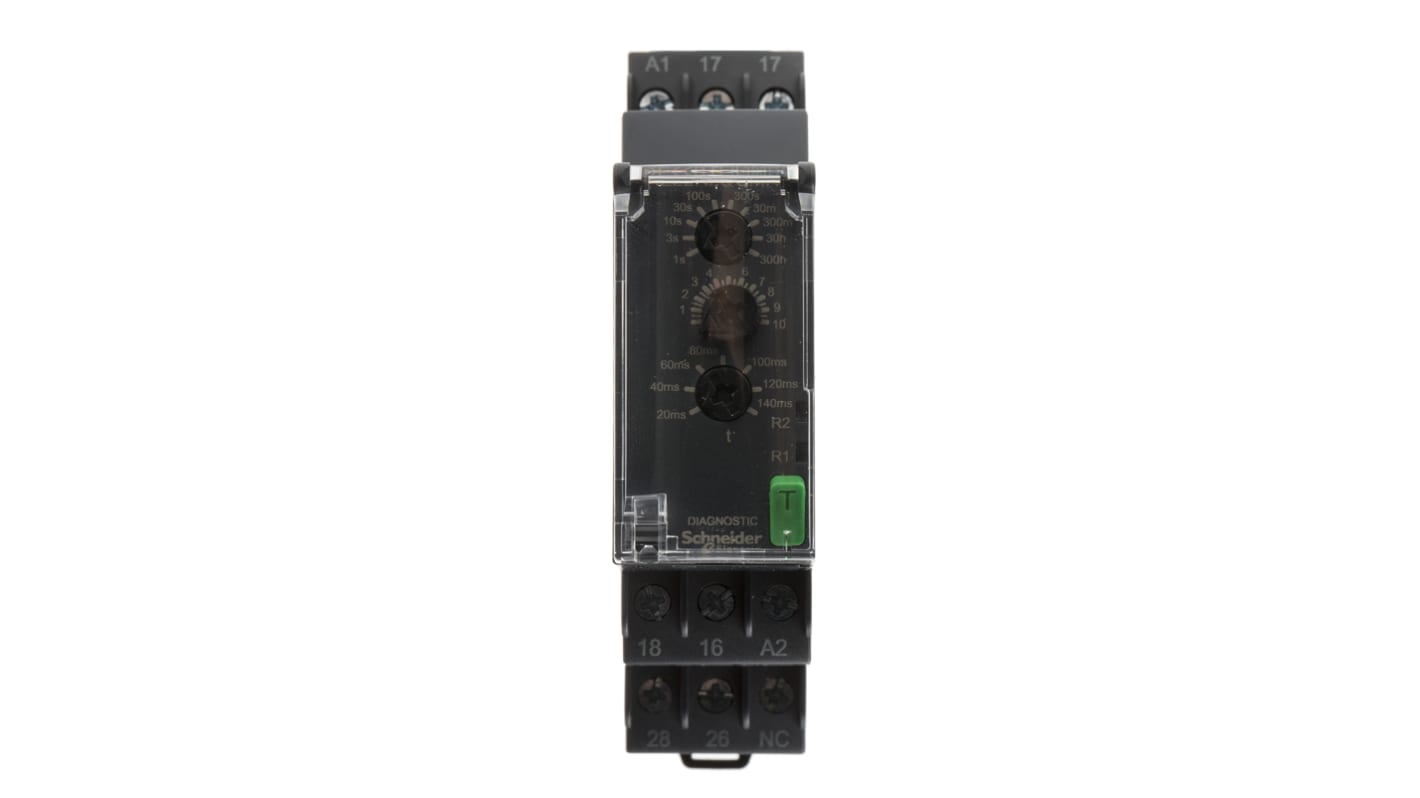

Schneider Electric Harmony Time Series DIN Rail Timer Relay, 2-Contact, 240 V dc 24V ac, 240 V ac, 1-Function, DPDT
- N° de stock RS:
- 897-6734
- Numéro d'article Distrelec:
- 303-02-801
- Référence fabricant:
- RE22R2QGMR
- Fabricant:
- Schneider Electric
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
78,81 €
(TVA exclue)
95,36 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 2 unité(s) expédiée(s) à partir du 03 juin 2026
- Plus 6 unité(s) expédiée(s) à partir du 03 juin 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 78,81 € |
| 10 + | 66,99 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 897-6734
- Numéro d'article Distrelec:
- 303-02-801
- Référence fabricant:
- RE22R2QGMR
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Product Type | Timer Relay | |
| Function | Valve | |
| Mount Type | DIN Rail | |
| Number of Contacts | 2 | |
| Number of Timer Functions | 1 | |
| Switching Voltage | 250V ac | |
| Contact Configuration | DPDT | |
| IP Rating | IP20, IP50, IP40 | |
| Supply DC Voltage | 240 V dc | |
| Contact Current | 8A | |
| Timing Adjustment | Knob | |
| Minimum Operating Temperature | -20°C | |
| Supply AC Voltage | 24, 240V ac | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | 60°C | |
| Width | 90mm | |
| Standards/Approvals | UL, EAC, CE, CSA, IEC 61812-1, UL 508, RCM, GL, CCC | |
| Length | 22.9mm | |
| Height | 79.5mm | |
| Series | Harmony Time | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Product Type Timer Relay | ||
Function Valve | ||
Mount Type DIN Rail | ||
Number of Contacts 2 | ||
Number of Timer Functions 1 | ||
Switching Voltage 250V ac | ||
Contact Configuration DPDT | ||
IP Rating IP20, IP50, IP40 | ||
Supply DC Voltage 240 V dc | ||
Contact Current 8A | ||
Timing Adjustment Knob | ||
Minimum Operating Temperature -20°C | ||
Supply AC Voltage 24, 240V ac | ||
Terminal Type Screw | ||
Maximum Operating Temperature 60°C | ||
Width 90mm | ||
Standards/Approvals UL, EAC, CE, CSA, IEC 61812-1, UL 508, RCM, GL, CCC | ||
Length 22.9mm | ||
Height 79.5mm | ||
Series Harmony Time | ||
- Pays d'origine :
- ID
Zelio Star Delta Timers- RE22 Series
22.5 mm profile width
Screw terminals connection
State indication by LED
Repeat accuracy of +/- 0.5 % conforming to IEC 61812-1
Available option of supplying a load in parallel
Operating temperature of -20 → 60 °C
Self extinguishing housing material
Ingress protection of IP20 (terminal block), IP40 (housing) and IP50 (front face)
