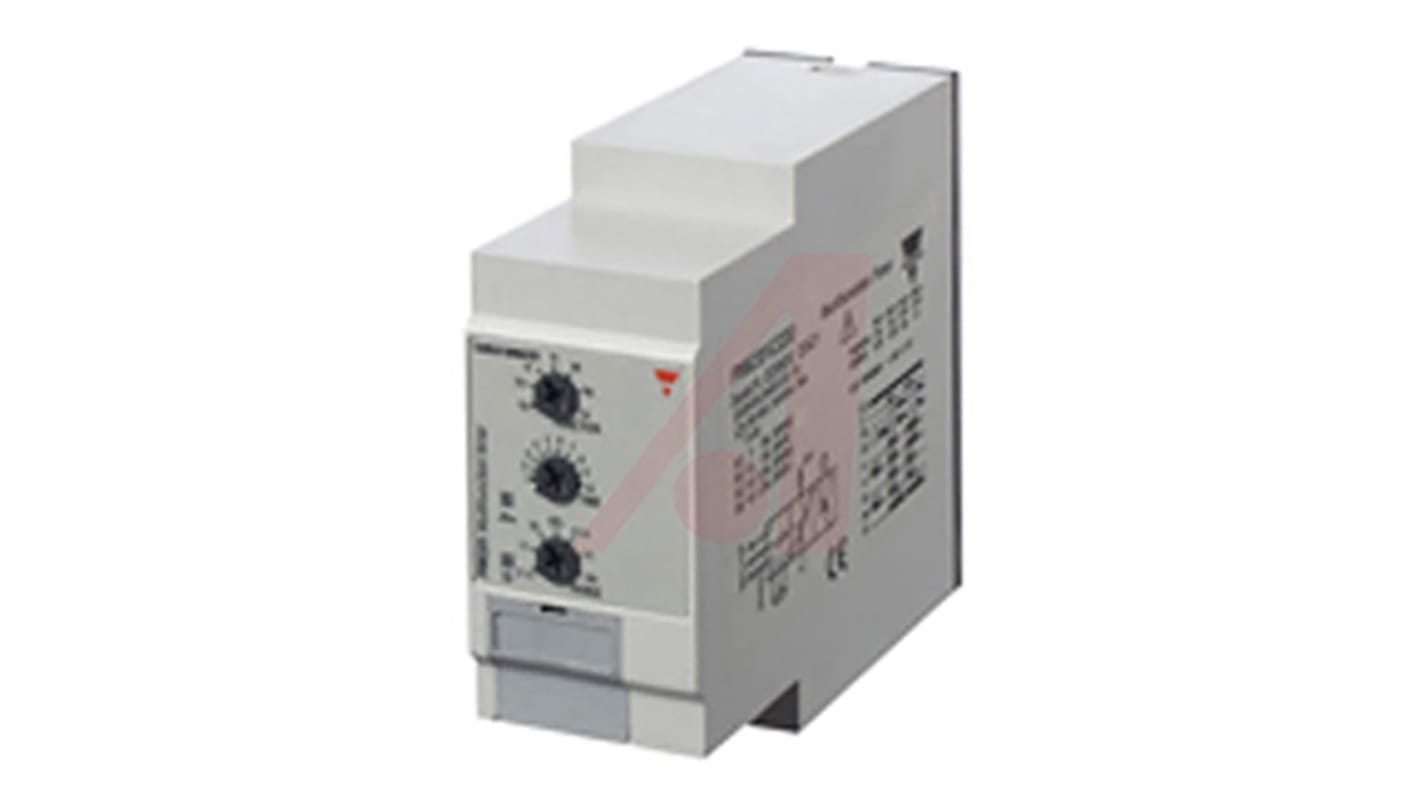

Carlo Gavazzi PMC01 Series DIN Rail Timer Relay, 2-Contact, 24 V dc, 0.1 s to 100 h, 7-Function, 2 SPDT Switch
- N° de stock RS:
- 857-7393
- Référence fabricant:
- PMC01D115
- Fabricant:
- Carlo Gavazzi
Sous-total (1 unité)*
116,68 €
(TVA exclue)
141,18 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- 3 unité(s) expédiée(s) à partir du 23 avril 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 116,68 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 857-7393
- Référence fabricant:
- PMC01D115
- Fabricant:
- Carlo Gavazzi
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Carlo Gavazzi | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Function | Multifunction | |
| Time Range | 0.1 s to 100 h | |
| Number of Contacts | 2 | |
| Switching Voltage | 250V ac | |
| Number of Timer Functions | 7 | |
| Contact Configuration | 2 SPDT | |
| IP Rating | IP20 | |
| Supply DC Voltage | 24 V dc | |
| Contact Current | 8A | |
| Minimum Operating Temperature | -20°C | |
| Timing Adjustment | Knob | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | Screw | |
| Length | 99.5mm | |
| Height | 80mm | |
| Standards/Approvals | EN 61812-1, EN 61000-6-2, IEC 60038, EN 61000-6-3, CE marking, UL, IEC 60664, CSA, IEC EN 60947 | |
| Series | PMC01 | |
| Sélectionner tout | ||
|---|---|---|
Marque Carlo Gavazzi | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Function Multifunction | ||
Time Range 0.1 s to 100 h | ||
Number of Contacts 2 | ||
Switching Voltage 250V ac | ||
Number of Timer Functions 7 | ||
Contact Configuration 2 SPDT | ||
IP Rating IP20 | ||
Supply DC Voltage 24 V dc | ||
Contact Current 8A | ||
Minimum Operating Temperature -20°C | ||
Timing Adjustment Knob | ||
Maximum Operating Temperature 60°C | ||
Terminal Type Screw | ||
Length 99.5mm | ||
Height 80mm | ||
Standards/Approvals EN 61812-1, EN 61000-6-2, IEC 60038, EN 61000-6-3, CE marking, UL, IEC 60664, CSA, IEC EN 60947 | ||
Series PMC01 | ||
Statut RoHS : Exempté
- Pays d'origine :
- IT
Carlo Gavazzi E-Mech Timer
Multi-function timers from Carlo Gavazzi provide the user with a knob-selectable timing solution which can be DIN rail mounted.
SPDT & DPDT contact configurations available
Wide power supply ranging from 24V to 240V AC/DC to ensure your application is covered
LED status indication available to provide details of relay status & power supply ON
Supports PNP/NPN and Namur sensors
Setup made simple thanks to knob selection of time range & setting
