Références fabricant

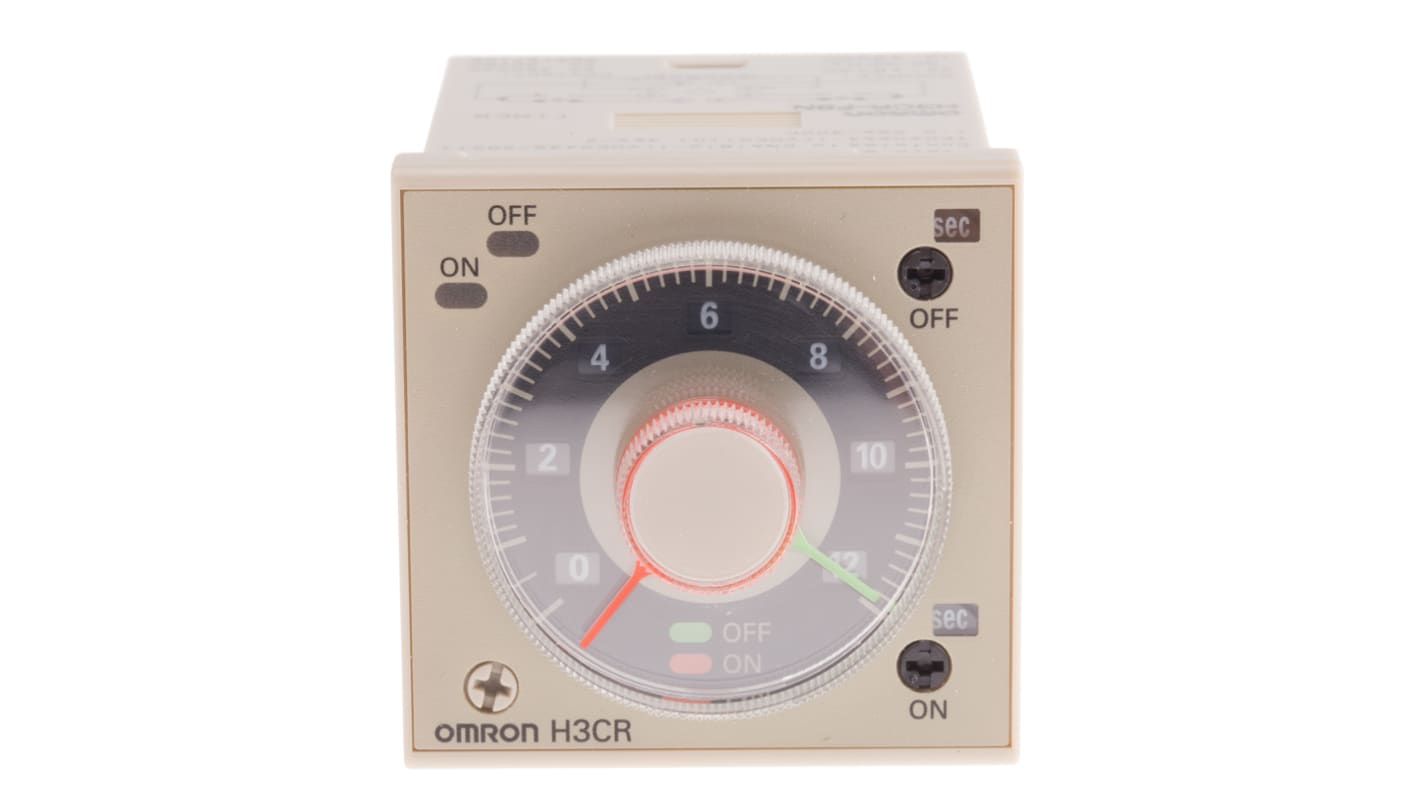

Omron H3CR Series DIN Rail Timer Relay, 2-Contact, 48 V dc 48 V ac, 24 V, 0.05 s to 300 h, Multifunction-Function, DPDT

N° de stock RS:: 808-8676
Référence fabricant:: H3CR-F8N AC24-48/DC12-48
Fabricant:: Omron

Omron H3CR Series DIN Rail Timer Relay, 2-Contact, 48 V dc 48 V ac, 24 V, 0.05 s to 300 h, Multifunction-Function, DPDT

Sous-total (1 unité)*

175,03 €

(TVA exclue)

211,79 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 75,00 €

Temporairement en rupture de stock

15 unité(s) expédiée(s) à partir du 14 avril 2026
Plus 5 unité(s) expédiée(s) à partir du 28 avril 2026
Plus 10 unité(s) expédiée(s) à partir du 19 mai 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	175,03 €

*Prix donné à titre indicatif

N° de stock RS:: 808-8676
Référence fabricant:: H3CR-F8N AC24-48/DC12-48
Fabricant:: Omron

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Omron
	Product Type	Timer Relay
	Mount Type	DIN Rail
	Time Range	0.05 s to 300 h
	Number of Contacts	2
	Number of Timer Functions	Multifunction
	Switching Voltage	24 V ac
	Contact Configuration	DPDT
	IP Rating	IP40
	Supply DC Voltage	48 V dc
	Contact Current	3A
	Supply AC Voltage	48 V ac, 24 V
	Minimum Operating Temperature	-10°C
	Terminal Type	8-Pin
	Maximum Operating Temperature	55°C
	Standards/Approvals	EN, CSA, UR
	Width	44.8 mm
	Height	53mm
	Length	48mm
	Series	H3CR

	Sélectionner tout
	Marque Omron
	Product Type Timer Relay
	Mount Type DIN Rail
	Time Range 0.05 s to 300 h
	Number of Contacts 2
	Number of Timer Functions Multifunction
	Switching Voltage 24 V ac
	Contact Configuration DPDT
	IP Rating IP40
	Supply DC Voltage 48 V dc
	Contact Current 3A
	Supply AC Voltage 48 V ac, 24 V
	Minimum Operating Temperature -10°C
	Terminal Type 8-Pin
	Maximum Operating Temperature 55°C
	Standards/Approvals EN, CSA, UR
	Width 44.8 mm
	Height 53mm
	Length 48mm
	Series H3CR

Statut RoHS : Exempté

Omron H3CR Series Timer Relay, DPDT Contact Configuration, 24 to 48V AC Supply Voltage - H3CR-F8N AC24-48/DC12-48

This timer relay serves as a versatile solution for automation control and time delay applications. Its compact size of 48x53mm enables easy integration into various environments. Operating with a supply voltage range of 24 to 48V AC, it offers a time range from 0.05 seconds to 300 hours, catering to diverse operational requirements while ensuring dependability in industrial settings.

Features & Benefits

• Multifunction capability accommodates various operational needs

• Flicker ON start mode provides precise timing control

• DPDT contact configuration allows for flexible circuit design

• Wide voltage range from 12V DC to 48V AC enhances adaptability

• Maximum operating temperature of +55°C ensures durability

• Designed for DIN rail mounting for simple installation

Applications

• Utilised in automation systems for timing functions

• Suitable for industrial processes needing time delay

• Implemented in HVAC systems for fan control

• Employed in machinery for sequential start-up procedures

• Ideal for electrical control panels in manufacturing

Will it fit on standard DIN rails?

Yes, it is specifically designed for DIN rail mounting.

Can it support multiple timing functions?

Yes, it has multifunction capability for various applications.

What is the minimum time range for operation?

The timer can operate with a minimum time of just 0.05 seconds.

Solid State Asymmetric Recycler

1/16 DIN solid state analogue setting asymmetric recycling timers with 8-pin octal style plug-in connections

Timing function 651, 652

12 setting ranges cover a wide span of 0.05s to 30h

Independent long or short ON/OFF time settings are possible

Wide power supply range 100 to 240Vac

Both OFF start and ON start functions available
