- N° de stock RS:
- 746-7047
- Référence fabricant:
- 1SVR740020R3100 CT-MVS.12P
- Fabricant:
- ABB
Voir l’ensemble des Timer Relays
2 En stock pour livraison sous 1 jour(s)
Prix Each
117,30 €
(TVA exclue)
141,93 €
(TVA incluse)
Unité | Prix par unité |
1 - 4 | 117,30 € |
5 + | 113,73 € |
- N° de stock RS:
- 746-7047
- Référence fabricant:
- 1SVR740020R3100 CT-MVS.12P
- Fabricant:
- ABB
Documentation technique
Législations et de normes
Détails du produit

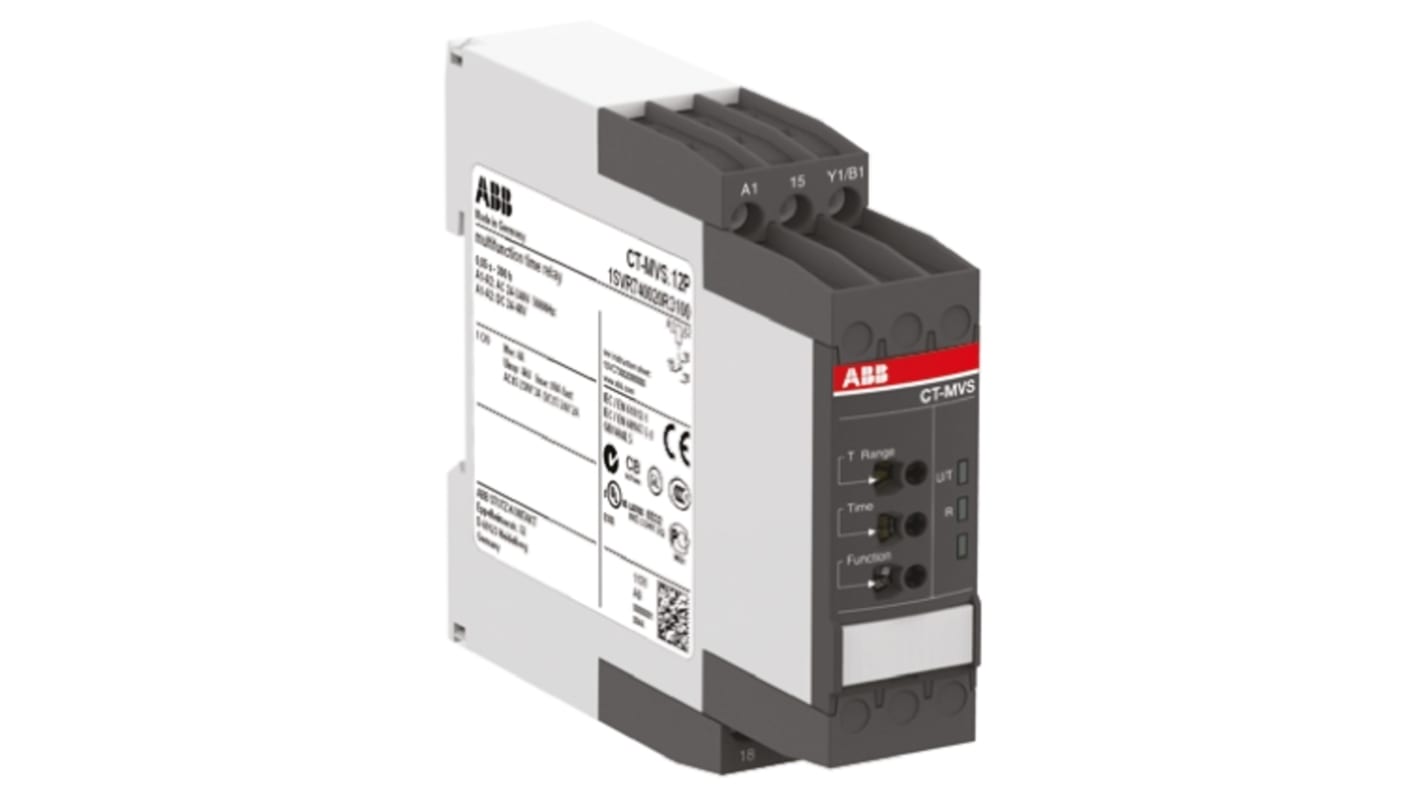

CT-MVS Series Multifunctional Timers
The CT-MVS Series is a set of multifunctional electronic timers from the CT-S range. They provide 5, 10 or 11 timing functions and 10 or 10 (x2) time ranges which are possible between all models within the series. All electronic timers from the CT-S range are available with two different terminal versions. You can choose between the proven screw connection technology (double - chamber cage connection terminals) and the completely tool - free Easy Connect Technology (push-in terminals). This is denoted by either a "P" or "S" at the end of the manufacturer's part number.
Timing functions: ON-delay, OFF-delay with auxiliary voltage, Impulse-ON, Impulse-OFF with auxiliary voltage, Symmetrical ON- and OFF-delay, Flasher starting with ON or OFF, Star-delta change-over with impulse, Pulse former, Accumulative ON-delay, ON/OFF-function
10 time ranges (0.05 s → 300 h)
Control input with voltage - related triggering to start timing, to stop/pause timing or to select timing function
Precise adjustment by front - face operating elements
Screw connection technology or Easy Connect Technology available
Enclosure material for highest fire protection classification
Tool free mounting and demounting on DIN - rail
2 C/O (SPDT) contacts
22.5 mm (0.89 in) width
3 LEDs for status indication
10 time ranges (0.05 s → 300 h)
Control input with voltage - related triggering to start timing, to stop/pause timing or to select timing function
Precise adjustment by front - face operating elements
Screw connection technology or Easy Connect Technology available
Enclosure material for highest fire protection classification
Tool free mounting and demounting on DIN - rail
2 C/O (SPDT) contacts
22.5 mm (0.89 in) width
3 LEDs for status indication
Spécifications
Attribut | Valeur |
---|---|
Supply Voltage | 24 → 240 V ac, 24 → 48V dc |
Mounting Type | DIN Rail |
Mode of Operation | Accumulative ON Delay, Flash Start with OFF, Flash Start with ON, Impulse OFF with Auxiliary Voltage, Impulse ON, OFF Delay with Auxiliary Voltage, ON Delay, Pulse Former, Symmetrical OFF Delay, Symmetrical ON Delay |
Time Range | 0.05 s → 300h |
Number of Contacts | 1 |
Number of Timer Functions | Multi Function |
Contact Configuration | SPDT |
Time Increment | Hours, Seconds |
Maximum Current | 4A |
Maximum Voltage | 300V ac |
Switch Configuration | SPDT |
Terminal Type | Push In |
Power Supply | External |
Width | 22.5mm |
Minimum Voltage | 12V |
Length | 85.6mm |
Depth | 113.4mm |
Minimum Current | 10mA |
Time Delay | (Recovery) <80ms |
Contact Material | Cadmium Free |
