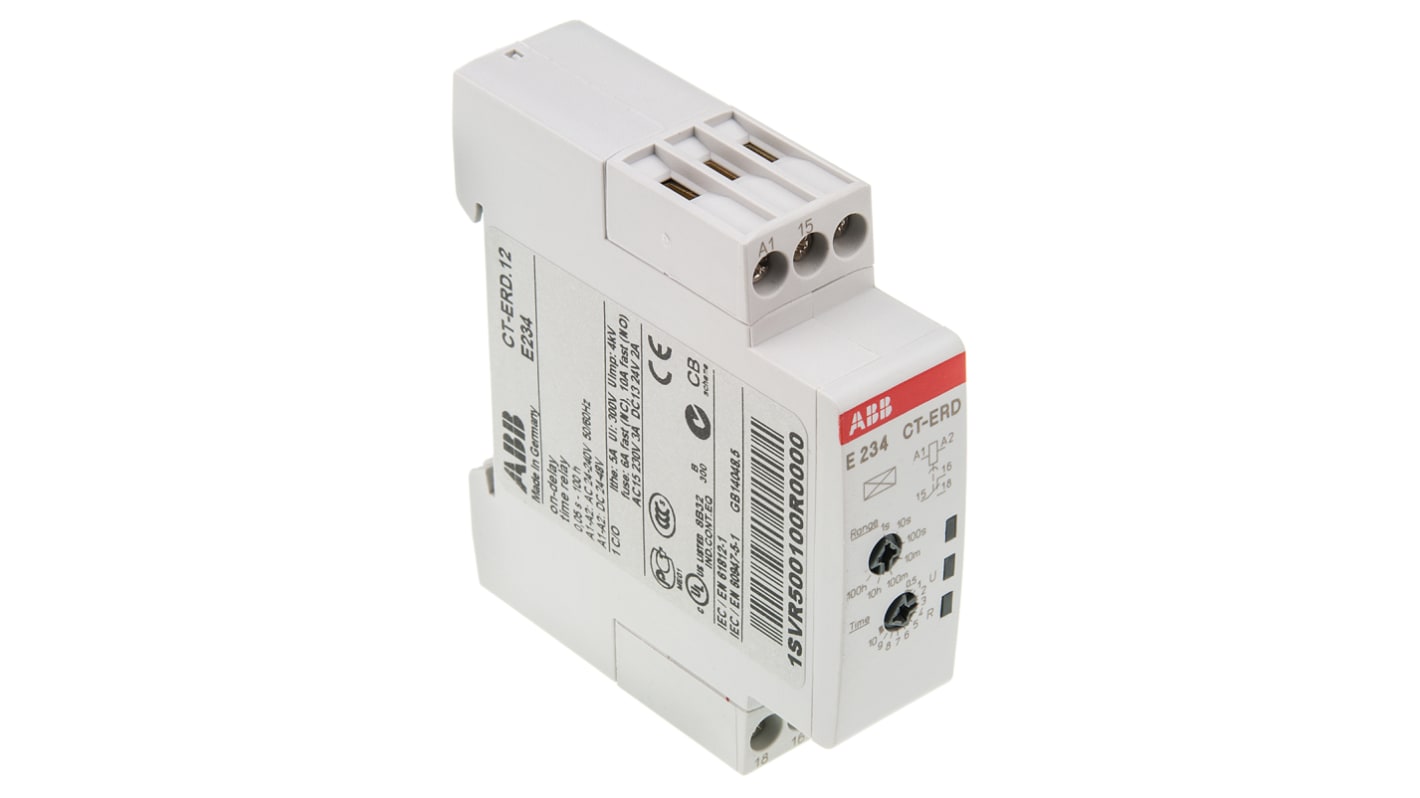

ABB 1SVR Series DIN Rail Mount Timer Relay, 24 → 240 V ac, 24 → 48V dc, 1-Contact, 0.05 s → 100h,

Voir l’ensemble des Timer Relays
Offre groupée disponible

Sous-total (1 unité)*

83,06 €

(TVA exclue)

100,50 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 19 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 - 483,06 €
5 +80,54 €

*Prix donné à titre indicatif

N° de stock RS:
489-7167
Référence fabricant:
1SVR500100R0000 CT-ERD.12
Fabricant:
ABB
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

ABB

Supply Voltage

24 → 240 V ac, 24 → 48V dc

Mounting Type

DIN Rail

Mode of Operation

ON Delay

Time Range

0.05 s → 100h

Number of Contacts

1

Number of Timer Functions

Single

Contact Configuration

SPDT

Time Increment

Hours, Seconds

Maximum Current

6A

Maximum Voltage

300V ac

Terminal Type

Screw

Switch Configuration

SPDT

Power Supply

External

Minimum Voltage

12V

Width

17.5mm

Maximum Operating Temperature

+60°C

Length

63mm

Depth

63mm

Minimum Current

100mA

Series

1SVR

Contact Material

Cadmium

Minimum Operating Temperature

-20°C

ABB 1SVR Series Timer Relay, 24 to 240V AC, 6A Maximum Current - 1SVR500100R0000 CT-ERD.12


This timer relay is designed to provide precise timing control in diverse applications. The ON-delay feature allows mechanisms to engage after a specified duration, enhancing automation processes. With a compact design measuring 17.5mm in width and 63mm in depth, this DIN rail-mounted device is suitable for numerous electrical and mechanical systems.

Features & Benefits


• Single-function timer relay provides reliable ON-delay operation
• Adjustable time range from 0.05 s to 100 h for versatility
• Operates on 24 to 240 V AC and 24 to 48 V DC to accommodate varied power sources
• Rated current capacity of 6 A for dependable performance
• Use of SPDT contacts ensures flexibility in circuit design
• Screw terminals facilitate easy installation and secure connections

Applications


• Used for automating machinery start-up sequences
• Ideal for controlling lighting and HVAC systems
• Suitable for timing operations in industrial automation
• Employed in process control for efficient system management
• Utilised in safety interlocks to prevent accidental activation

What power supply options can be utilised with this relay?


The device is compatible with power supplies ranging from 24 to 240 V AC as well as 24 to 48 V DC, providing flexibility in various installations.

How does the time range impact its functionality?


With the adjustable time range from 0.05 s to 100 h, it allows for precise timing adjustments suited for diverse operational requirements in automation processes.

What is the significance of SPDT contacts in this relay?


SPDT contacts enable the relay to switch between one circuit and another, offering flexibility in design and functionality for different applications.

What are the working temperature limits for safe operation?


This device operates effectively within a temperature range of -20 °C to +60 °C, making it suitable for a variety of environments.

What type of mounting is required for installation?


This timer relay is designed for DIN rail mounting, ensuring easy integration into standard electrical panels and systems.
