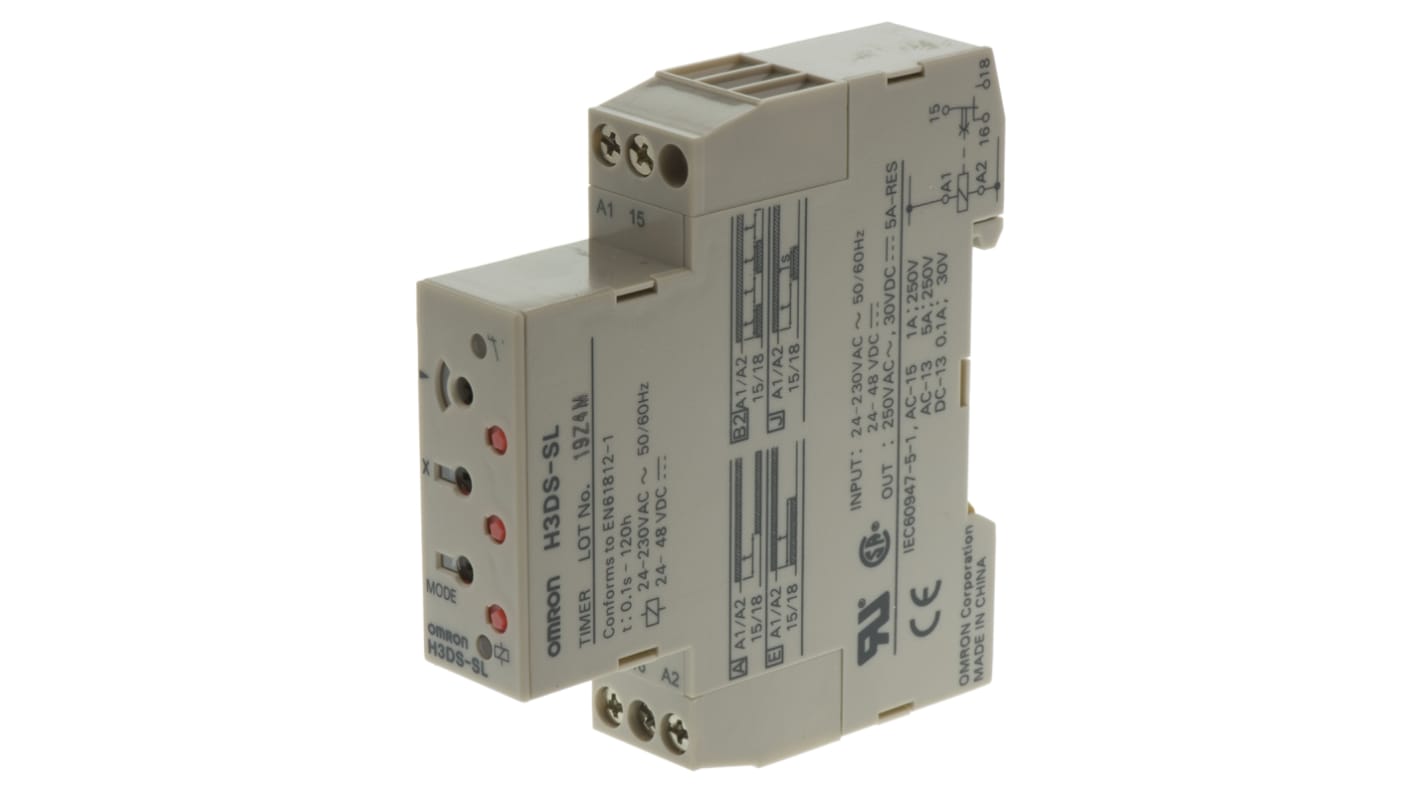

Omron H3DS Series DIN Rail Timer Relay, 1-Contact, 48 V dc 24/230 V ac, 0.1 s to 120 h, Multifunction-Function, SPDT
- N° de stock RS:
- 365-6993
- Référence fabricant:
- H3DS-SL AC/DC
- Fabricant:
- Omron
Offre groupée disponible
Sous-total (1 unité)*
61,00 €
(TVA exclue)
73,81 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- Plus 36 unité(s) expédiée(s) à partir du 23 mars 2026
- Plus 32 unité(s) expédiée(s) à partir du 07 avril 2026
- Plus 17 unité(s) expédiée(s) à partir du 28 avril 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 61,00 € |
| 5 + | 59,16 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 365-6993
- Référence fabricant:
- H3DS-SL AC/DC
- Fabricant:
- Omron
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Omron | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Time Range | 0.1 s to 120 h | |
| Number of Contacts | 1 | |
| Switching Voltage | 24 V | |
| Number of Timer Functions | Multifunction | |
| Contact Configuration | SPDT | |
| IP Rating | IP30 | |
| Supply DC Voltage | 48 V dc | |
| Contact Current | 5A | |
| Supply AC Voltage | 24/230 V ac | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Terminal Type | Screw | |
| Length | 80mm | |
| Standards/Approvals | EN, CSA, UR | |
| Height | 73mm | |
| Width | 17.5 mm | |
| Series | H3DS | |
| Sélectionner tout | ||
|---|---|---|
Marque Omron | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Time Range 0.1 s to 120 h | ||
Number of Contacts 1 | ||
Switching Voltage 24 V | ||
Number of Timer Functions Multifunction | ||
Contact Configuration SPDT | ||
IP Rating IP30 | ||
Supply DC Voltage 48 V dc | ||
Contact Current 5A | ||
Supply AC Voltage 24/230 V ac | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Terminal Type Screw | ||
Length 80mm | ||
Standards/Approvals EN, CSA, UR | ||
Height 73mm | ||
Width 17.5 mm | ||
Series H3DS | ||
Omron H3DS Series Timer Relay, SPDT Contact Configuration, 24 to 230V AC Supply Voltage - H3DS-SL AC/DC
The H3DS timer relay is a versatile component designed for a variety of automation and control uses. It operates within a supply voltage range of 24 to 230V AC and features multiple functions to address different timing requirements. With a compact size of 80x73mm, this device is perfect for installation on DIN rails in electrical panels.
Features & Benefits
• Flexible flicker ON start function for adaptable operation
• Interval operation for managing process delays
• ON delay settings for accurate timing
• Single pole double throw (SPDT) configuration for enhanced circuit control
• Time range from 0.1s to 120h suitable for various applications
Applications
• Integration with industrial automation systems
• Used in HVAC control
• Suitable for lighting control circuits
• Implemented in motor control operations
Can it operate within a 24V to 230V range?
Yes, it operates effectively between 24V and 230V AC.
Will it manage outputs with a maximum current of 5A?
Yes, it can handle up to 5A.
Is it suitable for DIN rail mounting?
Yes, it is designed for easy installation on DIN rails.
