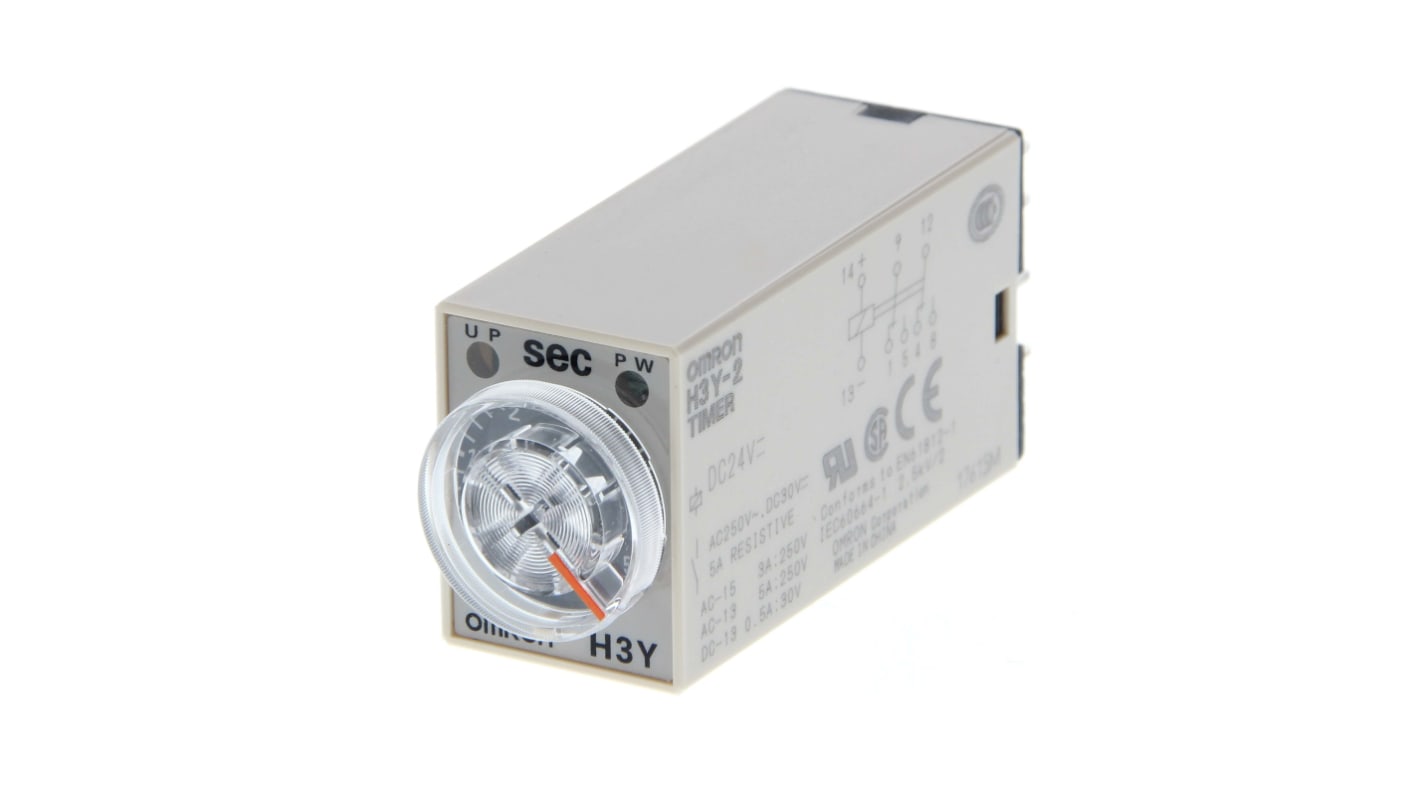

Name: Omron Timer Relay, 4-Contact, 200 to 230 V ac 200V ac, 230 V ac, 30 min, 1-Function, DPDT Switch Configuration
Brand: Omron
SKU: 264-1666
Price: 123.31 EUR
Availability: InStock

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Omron
	Product Type	Timer Relay
	Time Range	30 min
	Number of Contacts	4
	Number of Timer Functions	1
	Contact Configuration	DPDT
	IP Rating	IP40
	Supply AC Voltage	200, 230V ac
	Minimum Operating Temperature	-10°C
	Supply DC Voltage	200 to 230 V ac
	Terminal Type	Plug-In
	Maximum Operating Temperature	50°C
	Standards/Approvals	UL, CSA, EN 61812-1

	Sélectionner tout
	Marque Omron
	Product Type Timer Relay
	Time Range 30 min
	Number of Contacts 4
	Number of Timer Functions 1
	Contact Configuration DPDT
	IP Rating IP40
	Supply AC Voltage 200, 230V ac
	Minimum Operating Temperature -10°C
	Supply DC Voltage 200 to 230 V ac
	Terminal Type Plug-In
	Maximum Operating Temperature 50°C
	Standards/Approvals UL, CSA, EN 61812-1

Datasheet - H3Y-2 AC200-230 30M

Omron Timer Relay, 30min Time Range, DPDT Contact Configuration - H3Y-2 AC200-230 30M

This timer relay is a plug-in time delay device designed for control and sequencing tasks in industrial electrical systems. It operates from an AC supply and provides a single timing function to manage timed switching events. The unit is intended for panel- or equipment-mounted control applications where an intermediate IP protection rating and standardised approvals are required.

Features and Benefits:

• DPDT contact arrangement provides dual-circuit switching capability
• 200/230V AC supply enables use on common mains supplies
• 30min timing range allows extended delay intervals
• Four contact points increase circuit flexibility
• IP40 enclosure offers Basic protection in enclosed panels
• Rated for -10 to 50°C supports varied ambient conditions

Applications

• Suitable for delay control in conveyor sequencing systems
• Ideal for timed motor start-up and shutdown routines
• Used with industrial control panels for staged operations
• Can be used for timed signalling in electrical installations
• Used for automation tasks requiring dual-circuit switching

What types of approvals does it carry for electrical installations?

It meets recognised industry standards including UL, CSA and EN 61812-1, enabling its specification in systems requiring these certifications.

How is the unit connected into control circuitry?

The device uses a plug-in Terminal arrangement for straightforward insertion into compatible sockets or bases, simplifying replacement and service.

What contact performance can be expected for control circuits?

It provides two changeover contact sets, offering four switching points for controlling multiple circuits or interlocking functions.

How does the timing function support longer processes?

The single timer function offers a maximum time span of 30min, suitable for processes needing extended delays on mains-voltage control.

Omron Timer Relay, 4-Contact, 200 to 230 V ac 200V ac, 230 V ac, 30 min, 1-Function, DPDT Switch Configuration
