Omron DIN Rail Timer Relay, 4-Contact, 240 to 440 V ac 240V ac, 440 V ac, 1 to 120 s, 1-Function, DPDT Switch
- N° de stock RS:
- 264-1636
- Référence fabricant:
- H3DK-GE 240-440VAC
- Fabricant:
- Omron
Sous-total (1 unité)*
85,80 €
(TVA exclue)
103,82 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 4 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 85,80 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 264-1636
- Référence fabricant:
- H3DK-GE 240-440VAC
- Fabricant:
- Omron
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Omron | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Time Range | 1 to 120 s | |
| Number of Contacts | 4 | |
| Number of Timer Functions | 1 | |
| Contact Configuration | DPDT | |
| Supply AC Voltage | 240, 440V ac | |
| Minimum Operating Temperature | -20°C | |
| Supply DC Voltage | 240 to 440 V ac | |
| Contact Current | 5A | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | cURus (UL 508 CSA C22.2 No. 14), EN 50274, EN 61812-1, IEC 60664-1 4 kV/2 | |
| Sélectionner tout | ||
|---|---|---|
Marque Omron | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Time Range 1 to 120 s | ||
Number of Contacts 4 | ||
Number of Timer Functions 1 | ||
Contact Configuration DPDT | ||
Supply AC Voltage 240, 440V ac | ||
Minimum Operating Temperature -20°C | ||
Supply DC Voltage 240 to 440 V ac | ||
Contact Current 5A | ||
Terminal Type Screw | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals cURus (UL 508 CSA C22.2 No. 14), EN 50274, EN 61812-1, IEC 60664-1 4 kV/2 | ||

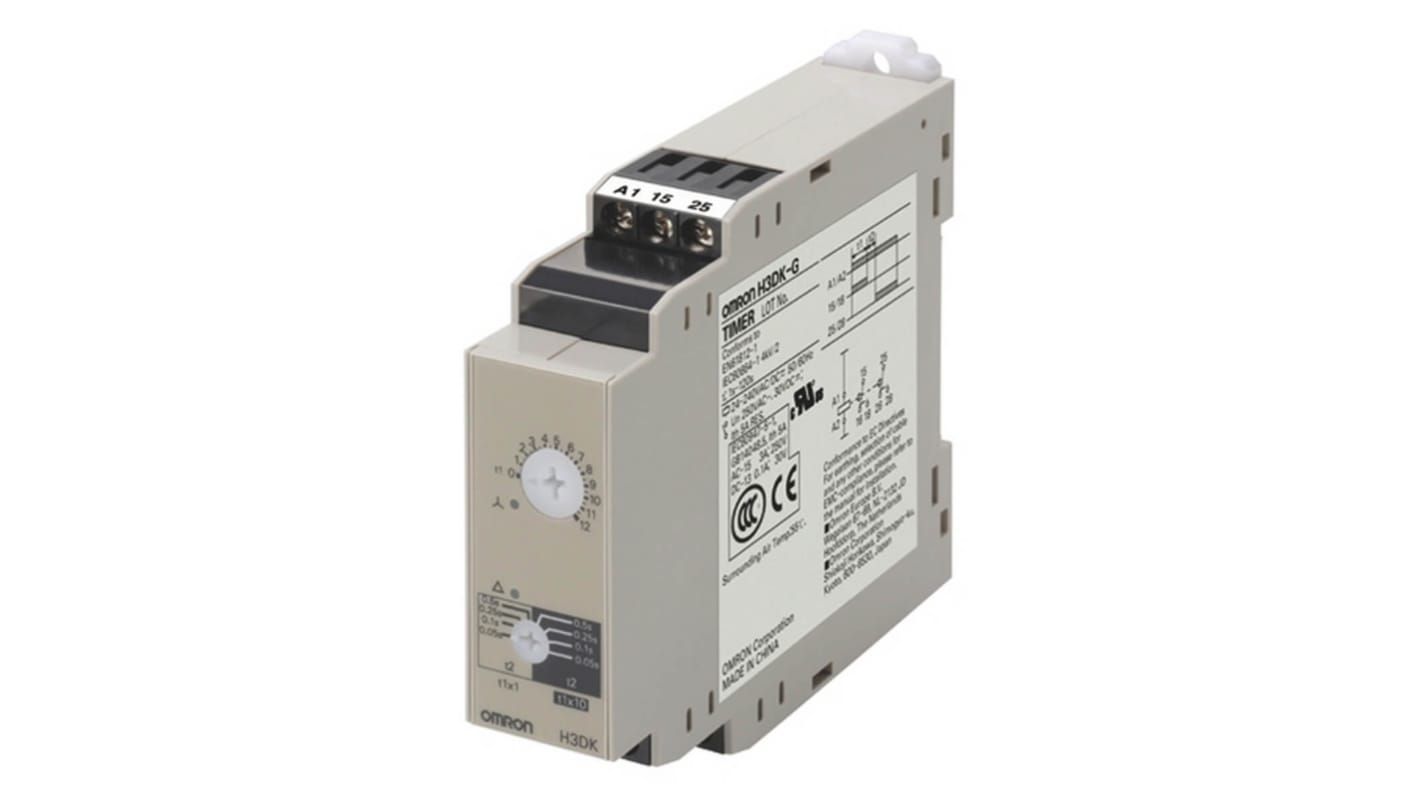

Omron Timer Relay, 240/440V Supply Voltage, 1 to 120s Time Range - H3DK-GE 240-440VAC
This timer relay provides time-delay control for industrial automation and electrical systems, operating from a high-voltage AC supply and mounted on standard DIN rail. It is designed to control switching sequences in machinery and process equipment where adjustable delay timing is required, and connects via screw terminals for fixed wiring in control panels.
Features and Benefits:
• DPDT contact arrangement enabling dual-circuit switching capability
• 5A contact rating suitable for moderate load switching
• Time span adjustable from 1 to 120 s for flexible delay settings
• DIN rail mounting for straightforward panel integration
• Screw Terminal connections for secure, maintenance-friendly wiring
• Rated for operation between -20°C and 55°C to suit varied environments
• 5A contact rating suitable for moderate load switching
• Time span adjustable from 1 to 120 s for flexible delay settings
• DIN rail mounting for straightforward panel integration
• Screw Terminal connections for secure, maintenance-friendly wiring
• Rated for operation between -20°C and 55°C to suit varied environments
Applications
• Suitable for timing interlocks in production machinery control panels
• Ideal for staged motor starting in conveyor and drive systems
• Used with safety and signalling circuits requiring delayed switching
• Can be used for sequence timing in building services automation
• Suitable for replacing time-delay relays in retrofit control systems
• Ideal for staged motor starting in conveyor and drive systems
• Used with safety and signalling circuits requiring delayed switching
• Can be used for sequence timing in building services automation
• Suitable for replacing time-delay relays in retrofit control systems
What contact configuration does it provide for circuit control?
It uses a double-pole double-throw configuration, allowing two independent circuits to be switched simultaneously.
How is the device fixed inside an electrical enclosure?
It is designed for DIN rail installation, enabling Rapid Snap-on mounting and removal without additional brackets.
What Terminal type is provided for field wiring?
Termination is via screw-type terminals that provide firm conductor retention for repeated installations.
What standards relate to its electrical clearance performance?
It complies with IEC requirements for reinforced insulation clearances rated to the specified test level for surge withstand.
