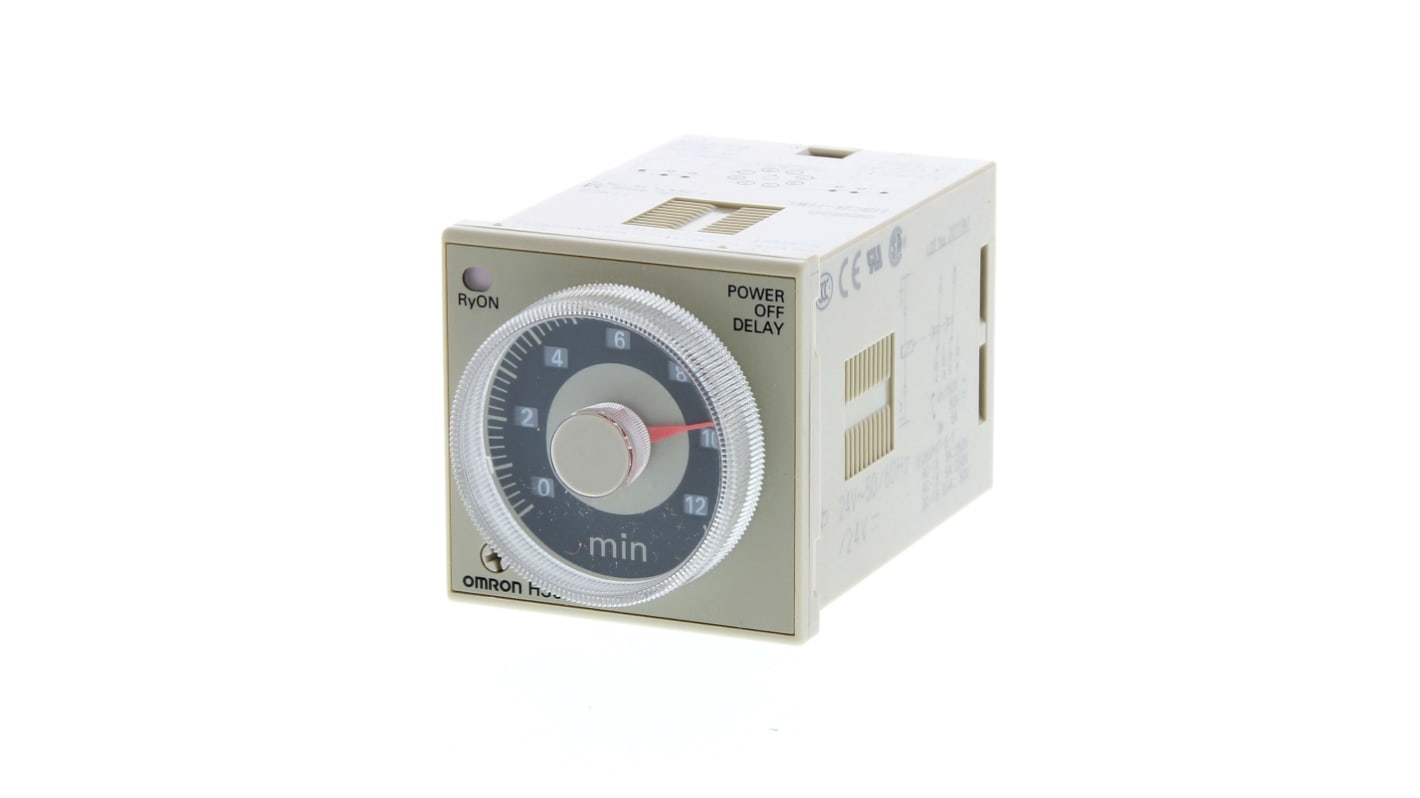

Name: Omron Timer Relay, 2-Contact, 100 to 120 V ac 100V ac, 120 V ac, 0.05 to 12 min, DPDT Switch Configuration
Brand: Omron
SKU: 264-1630
Price: 183.32 EUR
Availability: BackOrder

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Omron
	Product Type	Timer Relay
	Time Range	0.05 to 12 min
	Number of Contacts	2
	Contact Configuration	DPDT
	IP Rating	IP40
	Supply AC Voltage	100, 120V ac
	Supply DC Voltage	100 to 120 V ac
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	55°C
	Terminal Type	Plug-In
	Standards/Approvals	CE, NK, CSA, UL, LR, EN 61812-1, CCC

	Sélectionner tout
	Marque Omron
	Product Type Timer Relay
	Time Range 0.05 to 12 min
	Number of Contacts 2
	Contact Configuration DPDT
	IP Rating IP40
	Supply AC Voltage 100, 120V ac
	Supply DC Voltage 100 to 120 V ac
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 55°C
	Terminal Type Plug-In
	Standards/Approvals CE, NK, CSA, UL, LR, EN 61812-1, CCC

Datasheet - H3CR-H8L 100-120VAC M

Omron Timer Relay, 0.05 to 12min Time Range, 100/120V AC Supply Voltage - H3CR-H8L 100-120VAC M

This timer relay provides precise time-delay control for industrial automation and control systems, operating on an alternating supply and designed for plug‑in mounting. It supports time settings intended for short to medium delays and is suitable for environments where standard ingress protection and recognised safety approvals are required. The unit includes a pair of changeover contacts to integrate with control circuits and operates across a conventional AC control voltage range.

Features and Benefits:

• Dual changeover contacts for switching two circuits simultaneously
• Operates from 100/120V AC to match common control supplies
• Time adjustment spanning 0.05–12 min for flexible delay selection
• Plug‑in terminals for Rapid installation and replacement
• Rated to operate between −10 °C and 55 °C for varied site conditions
• IP40 enclosure rating allowing protected indoor use

Applications

• Suitable for sequencing motors in factory automation panels
• Ideal for timed control of conveyor zone stages
• Used for delay interlocks within electrical control cabinets
• Can be used for timed actuator control in mechanical systems
• Used with relay logic for process timing in assembly lines

How many switching points are available for control logic?

It provides two independently switching changeover contacts to manage separate circuits or dual‑stage functions.

Which wiring style is required for panel integration?

The unit uses a plug‑in Terminal format that mates with corresponding sockets for straightforward wiring and servicing.

What approvals ensure conformity with industry safety standards?

It carries multiple recognised approvals, including CE, UL, CSA and others relevant to industrial use.

Can this device operate in chilled environments or high ambient heat?

Yes, it is specified to operate reliably down to −10 °C and up to 55 °C, covering many non‑extreme site conditions.

Omron Timer Relay, 2-Contact, 100 to 120 V ac 100V ac, 120 V ac, 0.05 to 12 min, DPDT Switch Configuration
