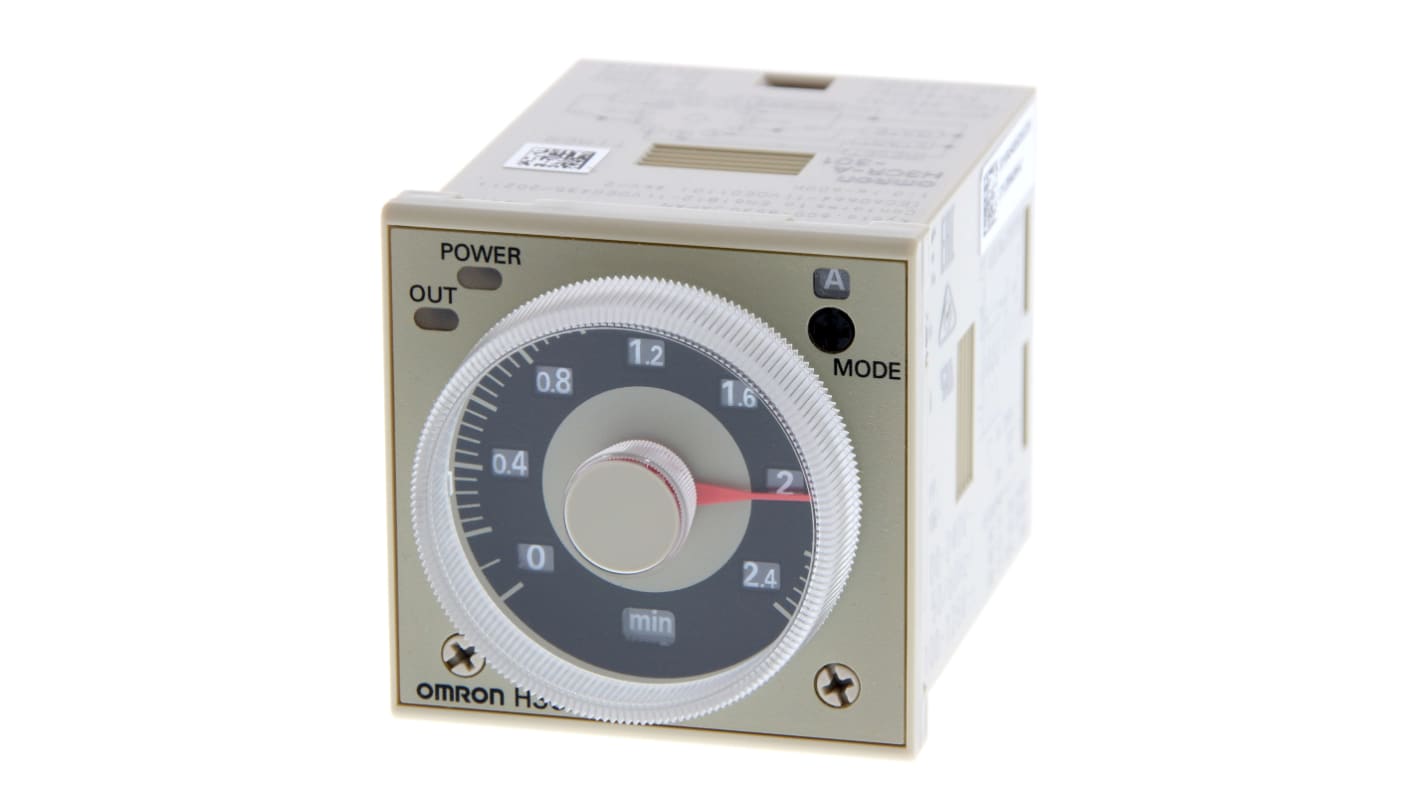

Name: Omron H3CR Series Timer Relay, 2-Contact, 12 to 48 V ac/dc 12V ac, 48 V ac, 0.1 to 2160000 s, DPDT Switch Configuration
Brand: Omron
SKU: 264-1623
Price: 202.99 EUR
Availability: InStock

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Omron
	Product Type	Timer Relay
	Function	Multifunction
	Time Range	0.1 to 2160000 s
	Number of Contacts	2
	Contact Configuration	DPDT
	IP Rating	IP40
	Supply DC Voltage	12 to 48 V ac/dc
	Contact Current	5A
	Minimum Operating Temperature	-10°C
	Supply AC Voltage	12, 48V ac
	Maximum Operating Temperature	55°C
	Terminal Type	Plug-In
	Standards/Approvals	EN 61812-1, CE, CCC, NK, LR, CSA, UL
	Series	H3CR

	Sélectionner tout
	Marque Omron
	Product Type Timer Relay
	Function Multifunction
	Time Range 0.1 to 2160000 s
	Number of Contacts 2
	Contact Configuration DPDT
	IP Rating IP40
	Supply DC Voltage 12 to 48 V ac/dc
	Contact Current 5A
	Minimum Operating Temperature -10°C
	Supply AC Voltage 12, 48V ac
	Maximum Operating Temperature 55°C
	Terminal Type Plug-In
	Standards/Approvals EN 61812-1, CE, CCC, NK, LR, CSA, UL
	Series H3CR

Datasheet - H3CR-A8-301 24-48AC/12-48DC

Omron H3CR Series Timer Relay, 0.1 to 2160000s Time Range, DPDT Contact Configuration - H3CR-A8-301 24-48AC/12-48DC

This timer relay is a multifunction timing device designed for control and automation duties in industrial electrical systems. It provides selectable timing functions and a plug-in Terminal format for straightforward installation in control panels and relay sockets. The unit is intended for use where compact, configurable timing control is required across AC and DC supply environments.

Features and Benefits:

• DPDT contact arrangement enables independent dual-circuit switching
• 5A contact rating supports moderate load switching requirements
• Wide supply voltage compatibility covers 12–48V AC/DC
• Extensive timing span from 0.1–2,160,000 s covers short to long intervals
• IP40 enclosure rating suits protected indoor panel installation
• Operational temperature range from -10 to 55°C maintains performance

Applications

• Suitable for sequencing controls in automation systems
• Ideal for delay functions in industrial machinery control panels
• Used with electrically driven valves requiring timed actuation
• Can be used for lighting control in plant operational routines
• Suitable for replacement in existing plug-in timer installations

How many switching circuits can it control simultaneously?

It provides two independent contact sets allowing control of two circuits via the DPDT arrangement.

Which approvals indicate suitability for industrial installations?

The device meets multiple standards and approvals including EN 61812-1, CE, CCC, NK, LR, CSA and UL.

What Terminal connection style does it use for panel integration?

It employs a plug-in Terminal configuration designed for compatibility with relay sockets.

Can it operate reliably across fluctuating supply types?

Yes, the timer accepts both AC and DC inputs within the specified 12–48V range to accommodate mixed supply systems.

Omron H3CR Series Timer Relay, 2-Contact, 12 to 48 V ac/dc 12V ac, 48 V ac, 0.1 to 2160000 s, DPDT Switch Configuration
