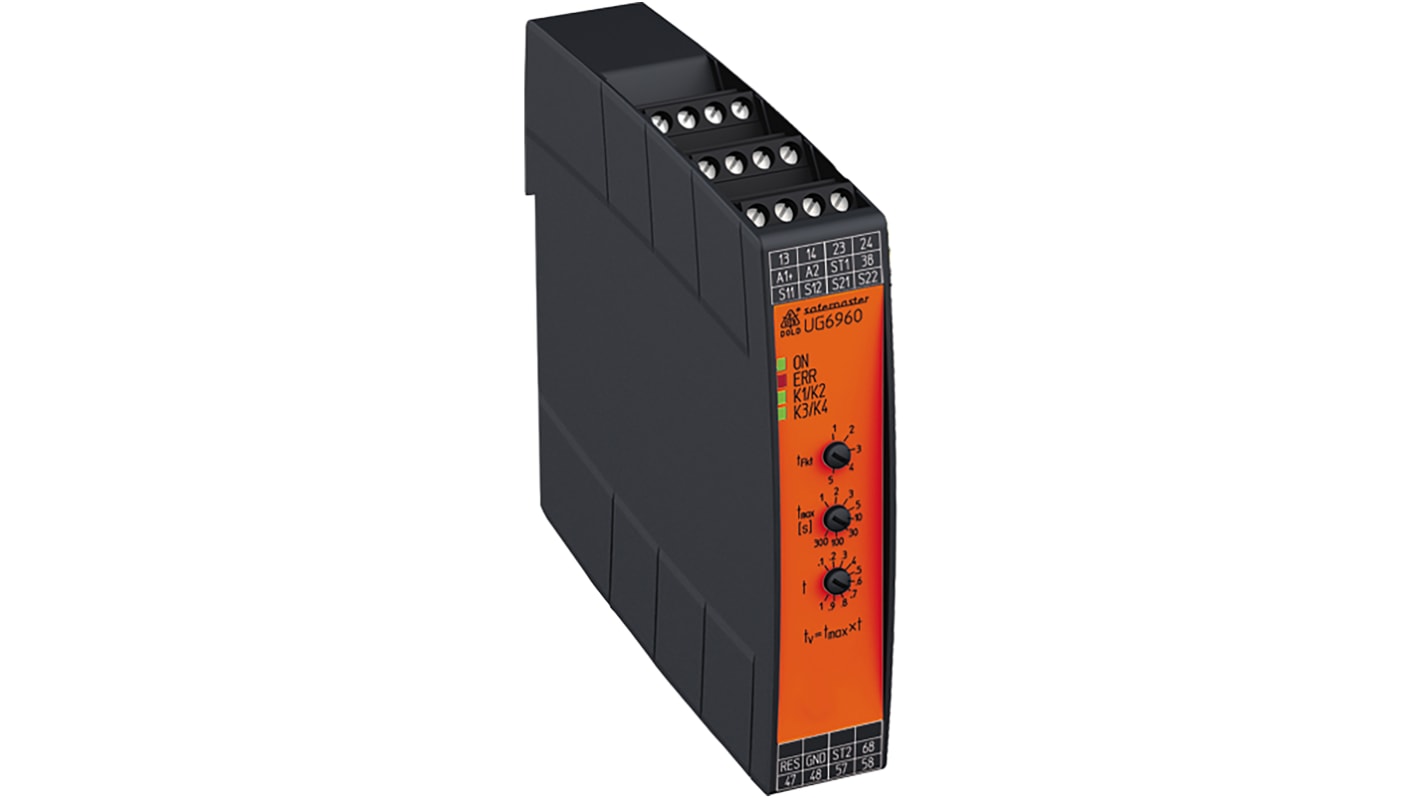

Dold UG6960 Series DIN Rail Timer Relay, 4-Contact, 24 V dc, 300 s, 5-Function, DPST Switch Configuration
- N° de stock RS:
- 181-2777
- Référence fabricant:
- UG6960.04PS/100/61 DC24V 300s
- Fabricant:
- Dold
Sous-total (1 unité)*
515,14 €
(TVA exclue)
623,32 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 3 unité(s) expédiée(s) à partir du 19 octobre 2026
- Plus 3 unité(s) expédiée(s) à partir du 02 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 515,14 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 181-2777
- Référence fabricant:
- UG6960.04PS/100/61 DC24V 300s
- Fabricant:
- Dold
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Dold | |
| Product Type | Timer Relay | |
| Function | Stillson Pipe | |
| Mount Type | DIN Rail | |
| Time Range | 300 s | |
| Number of Contacts | 4 | |
| Switching Voltage | 230V ac | |
| Number of Timer Functions | 5 | |
| Contact Configuration | DPST | |
| IP Rating | IP40, IP20 | |
| Minimum Operating Temperature | -25°C | |
| Supply DC Voltage | 24 V dc | |
| Contact Current | 8A | |
| Maximum Operating Temperature | +55°C | |
| Terminal Type | Screw | |
| Mode | Continuous Operation | |
| Width | 120.3mm | |
| Standards/Approvals | IEC/EN 60947-5-1, IEC/EN 61326-3-1, EN 50005, UL508, EN 55011, IEC/EN 60068-2-6, IEC/EN 60715, EN ISO 13849-1, EN 50156-1, IEC/EN 61508, IEC/EN 61511, IEC/EN 62061, IEC/EN 60068-1, IEC/EN 60529 | |
| Length | 22.5mm | |
| Height | 110mm | |
| Series | UG6960 | |
| Sélectionner tout | ||
|---|---|---|
Marque Dold | ||
Product Type Timer Relay | ||
Function Stillson Pipe | ||
Mount Type DIN Rail | ||
Time Range 300 s | ||
Number of Contacts 4 | ||
Switching Voltage 230V ac | ||
Number of Timer Functions 5 | ||
Contact Configuration DPST | ||
IP Rating IP40, IP20 | ||
Minimum Operating Temperature -25°C | ||
Supply DC Voltage 24 V dc | ||
Contact Current 8A | ||
Maximum Operating Temperature +55°C | ||
Terminal Type Screw | ||
Mode Continuous Operation | ||
Width 120.3mm | ||
Standards/Approvals IEC/EN 60947-5-1, IEC/EN 61326-3-1, EN 50005, UL508, EN 55011, IEC/EN 60068-2-6, IEC/EN 60715, EN ISO 13849-1, EN 50156-1, IEC/EN 61508, IEC/EN 61511, IEC/EN 62061, IEC/EN 60068-1, IEC/EN 60529 | ||
Length 22.5mm | ||
Height 110mm | ||
Series UG6960 | ||
- Pays d'origine :
- DE
Line fault detection on On-button:
Manual restart or automatic restart
With or without cross fault monitoring
2-channel
Forcibly guided output contacts
Output: 2 NO instantaneous contact and 2 NO contacts delayed
1 semiconductor output for instantaneous contacts
1 semiconductor output for delayed contacts
LED indicator for operation, safety function, time delay and failure
As option with pluggable terminal blocks for easy exchange of devices
with screw terminals
or with cage clamp terminals
Width: 22.5 mm
Advantages / Customer benefit
Various delay functions adjustable at device:
Release delay
Release delay retrigger able
On delay
Fleeting on make / break
Delay function settable via potentiometer
Various safety functions defined:
E-Stop
Safety gate
Two-hand control
Safety mat / Safety edge
Exclusive or contacts
Light curtain
Manual or auto start
Instantaneous contact and safety delayed contacts
Protection against manipulation by seal able transparent cover
