RS PRO Timer Relay, 8-Contact, 12 to 250 V dc 12V ac, 240 V ac, 0.1 s to 10 Days, 1-Function, DPDT Switch Configuration
- N° de stock RS:
- 178-5023
- Fabricant:
- RS PRO
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
133,35 €
(TVA exclue)
161,35 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 1 unité(s) prête(s) à être expédiée(s)
- Plus 2 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 133,35 € |
| 5 - 9 | 128,03 € |
| 10 + | 122,69 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 178-5023
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Product Type | Timer Relay | |
| Function | Transducer | |
| Time Range | 0.1 s to 10 Days | |
| Number of Contacts | 8 | |
| Number of Timer Functions | 1 | |
| Switching Voltage | 250V ac | |
| Contact Configuration | DPDT | |
| Supply DC Voltage | 12 to 250 V dc | |
| Contact Current | 8A | |
| Minimum Operating Temperature | -20°C | |
| Supply AC Voltage | 12V ac, 240V ac | |
| Maximum Operating Temperature | 65°C | |
| Mode | Other | |
| Terminal Type | 8-Pin | |
| Length | 48mm | |
| Standards/Approvals | CE, EN61000-6-4, RoHS, EN61010-1, EN61000-6-2 | |
| Height | 74mm | |
| Width | 24mm | |
| Series | RS PRO | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Product Type Timer Relay | ||
Function Transducer | ||
Time Range 0.1 s to 10 Days | ||
Number of Contacts 8 | ||
Number of Timer Functions 1 | ||
Switching Voltage 250V ac | ||
Contact Configuration DPDT | ||
Supply DC Voltage 12 to 250 V dc | ||
Contact Current 8A | ||
Minimum Operating Temperature -20°C | ||
Supply AC Voltage 12V ac, 240V ac | ||
Maximum Operating Temperature 65°C | ||
Mode Other | ||
Terminal Type 8-Pin | ||
Length 48mm | ||
Standards/Approvals CE, EN61000-6-4, RoHS, EN61010-1, EN61000-6-2 | ||
Height 74mm | ||
Width 24mm | ||
Series RS PRO | ||
- Pays d'origine :
- GB

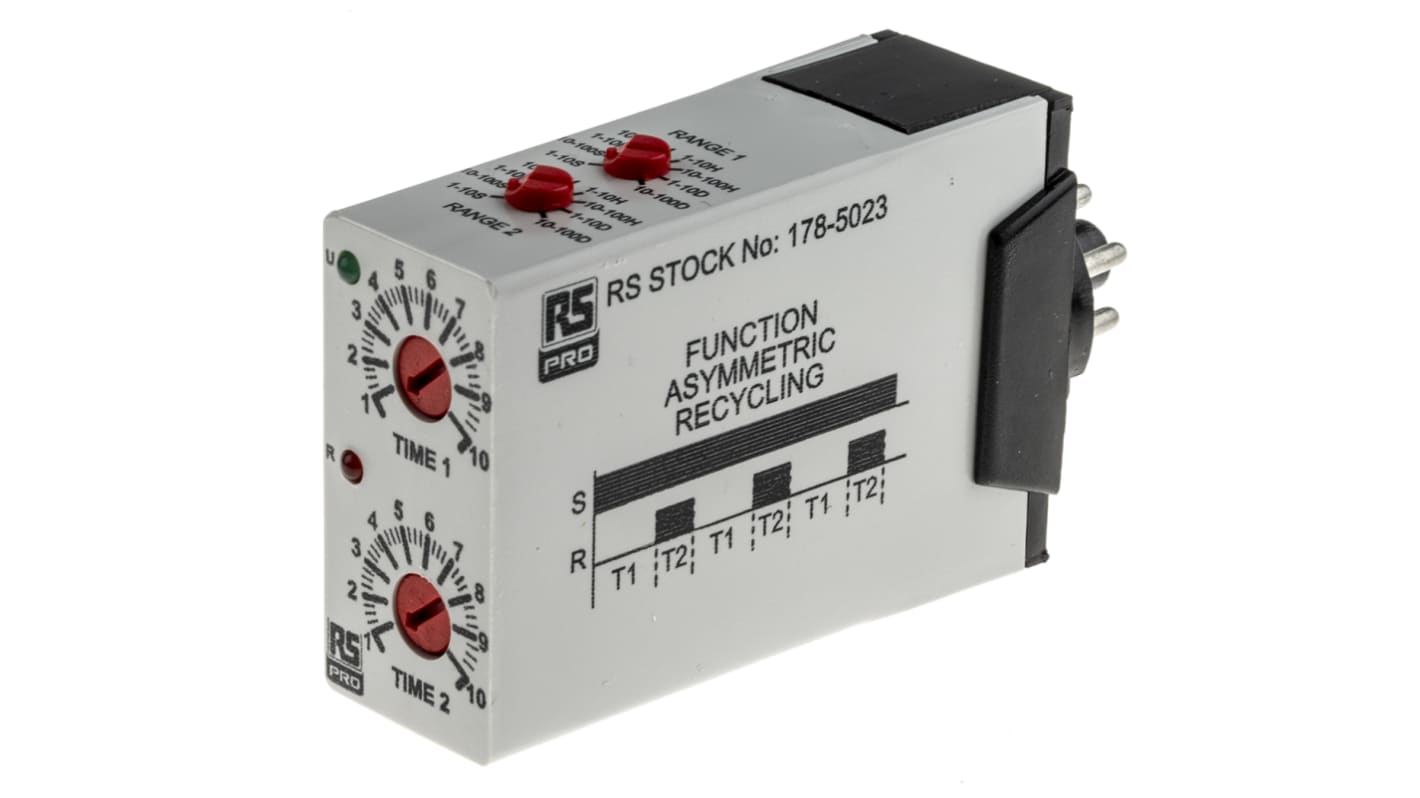

An 8 pin plug in DPCO asymmetrical cyclic timer. A selector switch is provided to select eight different time ranges from 1 sec to 100 days independently on both T1 & T2, fine time selection on a selected range is then achieved via the two percentage potentiometers. A green supply on LED is featured along with a red LED to indicate relay output status. All pin details and the function information is clearly marked on the sides of the housing. The timing is initiated by supply on pins 2 & 7. Timing commences to energise relay contacts “pause first” and then times to de-energise relay contacts. This cycle continues so long as the supply is connected. The time period on both energisation and de-energisation (T1 & T2) are independently selectable. If the supply is removed at any point within the cycle any remaining time will be cancelled and if the relay contacts are energised they will de-energise.
8 pin plug in
DPCO
Multi voltage 12-250VAC/DC
Multi time range 1 sec to 100 days
T1 & T2 separately adjustable
Dual LED indication
