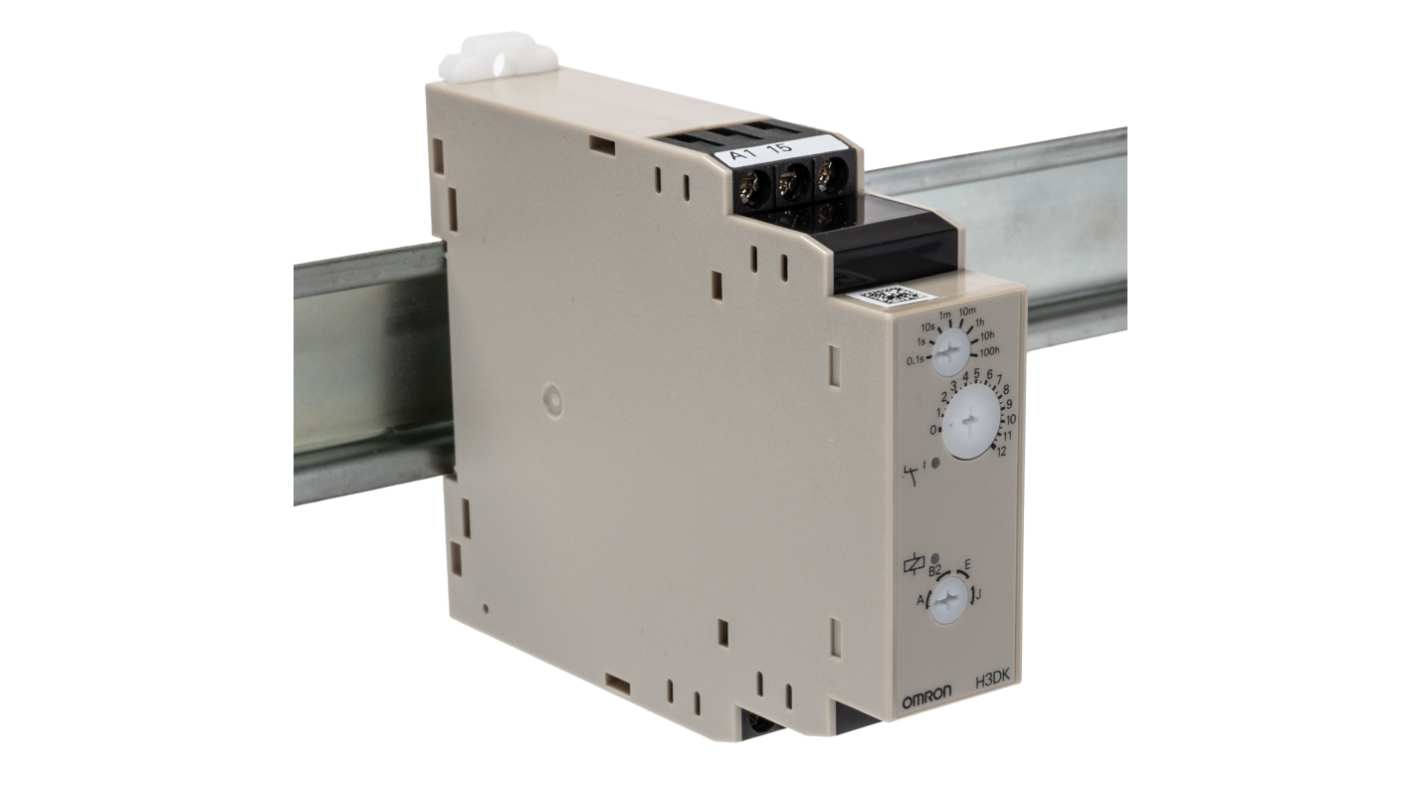

Omron H3DK Series DIN Rail Timer Relay, 1-Contact, 12 to to 240 V dc 12V ac, 0.1 s to 1200 h, Multifunction-Function,
- N° de stock RS:
- 177-0078
- Référence fabricant:
- H3DK-S1A DC12
- Fabricant:
- Omron
Sous-total (1 unité)*
51,72 €
(TVA exclue)
62,58 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 13 unité(s) expédiée(s) à partir du 03 juin 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 51,72 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 177-0078
- Référence fabricant:
- H3DK-S1A DC12
- Fabricant:
- Omron
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Omron | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Function | Timer | |
| Time Range | 0.1 s to 1200 h | |
| Number of Contacts | 1 | |
| Switching Voltage | 250V ac | |
| Number of Timer Functions | Multifunction | |
| Contact Configuration | SPDT | |
| IP Rating | IP20, IP30 | |
| Supply AC Voltage | 12V ac | |
| Supply DC Voltage | 12 to to 240 V dc | |
| Contact Current | 5A | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 55°C | |
| Terminal Type | Screw | |
| Length | 22.5mm | |
| Standards/Approvals | EN 50274, EN 61812-1, cURus (UL 508,CSA C22.2 No. 14), CCC, CE, LR, IEC 60664-1 4 kV/2 | |
| Width | 79mm | |
| Height | 100mm | |
| Series | H3DK | |
| Sélectionner tout | ||
|---|---|---|
Marque Omron | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Function Timer | ||
Time Range 0.1 s to 1200 h | ||
Number of Contacts 1 | ||
Switching Voltage 250V ac | ||
Number of Timer Functions Multifunction | ||
Contact Configuration SPDT | ||
IP Rating IP20, IP30 | ||
Supply AC Voltage 12V ac | ||
Supply DC Voltage 12 to to 240 V dc | ||
Contact Current 5A | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 55°C | ||
Terminal Type Screw | ||
Length 22.5mm | ||
Standards/Approvals EN 50274, EN 61812-1, cURus (UL 508,CSA C22.2 No. 14), CCC, CE, LR, IEC 60664-1 4 kV/2 | ||
Width 79mm | ||
Height 100mm | ||
Series H3DK | ||
Omron H3DK Series Timer Relay, 12V DC Supply Voltage, SPDT Contact Configuration - H3DK-S1A DC12
This timer relay plays an important role in automation and control systems by providing precise timing functions crucial for industrial applications. It features a one-shot mode, allowing timed activation of connected devices. Its advanced functionality and ease of integration make it a vital component in various electrical and mechanical systems.
Features & Benefits
• Operates on a 12V DC supply for diverse Applications
• Provides a time range from 0.1s to 1200h
• Includes multi-function capabilities for added versatility
• Screw terminal connections for straight installation
• Supports SPDT configuration for consistent switching
Applications
• Suitable for automatic lighting control systems
• Ideal for delay circuits in industrial machinery
• Utilised for timed operations in HVAC equipment
• Employed in conveyor belt systems for process automation
How does the timer manage different time settings?
It allows for both short (0.1s) and long durations (up to 1200h).
What type of connections does it use for setup?
The setup is facilitated through screw terminal connections, ensuring secure wiring.
