Schneider Electric Harmony Series Panel Mount Timer Relay, 24V dc, 0.5 → 10s, 1-Function

Voir l’ensemble des Timer Relays
Offre groupée disponible

Sous-total (1 unité)*

74,08 €

(TVA exclue)

89,64 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 34 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
  • Plus 10 unité(s) expédiée(s) à partir du 03 février 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 - 974,08 €
10 +62,97 €

*Prix donné à titre indicatif

Better World

Notre gamme de produits Better World vous facilite l'accès à des produits plus durables et plus fiables. Cliquez ici pour en savoir plus.

N° de stock RS:
134-5386
Numéro d'article Distrelec:
303-97-053
Référence fabricant:
XB5DTB22
Fabricant:
Schneider Electric
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Schneider Electric

Supply Voltage

24V dc

Mounting Type

Panel Mount

Time Range

0.5 → 10s

Number of Timer Functions

Single

Maximum Current

10A

Maximum Voltage

24V dc

Terminal Type

Screw

Minimum Voltage

24V

Power Supply

External

Maximum Operating Temperature

+60°C

Length

62mm

Better World Product

Yes

Series

Harmony

Better World Verification

Green Premium

Minimum Current

0.01A

Minimum Operating Temperature

-20°C

Time Delay

5ms

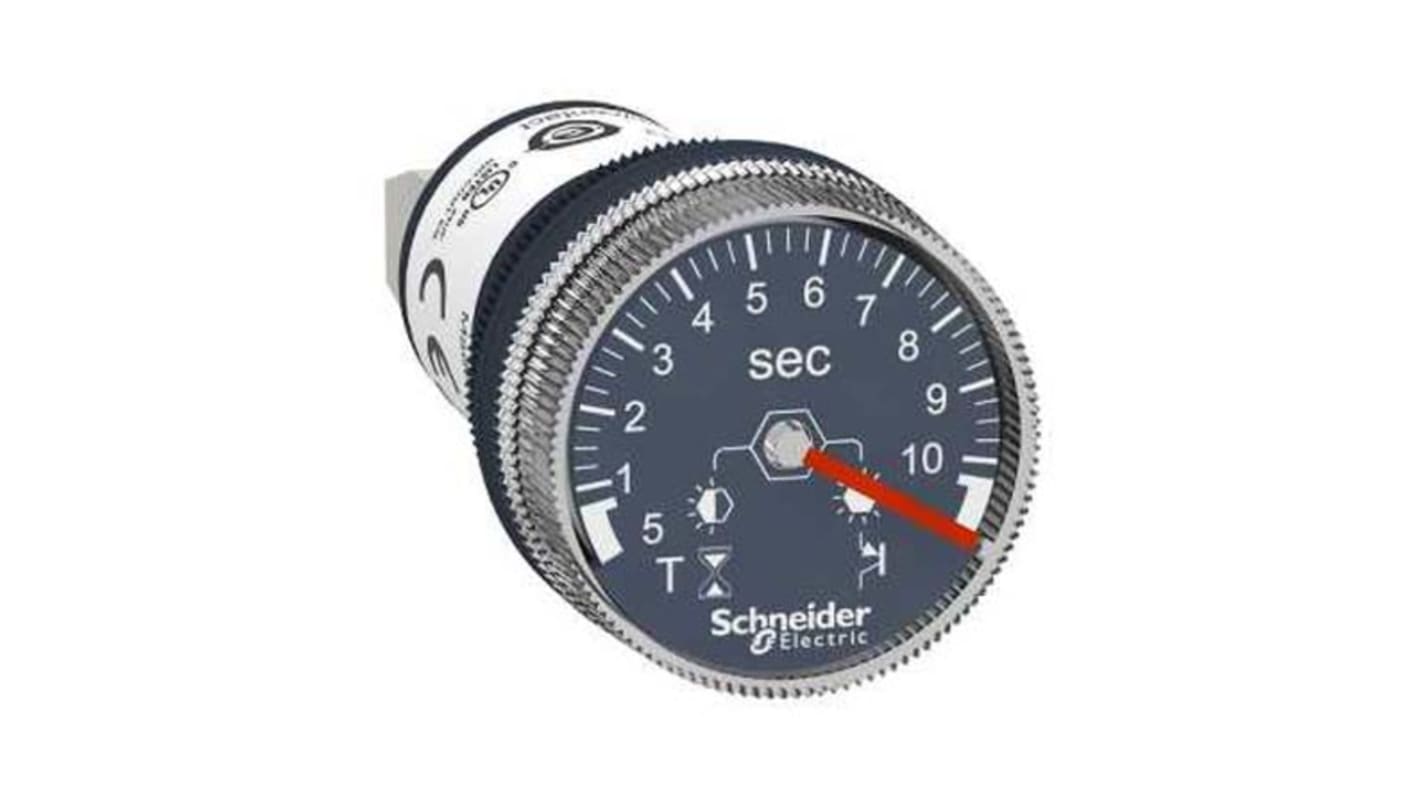

Schneider Electric Timer Relay, Open Collector Output, 24V DC - Harmony XB5 Series - XB5DTB22


This timer relay from Schneider Electric lets you set a time delay when turning equipment on. It fits on a panel through a standard 22mm mounting hole for ease of installation – its clamping width of 1 to 6mm makes it ideal for attaching to thinner panels. The solid-state relay will switch currents of between 10mA and 10A at voltages of up to 24V DC, making it a versatile choice. It has an extremely fast switching time of only 5ms for a rapid response and high levels of efficiency.

• Light weight of only 27g to reduce strain on your panel
• Wide operating temperature range of -20°C to +60°C for use in demanding environments
• Screw terminals for simple and secure connections
• Output short-circuit protection for enhanced electrical safety
• Time range of 0.5s to 10s for flexibility when setting time delays

Applications


• Industrial process instruments
• Model vehicles
• Radio-controlled models
• Pressure and flow-rate sensors

What's an open collector output?


An open collector output, like this one, is a low-powered, solid-state switch. Unlike electromechanical switches, it's very fast, uses little power and is less susceptible to wear. It can only be used for DC (direct current) switching.
