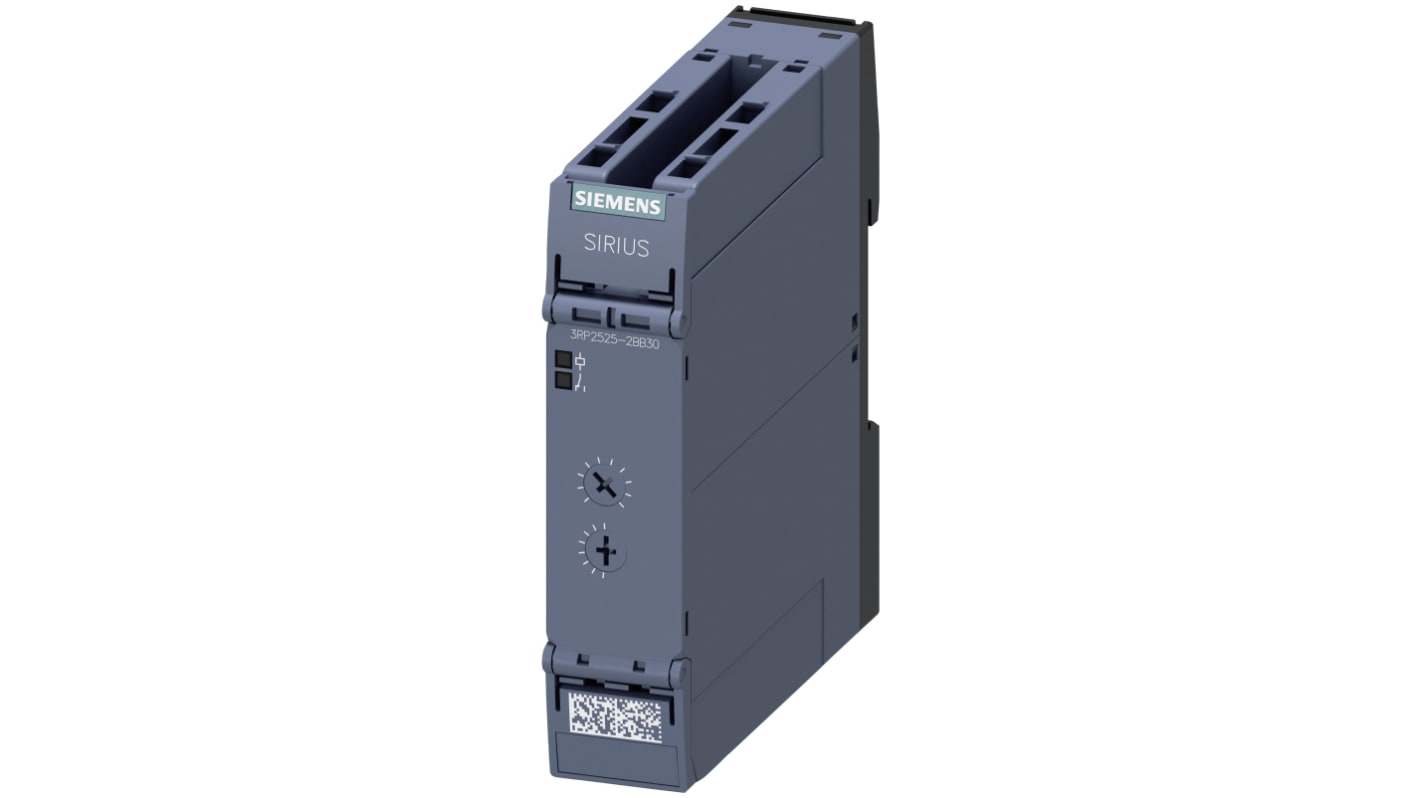

Siemens 3RP25 Series DIN Rail Timer Relay, 2-Contact, 24 V dc 24V ac, 0.05 s to 100 h, 1-Function, DPDT Switch
- N° de stock RS:
- 124-9406
- Référence fabricant:
- 3RP2525-2BB30
- Fabricant:
- Siemens
Sous-total (1 unité)*
119,18 €
(TVA exclue)
144,21 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 22 juillet 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 119,18 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 124-9406
- Référence fabricant:
- 3RP2525-2BB30
- Fabricant:
- Siemens
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Siemens | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Time Range | 0.05 s to 100 h | |
| Number of Contacts | 2 | |
| Switching Voltage | 300V | |
| Number of Timer Functions | 1 | |
| Contact Configuration | DPDT | |
| IP Rating | IP20 | |
| Contact Current | 5A | |
| Minimum Operating Temperature | -25°C | |
| Supply AC Voltage | 24V ac | |
| Supply DC Voltage | 24 V dc | |
| Terminal Type | Push-in | |
| Maximum Operating Temperature | 60°C | |
| Length | 22.5mm | |
| Height | 100mm | |
| Width | 91.6mm | |
| Standards/Approvals | IEC 61812-1, IEC 60664, IEC 60529, EN 954-1, IEC 60068-2-27, UL R300 / B300 | |
| Series | 3RP25 | |
| Sélectionner tout | ||
|---|---|---|
Marque Siemens | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Time Range 0.05 s to 100 h | ||
Number of Contacts 2 | ||
Switching Voltage 300V | ||
Number of Timer Functions 1 | ||
Contact Configuration DPDT | ||
IP Rating IP20 | ||
Contact Current 5A | ||
Minimum Operating Temperature -25°C | ||
Supply AC Voltage 24V ac | ||
Supply DC Voltage 24 V dc | ||
Terminal Type Push-in | ||
Maximum Operating Temperature 60°C | ||
Length 22.5mm | ||
Height 100mm | ||
Width 91.6mm | ||
Standards/Approvals IEC 61812-1, IEC 60664, IEC 60529, EN 954-1, IEC 60068-2-27, UL R300 / B300 | ||
Series 3RP25 | ||
- Pays d'origine :
- DE
SIRIUS 3RP25 - Multifunction Timer Relay
Timing relay SIRIUS 3RP25, 27 functions, for all switching operations involving time delays in control, starting, protection and regulation circuits.
Wide range of applications due to wide variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages. The innovative enclosure concept in an industrial design offers labelled cover caps, removable terminals and much more.
Available as single or multifunctional time relay with semi-conductor output or as electromechanical relay with or without positively driven operation, in each case with various connection technologies.
The scope of supply already includes adhesive films for marking of functions.
The 3RP25 timing relays replace the well-proven 3RP15 series.
Features and Benefits:
Accessories for 3RP25:
