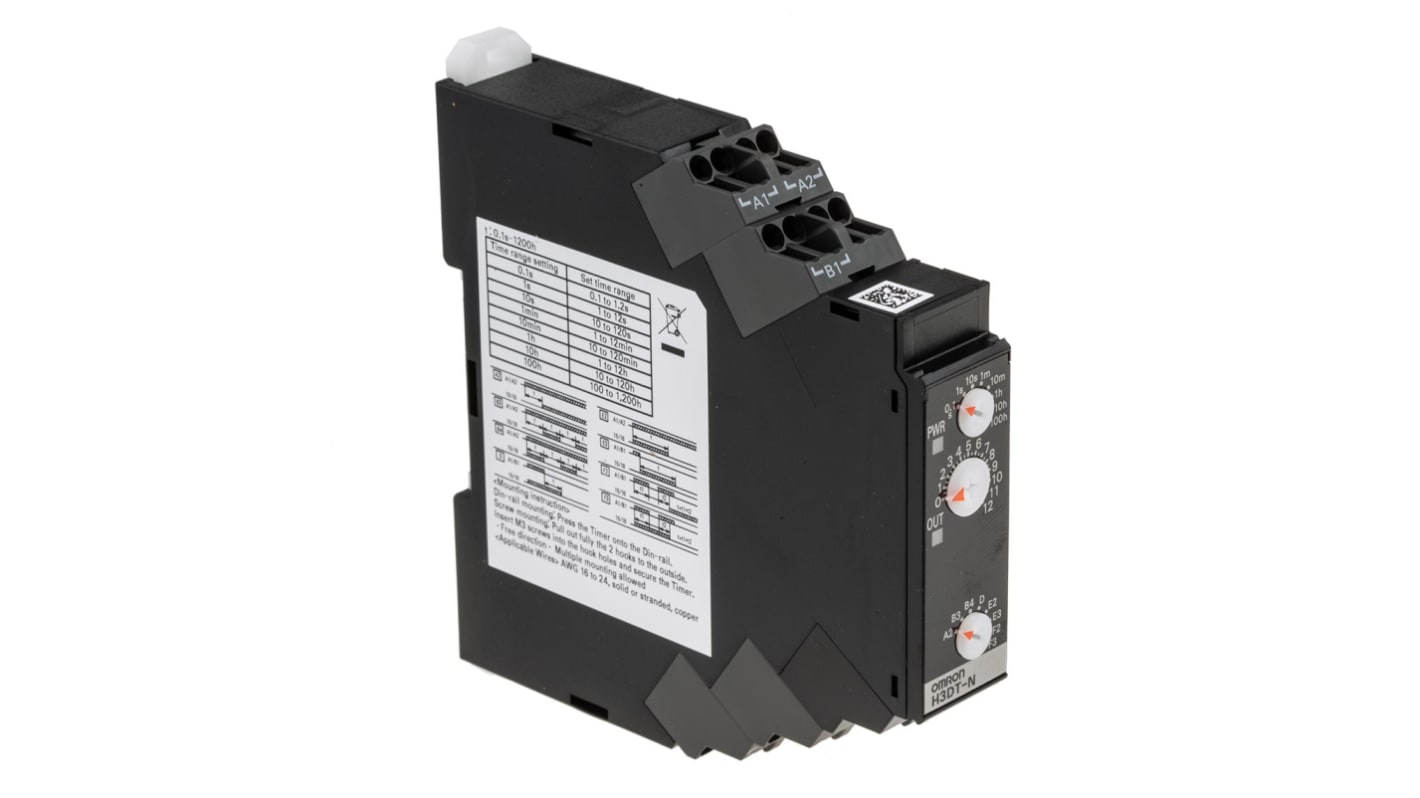

Omron H3DT Series DIN Rail Timer Relay, 2-Contact, 240 V dc 240 V ac, 24 V ac, 0.1 s to 100 h, Multifunction-Function,

N° de stock RS:: 106-6237
Référence fabricant:: H3DT-N1 24-240VAC/DC
Fabricant:: Omron

Omron H3DT Series DIN Rail Timer Relay, 2-Contact, 240 V dc 240 V ac, 24 V ac, 0.1 s to 100 h, Multifunction-Function,

Sous-total (1 unité)*

84,28 €

(TVA exclue)

101,98 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 75,00 €

Temporairement en rupture de stock

8 unité(s) expédiée(s) à partir du 21 avril 2026
Plus 5 unité(s) expédiée(s) à partir du 05 mai 2026
Plus 6 unité(s) expédiée(s) à partir du 19 mai 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	84,28 €

*Prix donné à titre indicatif

N° de stock RS:: 106-6237
Référence fabricant:: H3DT-N1 24-240VAC/DC
Fabricant:: Omron

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Omron
	Product Type	Timer Relay
	Function	Timer, Offset Double Ring End
	Mount Type	DIN Rail
	Time Range	0.1 s to 100 h
	Number of Contacts	2
	Switching Voltage	250 V ac
	Number of Timer Functions	Multifunction
	Contact Configuration	SPDT
	IP Rating	IP20, IP30
	Supply DC Voltage	240 V dc
	Contact Current	5A
	Minimum Operating Temperature	-20°C
	Supply AC Voltage	240 V ac, 24 V ac
	Terminal Type	Screw
	Maximum Operating Temperature	60°C
	Standards/Approvals	DNV GL, CCC, LR, EN 61812-1, cULus:UL 508/CSA C22.2 No. 14, RoHS, IEC 60664-1
	Length	17.5mm
	Width	90 mm
	Height	100mm
	Series	H3DT

	Sélectionner tout
	Marque Omron
	Product Type Timer Relay
	Function Timer, Offset Double Ring End
	Mount Type DIN Rail
	Time Range 0.1 s to 100 h
	Number of Contacts 2
	Switching Voltage 250 V ac
	Number of Timer Functions Multifunction
	Contact Configuration SPDT
	IP Rating IP20, IP30
	Supply DC Voltage 240 V dc
	Contact Current 5A
	Minimum Operating Temperature -20°C
	Supply AC Voltage 240 V ac, 24 V ac
	Terminal Type Screw
	Maximum Operating Temperature 60°C
	Standards/Approvals DNV GL, CCC, LR, EN 61812-1, cULus:UL 508/CSA C22.2 No. 14, RoHS, IEC 60664-1
	Length 17.5mm
	Width 90 mm
	Height 100mm
	Series H3DT

Pays d'origine :: CN

Omron H3DT Series Timer Relay, SPDT Contact Configuration, 0.1s to 100h Time Range - H3DT-N1

This timer relay is designed for various automation and control applications, providing accurate timing functionality. It operates effectively in both AC and DC environments, making it adaptable to a range of industrial needs. Users can utilise it for delay operations, flickering timings, and multi-functional tasks, thereby enhancing the efficiency of electrical systems.

Features & Benefits

• Supports a wide supply voltage range of 24 to 240V

• Multi-function operations allow for a variety of applications

• Configured as SPDT for flexible wiring options

• Time range adjustable from 0.1 seconds to 100 hours

• Designed for easy integration with external power supplies

• Durable silver alloy contacts provide consistent performance

Applications

• Timing controls in manufacturing processes

• Ideal for automation systems requiring precise timing

• Commonly used in HVAC systems for delay functions

• Utilised in safety circuits to manage operational timings

• Effective for lighting controls to create flickering effects

What type of external power supply do I need?

It requires an external supply voltage within the range of 24 to 240V AC/DC for operation.

How can the timing functions be adjusted?

The timing can be adjusted via specific settings according to your operational requirements, ranging from 0.1 seconds to 100 hours.

Is this device suitable for both AC and DC applications?

Yes, it is designed to function effectively in both AC and DC environments.

How do I mount it in my control panel?

This model is designed for DIN rail mounting, ensuring straightforward and organised installation within your system.
