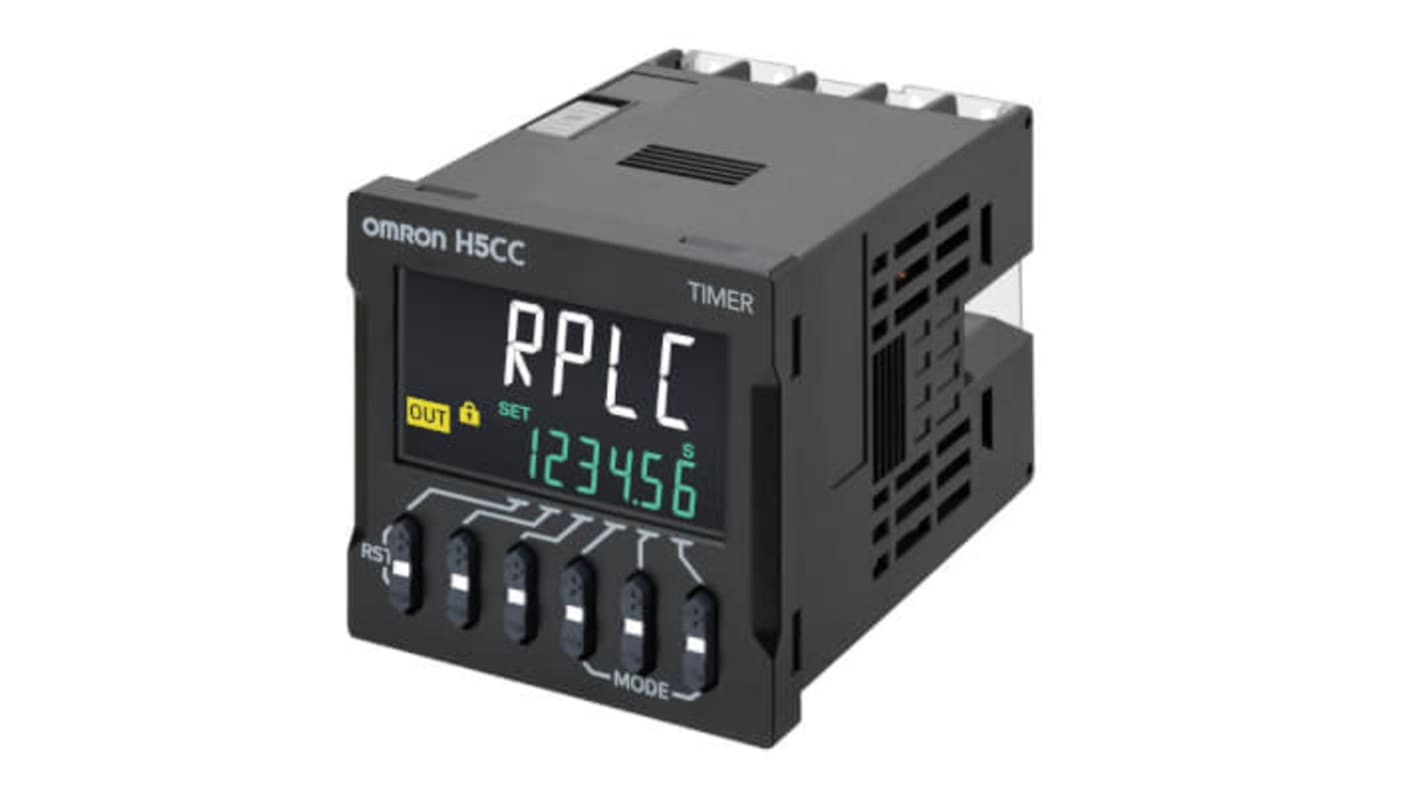

Omron H5CC Series Flush Timer Relay, 1-Contact, 100 to 240 V 100V ac, 240 V ac, 0.001 s to 999999h h, 2-Function, SPDT
- N° de stock RS:
- 402-680
- Référence fabricant:
- H5CC-A
- Fabricant:
- Omron
Sous-total (1 unité)*
245,34 €
(TVA exclue)
296,86 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 8 unité(s) expédiée(s) à partir du 05 juin 2026
- Plus 9 unité(s) expédiée(s) à partir du 17 juin 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 245,34 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 402-680
- Référence fabricant:
- H5CC-A
- Fabricant:
- Omron
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Omron | |
| Product Type | Timer Relay | |
| Mount Type | Flush | |
| Function | Multifunction | |
| Time Range | 0.001 s to 999999h h | |
| Number of Contacts | 1 | |
| Number of Timer Functions | 2 | |
| Switching Voltage | 250V ac | |
| Contact Configuration | SPDT | |
| IP Rating | IP66 | |
| Minimum Operating Temperature | -10°C | |
| Supply DC Voltage | 100 to 240 V | |
| Timing Adjustment | Polar | |
| Contact Current | 5A | |
| Supply AC Voltage | 100, 240V ac | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | UL508/CSA C22.2 No. 14, RCM, CCC, cULus, UKCA, EN61812-1 | |
| Length | 59mm | |
| Width | 48mm | |
| Height | 48mm | |
| Series | H5CC | |
| Sélectionner tout | ||
|---|---|---|
Marque Omron | ||
Product Type Timer Relay | ||
Mount Type Flush | ||
Function Multifunction | ||
Time Range 0.001 s to 999999h h | ||
Number of Contacts 1 | ||
Number of Timer Functions 2 | ||
Switching Voltage 250V ac | ||
Contact Configuration SPDT | ||
IP Rating IP66 | ||
Minimum Operating Temperature -10°C | ||
Supply DC Voltage 100 to 240 V | ||
Timing Adjustment Polar | ||
Contact Current 5A | ||
Supply AC Voltage 100, 240V ac | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals UL508/CSA C22.2 No. 14, RCM, CCC, cULus, UKCA, EN61812-1 | ||
Length 59mm | ||
Width 48mm | ||
Height 48mm | ||
Series H5CC | ||
- Pays d'origine :
- CN
Omron H5CC Series Timer Relay, 0.001s to 999999h Time Range, 100/240V Supply Voltage - H5CC-A
This timer relay is a Compact multifunction timing device designed for control panels and industrial automation. It provides selectable timing functions and a single changeover contact to manage on/off sequencing in electrical systems. The unit accepts universal supply voltages and is intended for flush-panel installation where environmental sealing and standard approvals are required.
Features and Benefits:
• Single changeover contact rated at 5A for switching moderate loads
• Wide supply compatibility 100/240V AC or 100–240V DC for versatile deployment
• Time range 0.001 s to 999999 h for high-precision and long-duration cycles
• Polar timing adjustment for accurate and repeatable set-up
• IP66 protection enabling use in dust-tight and heavy washdown locations
• Meets UL508 cULus and other listed standards for recognised industrial acceptance
• Wide supply compatibility 100/240V AC or 100–240V DC for versatile deployment
• Time range 0.001 s to 999999 h for high-precision and long-duration cycles
• Polar timing adjustment for accurate and repeatable set-up
• IP66 protection enabling use in dust-tight and heavy washdown locations
• Meets UL508 cULus and other listed standards for recognised industrial acceptance
Applications
• Suitable for sequence control in manufacturing automation systems
• Ideal for timing control of conveyor and material-handling equipment
• Used for delayed switching in motor starter circuits and control cabinets
• Can be used for process timing in harsh factory environments
• Ideal for timing control of conveyor and material-handling equipment
• Used for delayed switching in motor starter circuits and control cabinets
• Can be used for process timing in harsh factory environments
What contact arrangement does the unit provide and how does it affect wiring?
It uses a single-pole changeover contact, allowing one input to switch between two outputs and simplifying wiring for single-circuit control tasks.
How does the device cope with wide supply variations on-site?
The design accepts both AC and DC supplies across the 100–240V range, removing the need for separate voltage-specific models during installation.
What environmental conditions can it withstand during operation?
With IP66 ingress protection and an operating temperature range from −10°C to 55°C it performs in dusty, damp and moderately warm industrial settings.
How precise are the timing settings for repeatable processes?
Timing is adjustable from 0.001 s up to 999999 h and set via polar adjustment, enabling fine-tuning for both Rapid pulses and extended delays.
