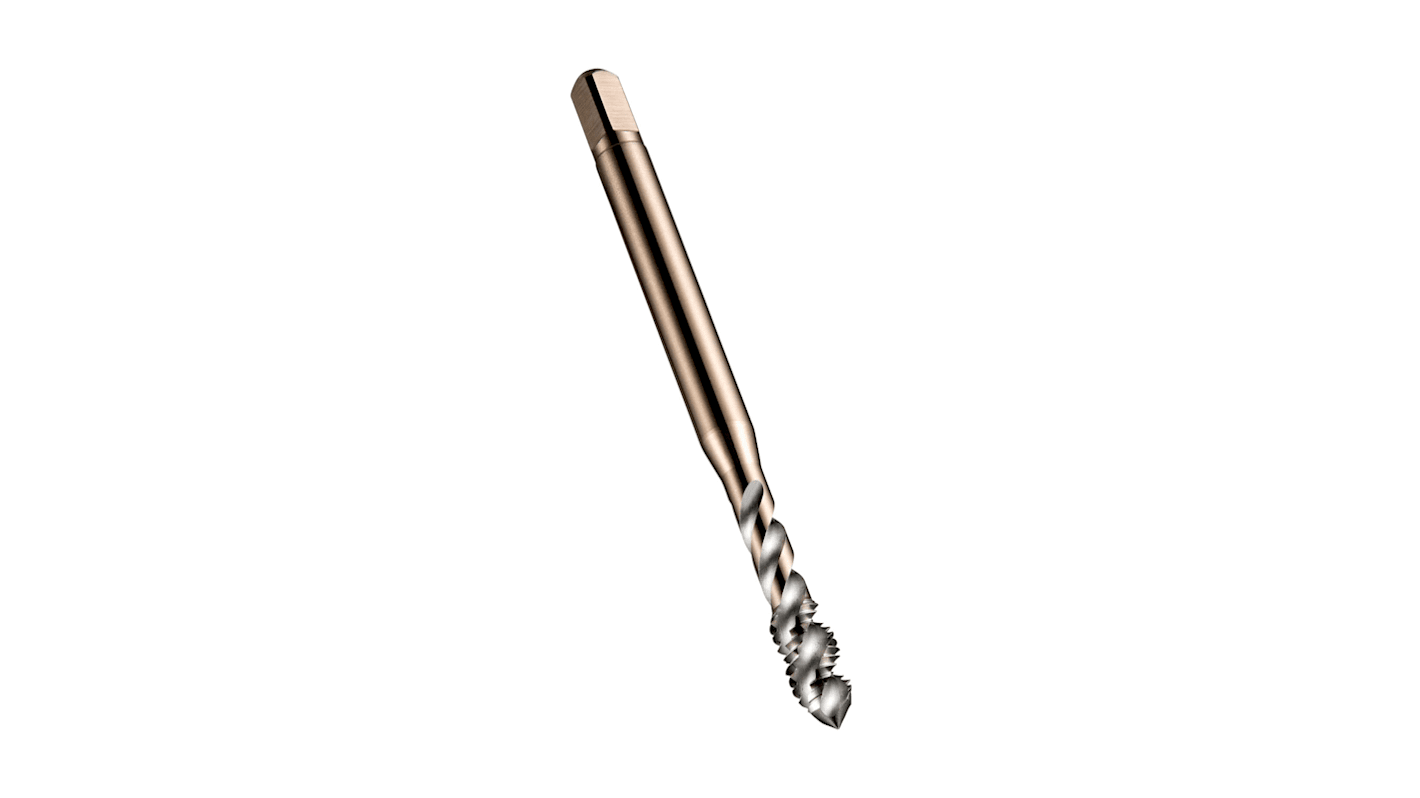

Dormer Threading Tap Metal 2.5mm Pitch Metric Standard M20 Thread
- N° de stock RS:
- 273-0169
- Référence fabricant:
- E002M20
- Fabricant:
- Dormer
Sous-total (1 unité)*
99,89 €
(TVA exclue)
120,87 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 06 janvier 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 99,89 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 273-0169
- Référence fabricant:
- E002M20
- Fabricant:
- Dormer
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Dormer | |
| Thread Size | M20 | |
| Type | Spiral Flute Machine Tap | |
| Pitch | 2.5mm | |
| Thread Standard | Metric | |
| Overall Length | 112 mm | |
| Material | Metal | |
| Sélectionner tout | ||
|---|---|---|
Marque Dormer | ||
Thread Size M20 | ||
Type Spiral Flute Machine Tap | ||
Pitch 2.5mm | ||
Thread Standard Metric | ||
Overall Length 112 mm | ||
Material Metal | ||
Statut RoHS : Exempté
- Pays d'origine :
- IN
The Dormer M Machine tap with spiral flute suited for blind holes. The bright finish to produce more accurate and cleaner threads preventing the work piece material from sticking to the cutting edges. This machine tap has powder metallurgical HSS E with bright finish and 45 degree helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium.
ISO 529 tap standard
Thread form and metric coarse
Right hand rotation and cutting
DIN thread pitch diameter tolerance zone
Spiral point geometry and semi bottoming tap chamfer
Thread form and metric coarse
Right hand rotation and cutting
DIN thread pitch diameter tolerance zone
Spiral point geometry and semi bottoming tap chamfer
