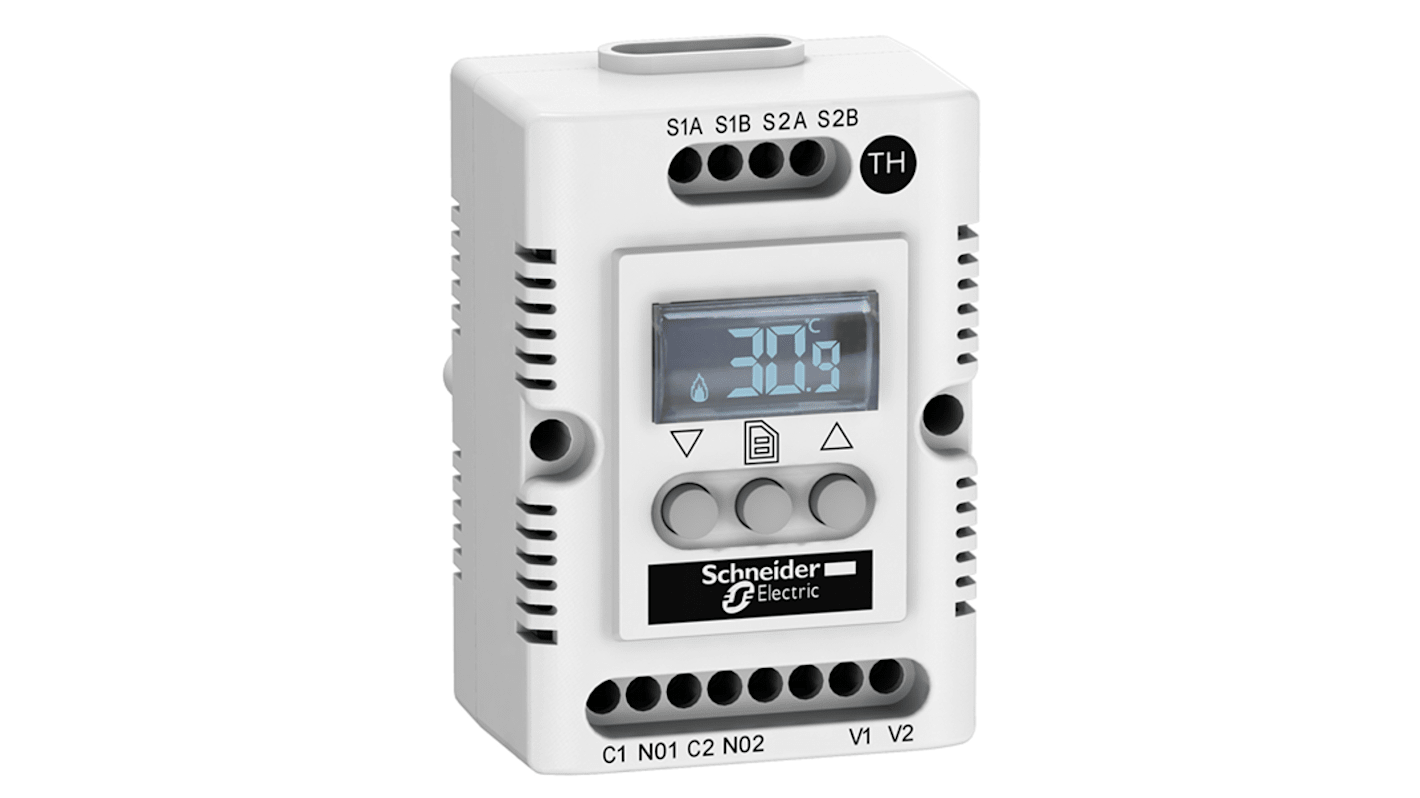

Schneider Electric ClimaSys Thermostat, 4 A, 230V, 80 °C, -40 °C, -40 to 80°C
- N° de stock RS:
- 288-2127
- Référence fabricant:
- NSYCCOTH30VID
- Fabricant:
- Schneider Electric
Sous-total (1 unité)*
103,42 €
(TVA exclue)
125,14 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 10 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 103,42 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 288-2127
- Référence fabricant:
- NSYCCOTH30VID
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Product Type | Thermostat | |
| Sub Type | Electronical Thermostat | |
| Contact Voltage | 30V | |
| Supply Voltage | 230V | |
| Maximum Operating Temperature | 80°C | |
| Minimum Operating Temperature | -40°C | |
| Contact Current | 4A | |
| Standards/Approvals | REACH, RoHS | |
| Series | ClimaSys | |
| Temperature Setting Range | -40 to 80°C | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Product Type Thermostat | ||
Sub Type Electronical Thermostat | ||
Contact Voltage 30V | ||
Supply Voltage 230V | ||
Maximum Operating Temperature 80°C | ||
Minimum Operating Temperature -40°C | ||
Contact Current 4A | ||
Standards/Approvals REACH, RoHS | ||
Series ClimaSys | ||
Temperature Setting Range -40 to 80°C | ||
- Pays d'origine :
- CN
The Schneider Electric Climasys CC Electronical thermostat is a versatile and reliable temperature control device designed for a wide range of applications. With an input voltage range of 9 to 30V AC/DC and a temperature setting range of -40 to 80 °C, this thermostat offers precise temperature control and monitoring capabilities. The OLED screen displays temperature in both °F and °C, providing easy readability and operation.
Optional NTC external sensor for enhanced temperature sensing capabilities
Maximum switching capacity of 4A at 30V AC/DC for efficient operation
Self extinguishing material with flame retardant properties for safety
Green Premium product with sustainable offer status for environmentally conscious users
Compliant with EU RoHS Directive and mercury free for reduced environmental impact
Compact and easy to install design with mounting options on DIN rails or mounting plates
