Siemens RDF Thermostat, 5 A, 230V ac, 49 °C, 0 °C, 0 to 49°C
- N° de stock RS:
- 287-8922
- Référence fabricant:
- RDF800 / S55770-T396
- Fabricant:
- Siemens
Sous-total (1 unité)*
173,57 €
(TVA exclue)
210,02 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 16 octobre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 173,57 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 287-8922
- Référence fabricant:
- RDF800 / S55770-T396
- Fabricant:
- Siemens
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Siemens | |
| Product Type | Thermostat | |
| Sub Type | Standalone Room Thermostat | |
| Contact Voltage | 230V | |
| Supply Voltage | 230V ac | |
| Maximum Operating Temperature | 49°C | |
| Contact Current | 5A | |
| Minimum Operating Temperature | 0°C | |
| Standards/Approvals | EN 60529 (IP30), RCM (A6V11174927), UL94 V-0, EN 60730, CE (A6V11174840) | |
| Temperature Setting Range | 0 to 49°C | |
| Series | RDF | |
| Sélectionner tout | ||
|---|---|---|
Marque Siemens | ||
Product Type Thermostat | ||
Sub Type Standalone Room Thermostat | ||
Contact Voltage 230V | ||
Supply Voltage 230V ac | ||
Maximum Operating Temperature 49°C | ||
Contact Current 5A | ||
Minimum Operating Temperature 0°C | ||
Standards/Approvals EN 60529 (IP30), RCM (A6V11174927), UL94 V-0, EN 60730, CE (A6V11174840) | ||
Temperature Setting Range 0 to 49°C | ||
Series RDF | ||
- Pays d'origine :
- CN

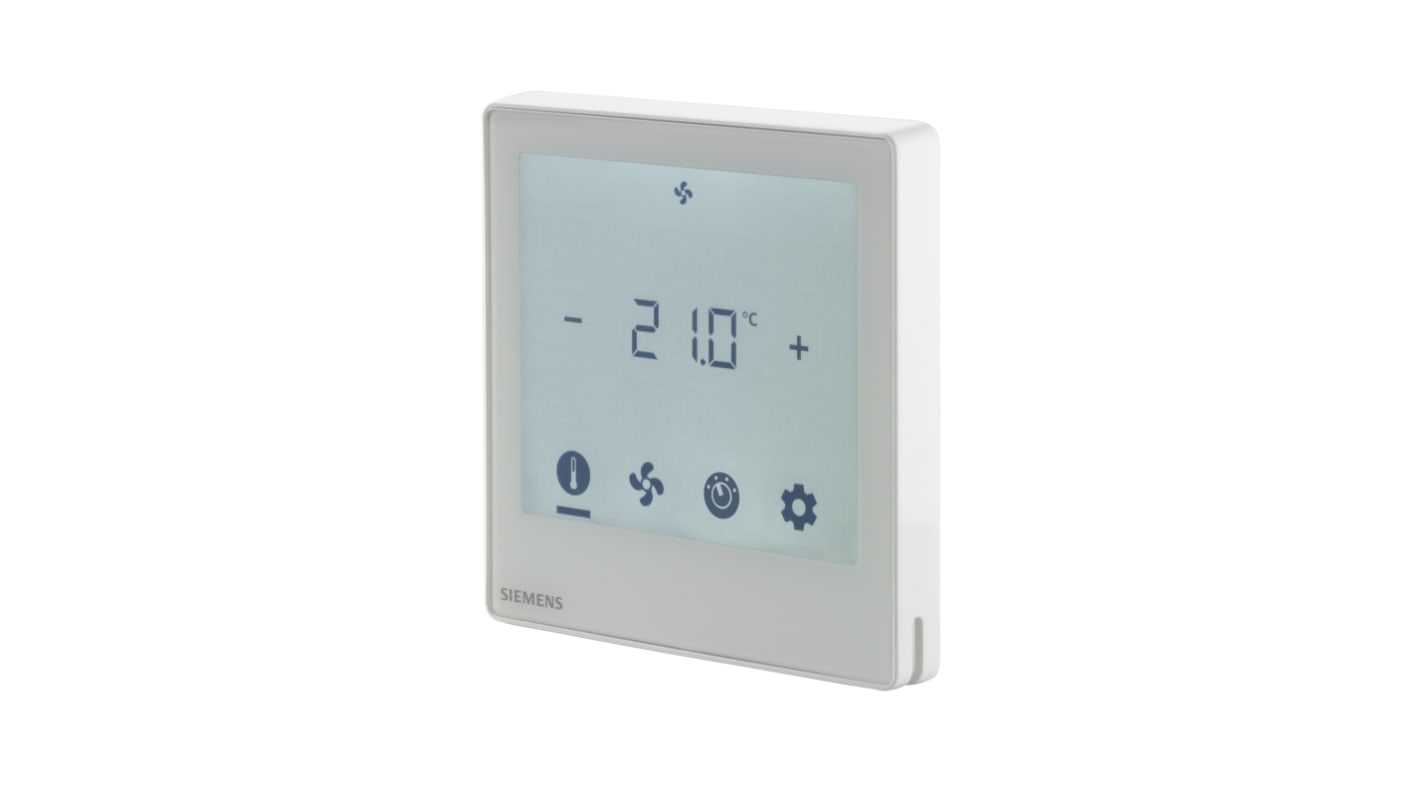

The Siemens touch screen flush-mount standalone room thermostat designed for temperature control in individual rooms and zones. It is suitable for use with various HVAC systems including 2-pipe fan coil units, 4-pipe fan coil units, chilled/heated ceilings, compressors in DX-type equipment, and more. The thermostat features a large touch screen display with backlight for easy operation and a range of control options including 2P/PI/P control, ON/OFF or 3-position control outputs, and 3-speed or 1-speed fan outputs. It also offers advanced functions such as automatic or manual heating/cooling changeover, minimum and maximum limitation of room temperature setpoint, and adjustable commissioning and control parameters.
Large touch screen display with backlight for easy operation
2P/PI/P control options for precise temperature control
ON/OFF or 3-position control outputs for versatile HVAC system compatibility
3-speed or 1-speed fan outputs for customized airflow
Advanced functions including automatic or manual heating/cooling changeover, minimum and maximum limitation of room temperature setpoint, and adjustable commissioning and control parameters
Suitable for use with various HVAC systems including 2-pipe fan coil units, 4-pipe fan coil units, chilled/heated ceilings, compressors in DX-type equipment, and more
