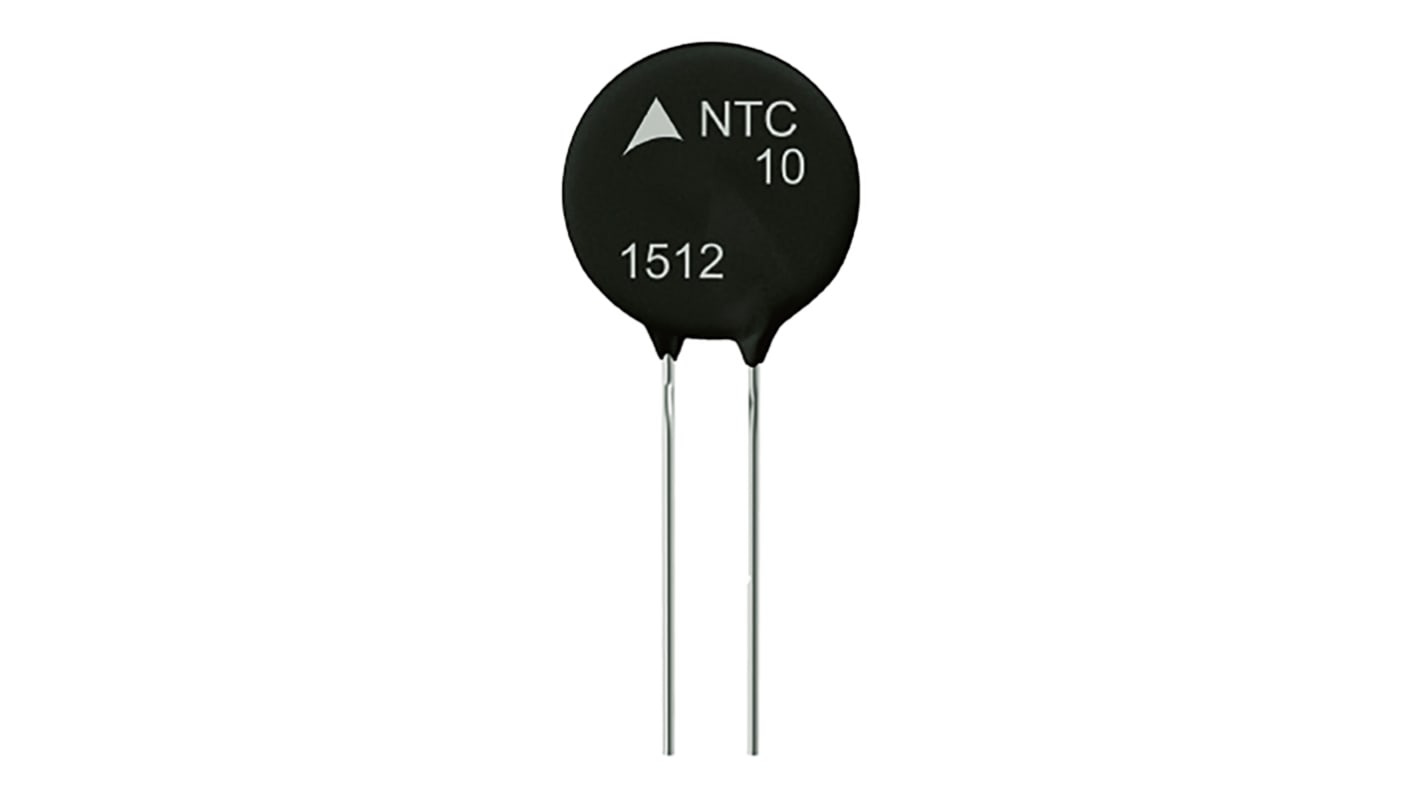

TDK Thermistor, NTC Type 120 Ω, Leaded and Coated Disks 16 mm 11.5 mm 6 mm
- N° de stock RS:
- 185-7771
- Référence fabricant:
- B57236S0121M000
- Fabricant:
- TDK
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 paquet de 5 unités)*
3,52 €
(TVA exclue)
4,26 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 195 unité(s) prête(s) à être expédiée(s)
- Plus 650 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 5 - 20 | 0,704 € | 3,52 € |
| 25 - 45 | 0,554 € | 2,77 € |
| 50 - 95 | 0,468 € | 2,34 € |
| 100 - 245 | 0,436 € | 2,18 € |
| 250 + | 0,398 € | 1,99 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 185-7771
- Référence fabricant:
- B57236S0121M000
- Fabricant:
- TDK
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | TDK | |
| Product Type | Thermistor | |
| Series | B57236S0M0 | |
| Temperature Coefficient Type | NTC | |
| Thermal Time Constant | 70s | |
| Automotive Standard | No | |
| Mount Type | Lead | |
| Tolerance ± | 20% | |
| Package/Case | Leaded and Coated Disks | |
| Maximum Power Rating | 2.1W | |
| Resistance at 25°C | 120Ω | |
| Depth | 6mm | |
| Length | 11.5mm | |
| Standards/Approvals | CQC 0900104539, VDE 40038223, UL 1434 E69802, IEC 101QA12 | |
| Height | 16mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 170°C | |
| Sélectionner tout | ||
|---|---|---|
Marque TDK | ||
Product Type Thermistor | ||
Series B57236S0M0 | ||
Temperature Coefficient Type NTC | ||
Thermal Time Constant 70s | ||
Automotive Standard No | ||
Mount Type Lead | ||
Tolerance ± 20% | ||
Package/Case Leaded and Coated Disks | ||
Maximum Power Rating 2.1W | ||
Resistance at 25°C 120Ω | ||
Depth 6mm | ||
Length 11.5mm | ||
Standards/Approvals CQC 0900104539, VDE 40038223, UL 1434 E69802, IEC 101QA12 | ||
Height 16mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 170°C | ||
- Pays d'origine :
- CN
NTC thermistors are specially developed to limit the current at turn-on by their relatively high resistance when they are cold. When the NTC thermistor heats up as a result of the current load its resistance decreases by a factor of 10 to 50, and the power it draws reduces accordingly. NTC thermistors are able to handle higher inrush currents than fixed resistors with the same power consumption.
Leaded and coated NTC thermistors
Tinned copper wire, kinked
Component marking includes the manufacturer'slogo, resistance Value and date code
Highly stable electrical characteristics
Applications
Inrush current limiting, e.g. in switch-mode power supplies, soft-start motors
