Vishay NTC Thermistor, NTC Type 10 kΩ 10 mm 52 mm 3 mm

Offre groupée disponible
Consulter les options de prix de gros

Sous-total (1 boîte de 1250 unités)*

921,25 €

(TVA exclue)

1 115,00 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Temporairement en rupture de stock
  • Expédition à partir du 05 mars 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité
Prix par unité
La Boite*
1250 - 12500,737 €921,25 €
2500 +0,70 €875,00 €

*Prix donné à titre indicatif

N° de stock RS:
179-3785
Référence fabricant:
NTCLE413E2103F520L
Fabricant:
Vishay
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Vishay

Product Type

NTC Thermistor

Series

NTCLE413

Temperature Coefficient Type

NTC

Thermal Coefficient

-3.75%/K

Thermal Time Constant

2.5s

Packaging

Tape & Reel

Mount Type

PCB

Automotive Standard

No

Tolerance ±

1%

Application

Control, Temperature Measurement, Compensation, Sensing

Accuracy

±1 %

Maximum Power Rating

100mW

Resistance at 25°C

10kΩ

Pin Count

2

Height

10mm

Depth

3mm

Length

52mm

Standards/Approvals

RoHS, UL

Termination Style

Radial

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Statut RoHS non applicable

Pays d'origine :
CN

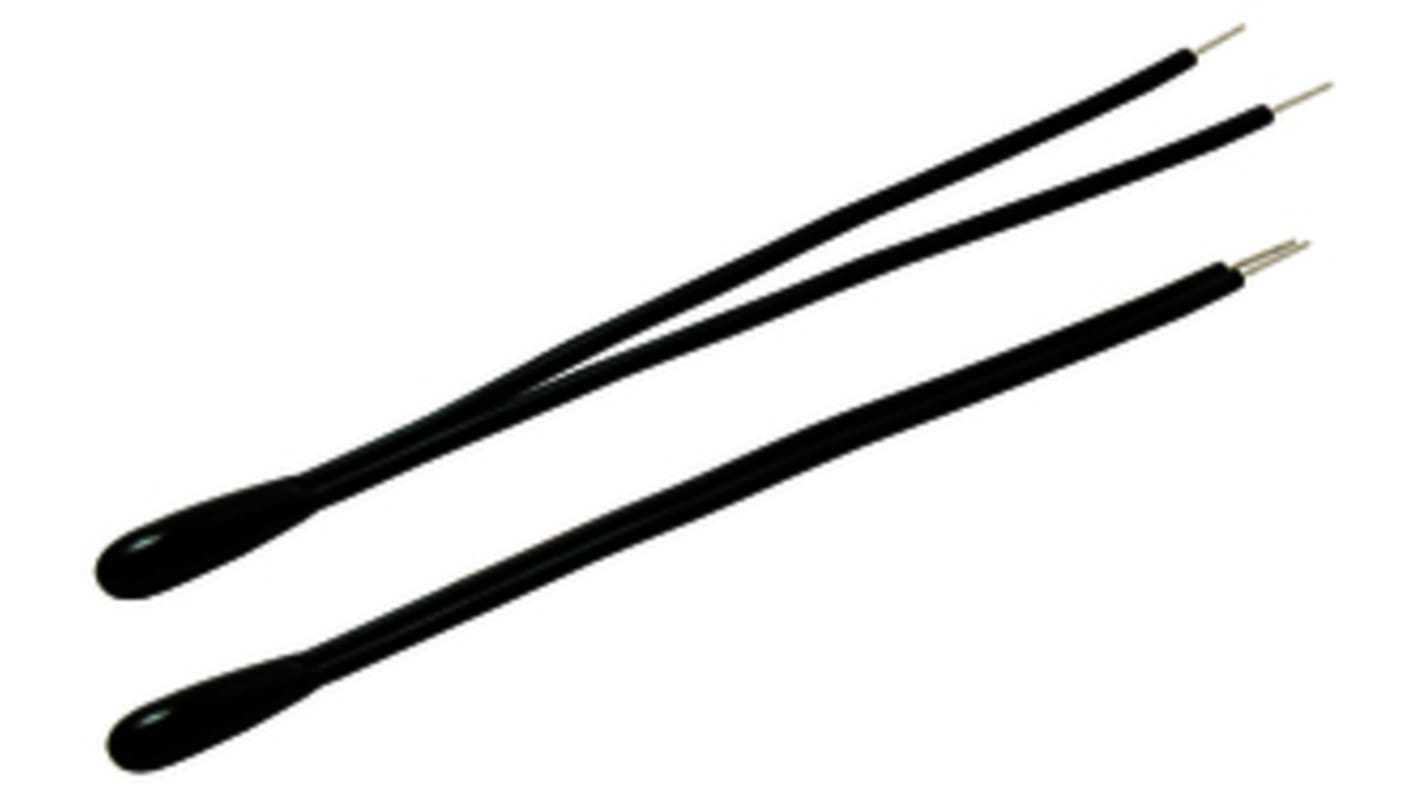

NTC Thermistors, Mini Epoxy PVC Insulated Leads

FEATURES

High adhesive strength between the PVC wire and the encapsulating lacquer

Accurate down to ± 0.3°C

Small body of max. 3 mm for easy installation

APPLICATIONS

Temperature measurement, sensing, and control

On battery packs, heat-sinks, tubing, enclosures, etc.
