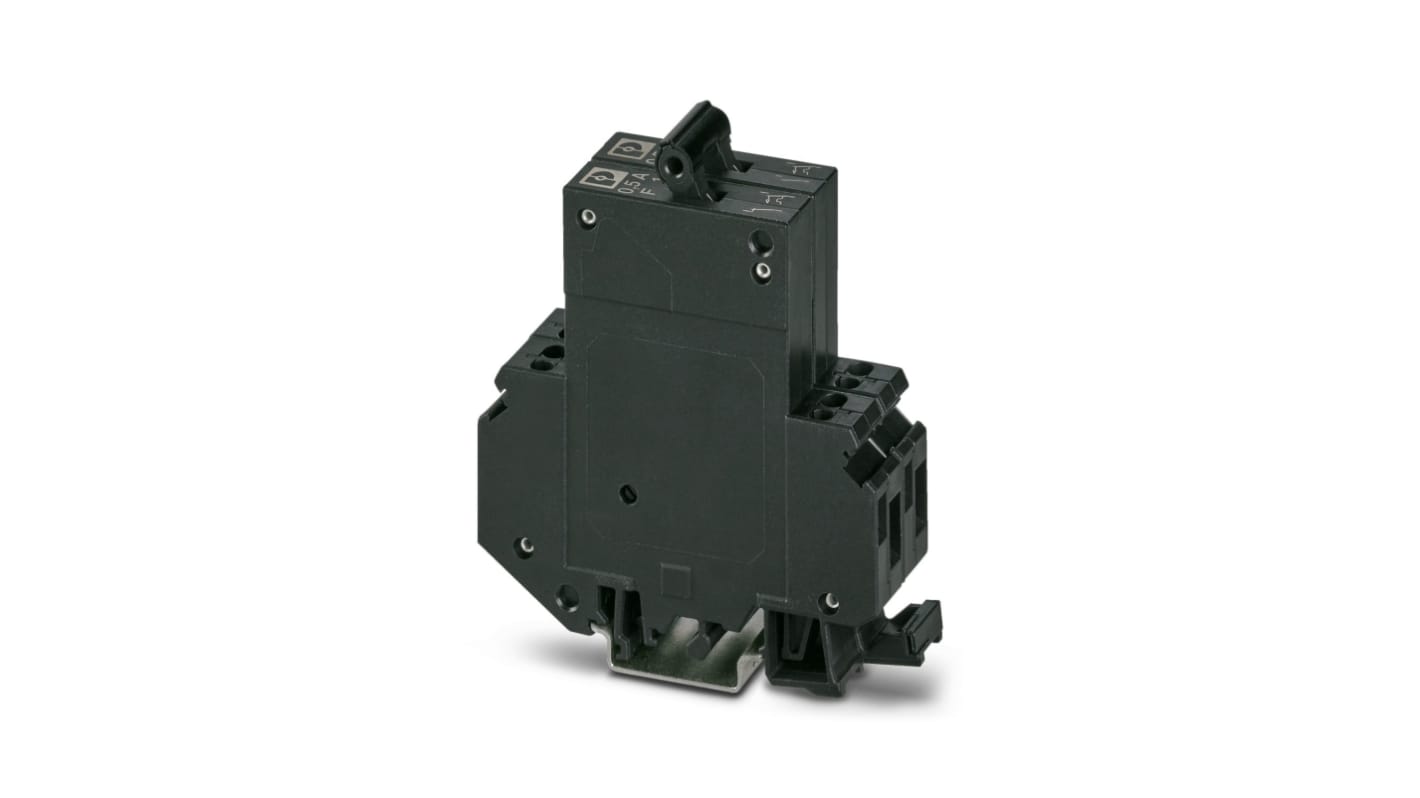

Phoenix Contact TMC TMC Thermal Magnetic Circuit Breaker - 2-Pole, DIN Rail, 500mA Current Rating, 2000 A, 65V ac
- N° de stock RS:
- 135-499
- Référence fabricant:
- 0914769
- Fabricant:
- Phoenix Contact
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 135-499
- Référence fabricant:
- 0914769
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Current Rating | 500mA | |
| Product Type | Thermal Magnetic Circuit Breaker | |
| Range | TMC | |
| Series | TMC | |
| Number of Poles | 2 | |
| Width | 25mm | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Mount Hole Size | 35 mm | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Lever | |
| Tripping Characteristics | Type F1 | |
| Standards/Approvals | UL 1077, VDE Zeichengenehmigung, RoHS, UL, EAC, CSA, EN 60934 | |
| Height | 82.5mm | |
| Rated AC Voltage | 65V ac | |
| Depth | 96mm | |
| Break Time | Instantaneous | |
| Breaking Capacity | 2000A | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Current Rating 500mA | ||
Product Type Thermal Magnetic Circuit Breaker | ||
Range TMC | ||
Series TMC | ||
Number of Poles 2 | ||
Width 25mm | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Mount Hole Size 35 mm | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Lever | ||
Tripping Characteristics Type F1 | ||
Standards/Approvals UL 1077, VDE Zeichengenehmigung, RoHS, UL, EAC, CSA, EN 60934 | ||
Height 82.5mm | ||
Rated AC Voltage 65V ac | ||
Depth 96mm | ||
Break Time Instantaneous | ||
Breaking Capacity 2000A | ||
- Pays d'origine :
- DE
The Phoenix Contact is a thermomagnetic device circuit breaker designed for various applications. With a fast blow feature, it offers reliable protection and control. The breaker comes with 1 N/O contact and 1 N/C contact, making it suitable for different configurations. It has a universal foot for easy mounting on NS 32 or NS 35. The device has a rated current of 0.5A and a rated voltage of 65V DC, providing efficient performance. With its compact design and high-quality construction, this circuit breaker is a reliable choice for your electrical system.
Compact design for easy installation and integration
Universal foot for mounting
Thermal-magnetic circuit breaker for industrial applications
Provides efficient protection against overloads and short circuits
Complies with all necessary standards and regulations
Suitable for various applications that require reliable circuit protection
