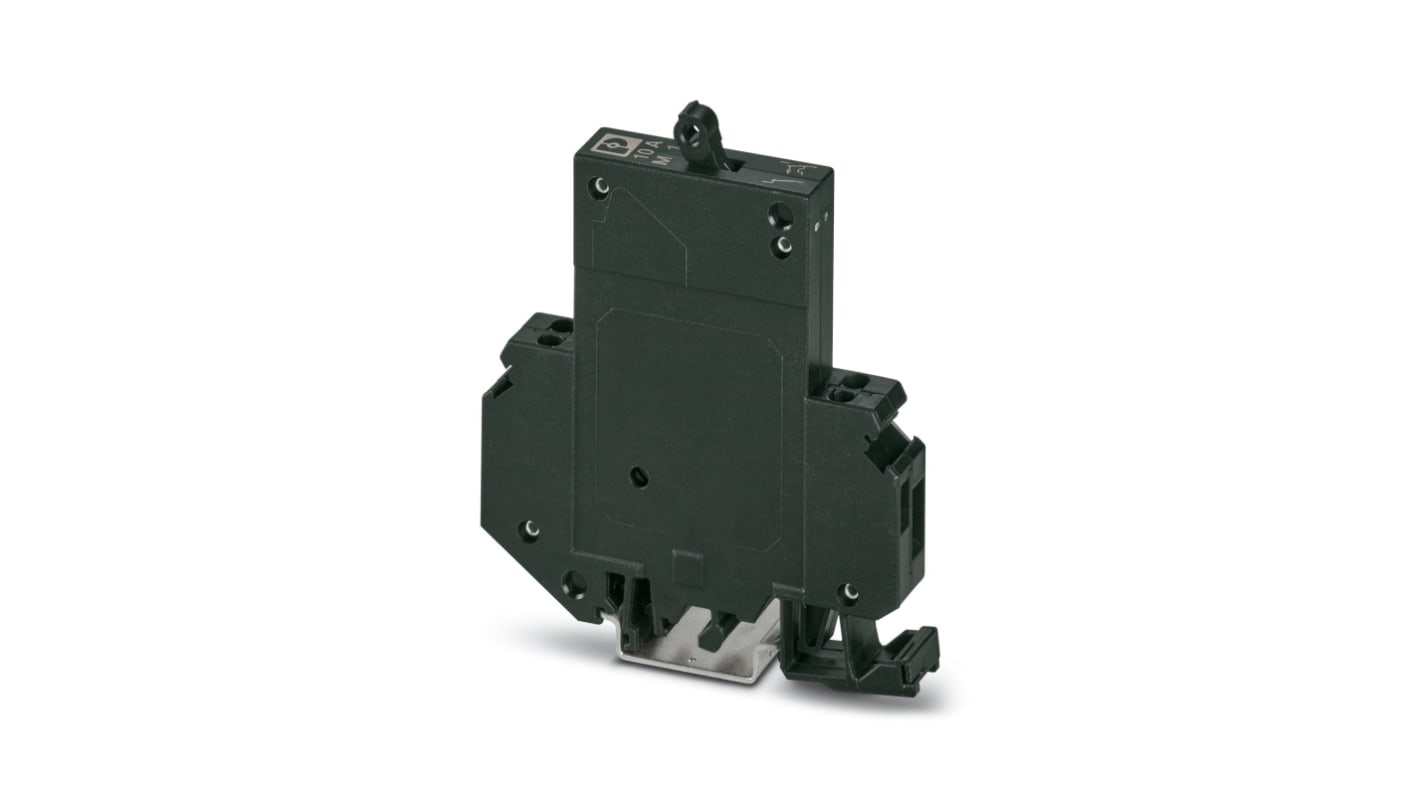

Phoenix Contact TMC TMC Thermal Magnetic Circuit Breaker - 1-Pole, DIN Rail, 10 A Current Rating, 2000 A, 250 V ac

Voir la catégorie
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
N° de stock RS:
135-497
Référence fabricant:
0914701
Fabricant:
Phoenix Contact
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Phoenix Contact

Current Rating

10 A

Product Type

Thermal Magnetic Circuit Breaker

Series

TMC

Range

TMC

Number of Poles

1

Width

12.5 mm

Mount Type

DIN Rail

Terminal Type

Screw

Mount Hole Size

35 mm

Tripping Mechanism

Thermal Magnetic

Reset Actuator Type

Lever

Tripping Characteristics

Type F1

Height

82.5mm

Standards/Approvals

VDE Zeichengenehmigung, UL 1077, CSA, EAC, EN 60934, UL, RoHS

Rated AC Voltage

250 V ac

Depth

96mm

Break Time

Instantaneous

Breaking Capacity

2000A

Pays d'origine :
DE
The Phoenix Contact thermomagnetic device circuit breaker is designed for use in one position with a normal blow and 1 N/C contact. It features a universal foot for mounting on NS 32 or NS 35. With a rated current of 10 A and a rated surge voltage of 2.5 kV, this circuit breaker provides reliable protection against overcurrents and short circuits. It also offers insulation characteristics such as overvoltage category II and a degree of pollution of 2. It is suitable for various applications and is made with high-quality materials for durability and safety.

Compact design for easy installation and integration

Universal foot for mounting

Thermal-magnetic circuit breaker for industrial applications

Provides efficient protection against overloads and short circuits

Complies with all necessary standards and regulations

Suitable for various applications that require reliable circuit protection
