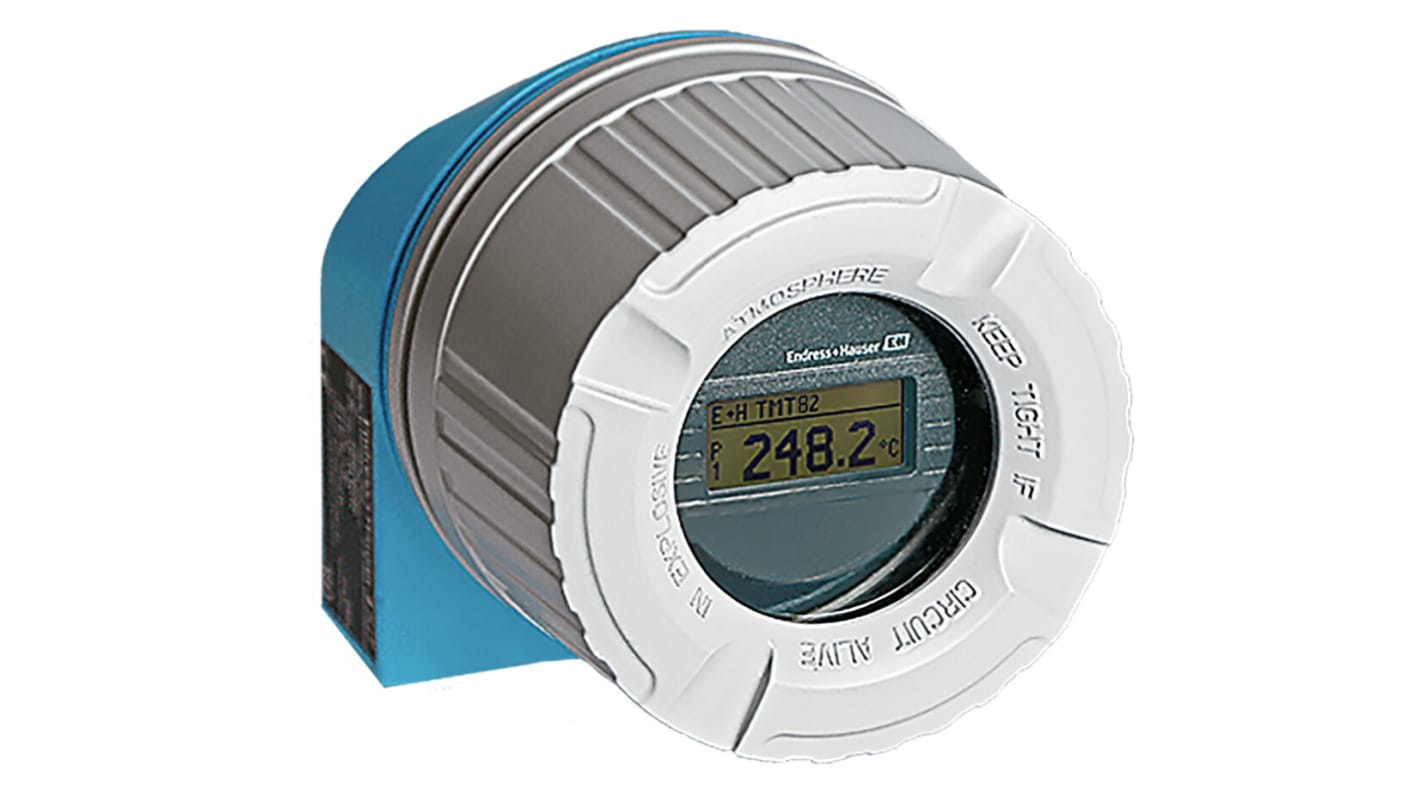

Endress+Hauser iTEMP TMT82 Temperature Transmitter Thermocouple, RTD Input 42V dc, 85 °C, -40 °C
- N° de stock RS:
- 287-1880
- Référence fabricant:
- TMT82-AAA2AB1A1AAA1
- Fabricant:
- Endress+Hauser
Sous-total (1 unité)*
330,43 €
(TVA exclue)
399,82 €
(TVA incluse)
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité | Prix par unité |
|---|---|
| 1 + | 330,43 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 287-1880
- Référence fabricant:
- TMT82-AAA2AB1A1AAA1
- Fabricant:
- Endress+Hauser
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Endress+Hauser | |
| Input Type | Thermocouple, RTD | |
| Product Type | Temperature Transmitter | |
| Output Type | 4 to 20 mA | |
| Minimum Temperature Input | -50°C | |
| Maximum Temperature Input | 200°C | |
| Series | iTEMP TMT82 | |
| Maximum Supply Voltage | 42V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | IECEX, CSA, EAC, ATEX | |
| Sélectionner tout | ||
|---|---|---|
Marque Endress+Hauser | ||
Input Type Thermocouple, RTD | ||
Product Type Temperature Transmitter | ||
Output Type 4 to 20 mA | ||
Minimum Temperature Input -50°C | ||
Maximum Temperature Input 200°C | ||
Series iTEMP TMT82 | ||
Maximum Supply Voltage 42V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Hazardous Area Certification NO | ||
Standards/Approvals IECEX, CSA, EAC, ATEX | ||
The ENDRESS+HAUSER highly reliable and accurate temperature transmitter designed for use in hazardous industrial processes. It features a dual-channel configuration and is SIL compliant, ensuring high safety standards. With its universal sensor inputs, such as thermocouples and RTDs, it can convert signals into stable and scalable 4 to 20 mA outputs with HART communication. The transmitter also includes smart sensor monitoring capability and diagnostic status information according to NAMUR NE 107, further enhancing process safety and uptime. With international approvals and a wide range of signal inputs, It is suitable for various applications, including marine installations and explosive-proof environments. Its compact design and versatile mounting options make it easy to install and integrate into existing systems.
Dual-channel temperature transmitter for industrial processes requiring high availability
SIL 2, SC3 certified for increased process safety and uptime
Universal signal inputs RTD, thermocouple, resistance, and voltage transmitters
HART 7 protocol for seamless communication
Suitable for use in hazardous areas with international approvals
Compact design with versatile mounting options for easy installation
Built-in smart sensor monitoring and diagnostic status information according to NAMUR NE 107
Wide operating temperature range and high accuracy
Long-term stability and robust construction for reliable measurements
Multiple housing options for different installation requirements
