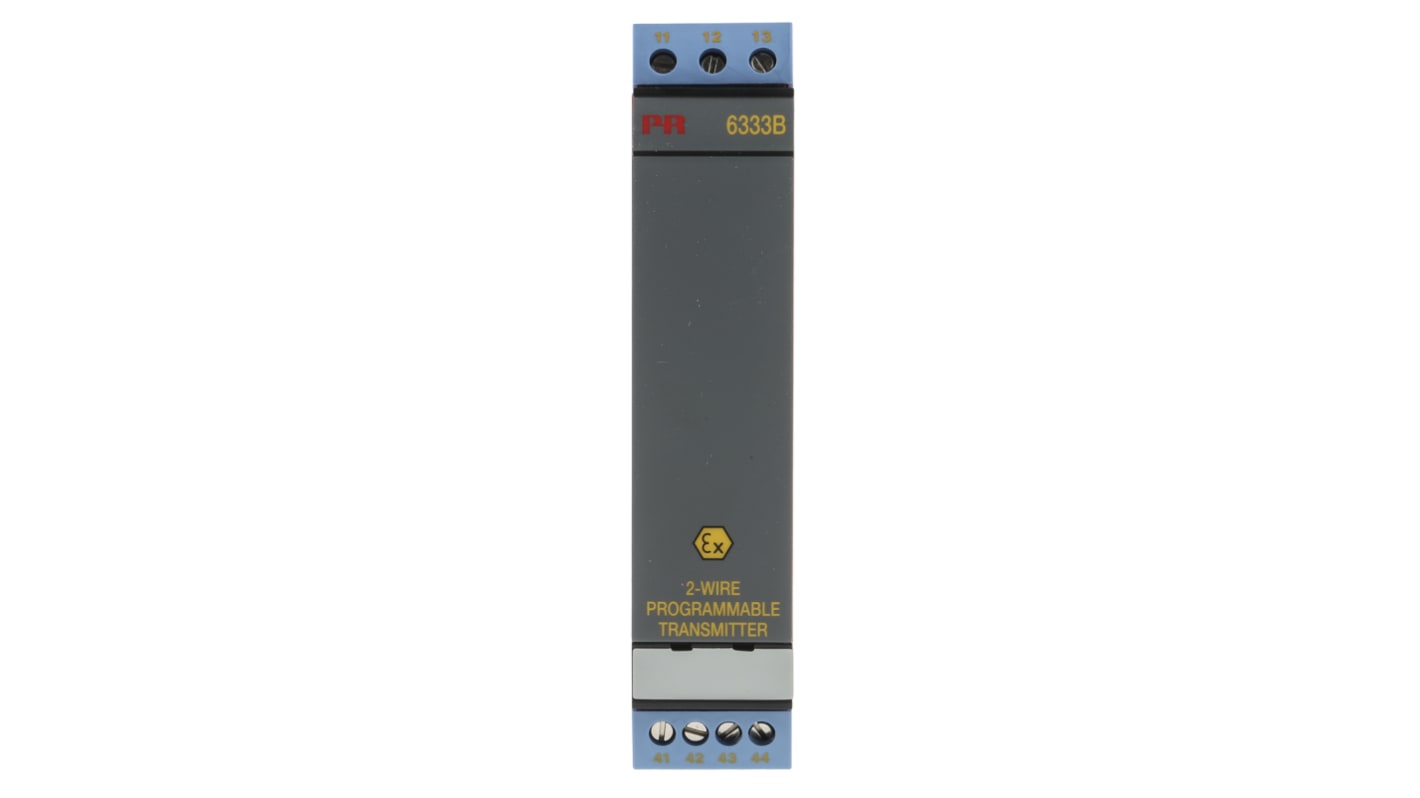

PR Electronics 6333B Temperature Transmitter RTD Input 30V dc, 85 °C, -40 °C

Voir la catégorie

Sous-total (1 unité)*

279,40 €

(TVA exclue)

338,07 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité
Prix par unité
1 +279,40 €

*Prix donné à titre indicatif

N° de stock RS:
136-8674
Référence fabricant:
6333B1B
Fabricant:
PR Electronics
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

PR Electronics

Input Type

RTD

Product Type

Temperature Transmitter

Output Type

4 to 20 mA

Diameter

23.5 mm

Minimum Temperature Input

-200°C

Maximum Temperature Input

850°C

Series

6333B

Depth

104mm

Maximum Supply Voltage

30V dc

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

EMC 2014/30/EU, EAC Ex TR-CU 012/2011, FM, ATEX 2014/34/EU, CSA, IECEX

Hazardous Area Certification

ATEX

Pays d'origine :
DK

6333B 2-Wire Programmable Transmitter


PR Electronics 6333B intrinsically safe 2-wire programmable temperature transmitter offers unrivalled performance in applications making heavy demands on accuracy to convert a wide array of input types to a 4 – 20 mA output signal. The 6333 transmitters provides unrivalled input versatility with galvanic isolation up to 1.5 kVAC for 2 & 3 Wire RTD and linear resistance signals. Input sensor redundancy function maintains process availability and safety in the event of primary sensor failure

The 6300 series transmitters are quickly and easily programmable to the specific application. Configuration via a standard PC and user-friendly software, PReset, available as a free download. Parameters for input, output, sensor error detection and process calibration can be configured via PReset within a few minutes.

Features and Benefits


• DIN Rail mounting

• Galvanic isolation

• Can be installed in Ex zone 0

• Sensor drift detection maintains measuring point reliability

• Flexible input capability, with choice of output modes

• Superior accuracy ensures true, reliable measurements

• Fast response time easily supports safety and cost-critical applications

• High immunity to conducted noise: tested against 10 Vrms in the range 15 Hz–100 MHz

• Continuous check of vital stored data for safety reasons

• Runtime meters provide a valuable history of the process temperature and the ambient temperature around the transmitter

• Very low temperature coefficient ensuring maximum accuracy across changing ambient conditions
