Jumo 909710 Temperature Transmitter

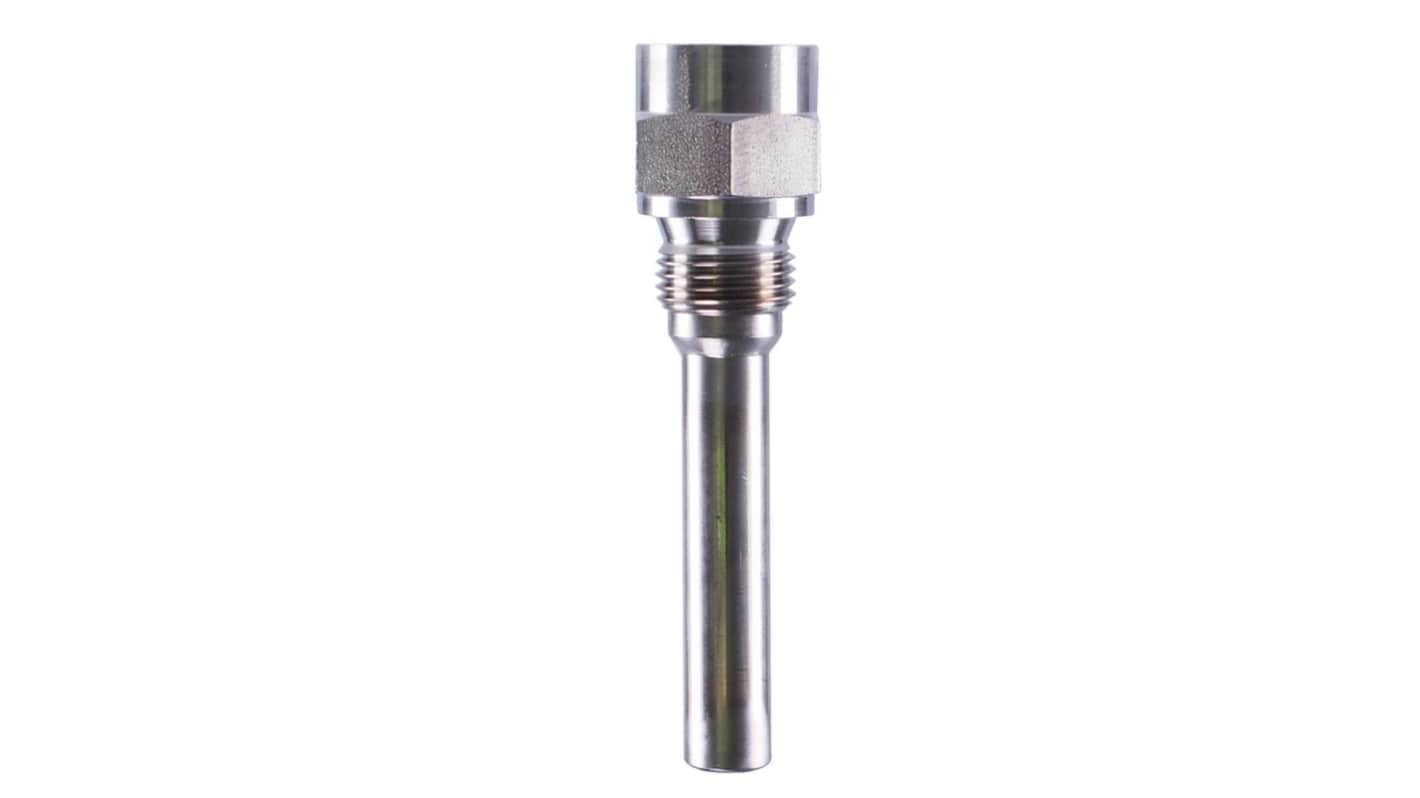

The Jumo Cylindrical screw-in thermowell is used for the installation of thermocouples and resistance thermometers, if, for example, sensor replacement without system drain and/or pressure resistance is required. The protection sleeve with internal thread G 1/2 (similar to DIN 16179 form D) is designed for temperatures from 0 to 400 °C. The outer diameter of the protective tube is 8 mm.

A G 1/2 screw connection is used as process connection
Inside diameter and fitting length are 6.2 x 250 mm
The indicated dimensions refer to the thermometers
Stainless steel 1.4571 is used as protection tube material
