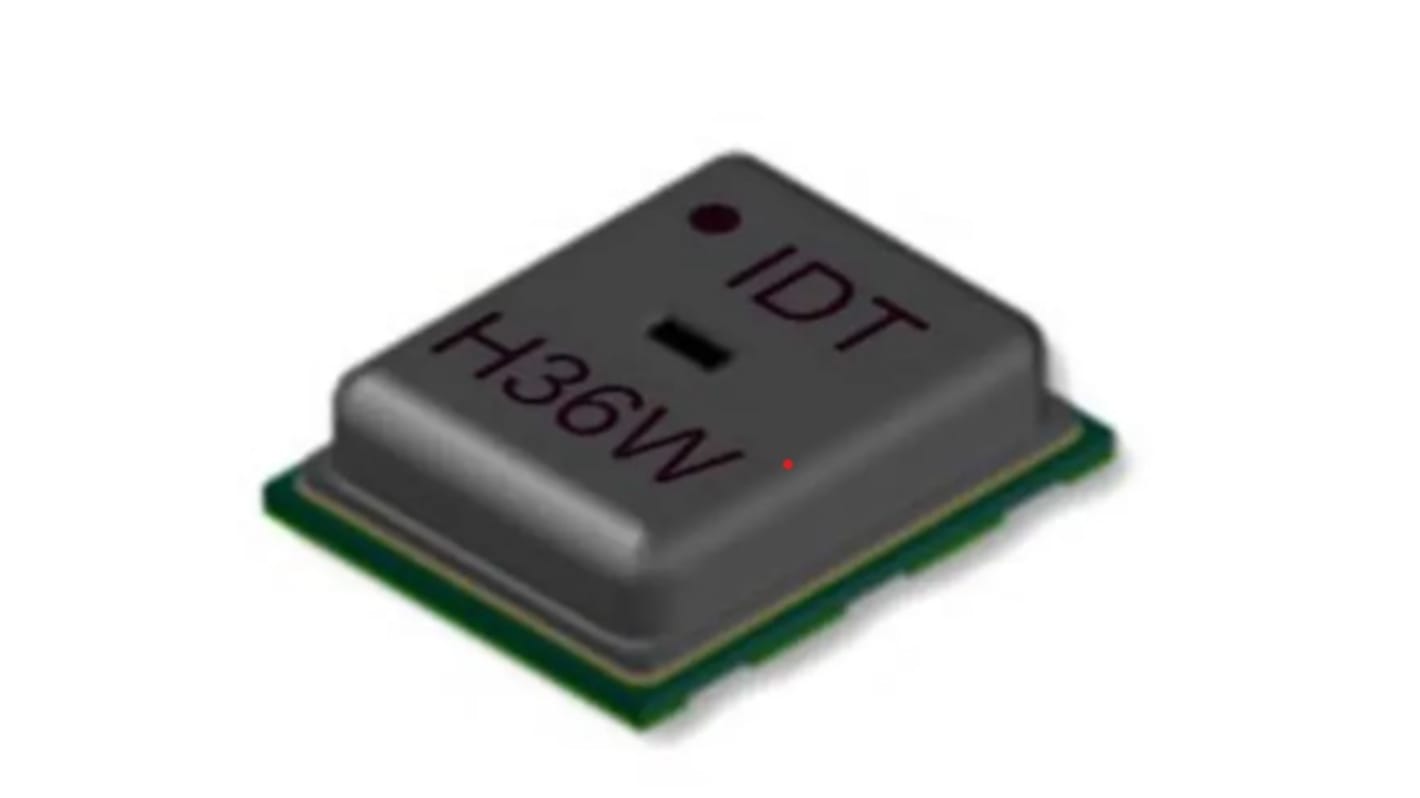

Renesas Electronics HS410x Series Temperature and Humidity Sensor, Analogue Output, Surface Mount, Analogue, ±1.5%RH, 8

Voir la catégorie
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
N° de stock RS:
272-7206
Référence fabricant:
HS4101
Fabricant:
Renesas Electronics
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Renesas Electronics

Sensor Function

Temperature & Humidity

Output Type

Analogue

Interface Type

Analogue

Accuracy

±1.5%RH

Mounting Type

Surface Mount

Pin Count

8

Series

HS410x

Pays d'origine :
PH
The Renesas Electronics Evaluation kit is used to assess the high performance analogue relative humidity and temperature sensor. The hardware allows users to communicate with the evaluation board through a standard USB interface and to view digitized measurements from the sensor using the Demo Software. The analogue output voltage of the sensor can also be measured with a mustimeter using easily accessible test points on the evaluation board. This board contents HS4100 EVK evaluation board, three HS4101 sensor modules, sensor module extension cable and USB cable.

Powered directly from USB port
Extension cable allows extending sensor module
Relative humidity sensor module with HS4101 sensor
