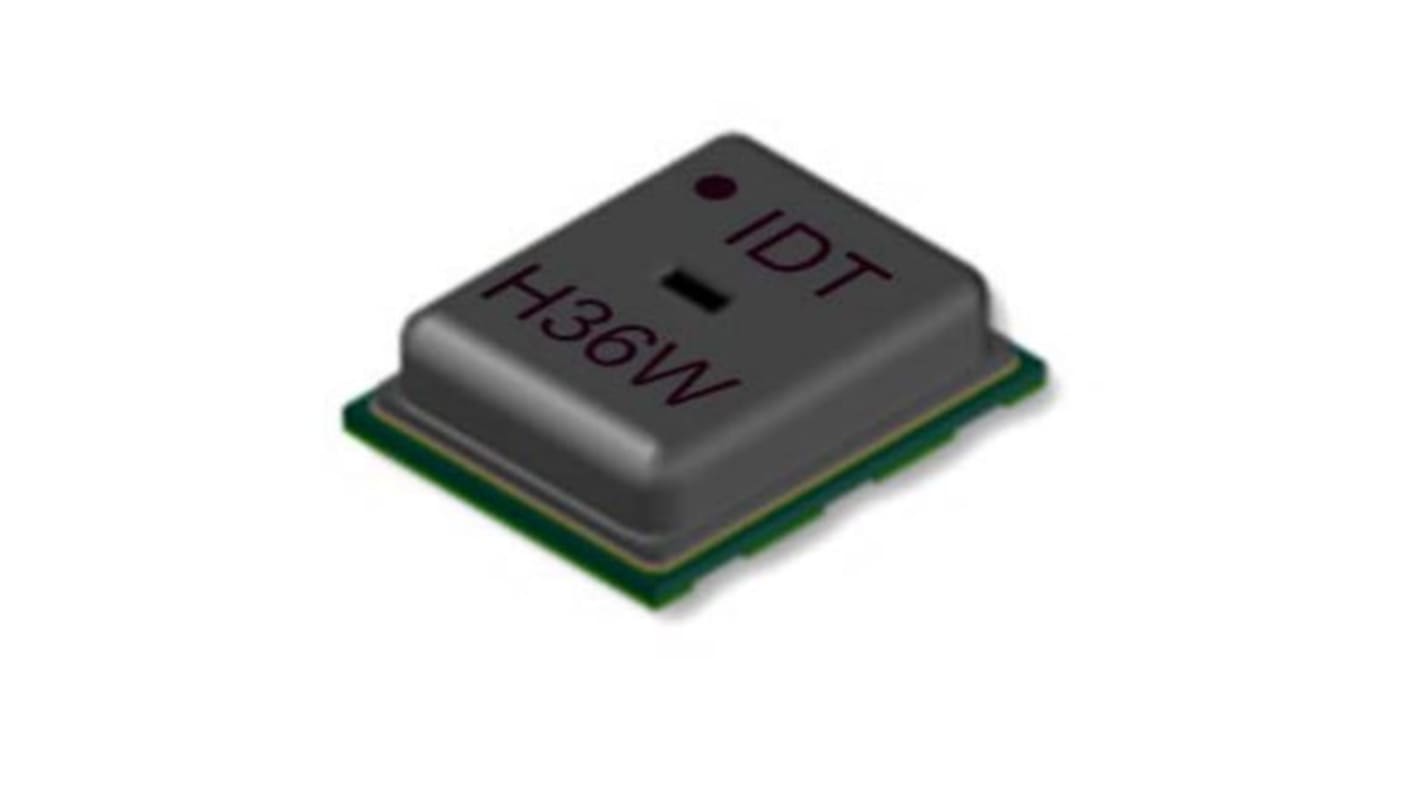

Renesas Electronics Temperature and Humidity Sensor, Digital Output, Surface Mount, I2C, ±1.5%, 6 Pins
- N° de stock RS:
- 217-7948
- Référence fabricant:
- HS3004
- Fabricant:
- Renesas Electronics
Offre groupée disponible
Sous-total (1 paquet de 5 unités)*
8,34 €
(TVA exclue)
10,09 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Dernier stock RS
- 2 195 dernière(s) unité(s), prête(s) à l'envoi d'un autre centre de distribution
Unité | Prix par unité | le paquet* |
|---|---|---|
| 5 - 5 | 1,668 € | 8,34 € |
| 10 - 20 | 1,074 € | 5,37 € |
| 25 - 45 | 1,042 € | 5,21 € |
| 50 - 70 | 1,018 € | 5,09 € |
| 75 + | 0,99 € | 4,95 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 217-7948
- Référence fabricant:
- HS3004
- Fabricant:
- Renesas Electronics
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Renesas Electronics | |
| Sensor Function | Temperature & Humidity | |
| Output Type | Digital | |
| Interface Type | I2C | |
| Accuracy | ±1.5% | |
| Mounting Type | Surface Mount | |
| Pin Count | 6 | |
| Operating Temperature Range | -40 → +125 °C | |
| Package Type | LGA | |
| Sélectionner tout | ||
|---|---|---|
Marque Renesas Electronics | ||
Sensor Function Temperature & Humidity | ||
Output Type Digital | ||
Interface Type I2C | ||
Accuracy ±1.5% | ||
Mounting Type Surface Mount | ||
Pin Count 6 | ||
Operating Temperature Range -40 → +125 °C | ||
Package Type LGA | ||
The Renesas Electronics HS3004 is a highly-accurate, fully-calibrated relative humidity and temperature sensor. The high accuracy, fast measurement response time, and long-term stability, along with the small package size, makes the HS3003 ideal for a wide number of applications from portable to harsh environments. An integrated calibration and temperature compensation logic provides fully corrected RH and T values via a standard I²C output. The measured data is internally corrected and compensated for accurate operation over a wide range of temperature and humidity levels–user calibration is not required.
RH accuracy: ±2.8% RH typical
Fast RH response time (typical 6 seconds)
Temperature sensor accuracy: ±0.2°C typical (-10 to +80°C)
14-bit resolution: 0.01% RH (typical)
Low power consumption: 1.0μA average (one RH+T measurement per second, 8-bit resolution, 1.8V supply)
Extended supply voltage: 2.3V to 5.5V
Fast RH response time (typical 6 seconds)
Temperature sensor accuracy: ±0.2°C typical (-10 to +80°C)
14-bit resolution: 0.01% RH (typical)
Low power consumption: 1.0μA average (one RH+T measurement per second, 8-bit resolution, 1.8V supply)
Extended supply voltage: 2.3V to 5.5V
