RF Solutions ANT-4HELH44-SMA Whip Omni-Directional Telemetry Antenna with SMA Connector, ISM Band
- N° de stock RS:
- 224-0619
- Référence fabricant:
- ANT-4HELH44-SMA
- Fabricant:
- RF Solutions
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
9,11 €
(TVA exclue)
11,02 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 23 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 9,11 € |
| 10 - 49 | 8,64 € |
| 50 - 99 | 8,20 € |
| 100 - 499 | 7,81 € |
| 500 + | 7,49 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 224-0619
- Référence fabricant:
- ANT-4HELH44-SMA
- Fabricant:
- RF Solutions
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RF Solutions | |
| RF Protocols | ISM Band | |
| Product Type | Telemetry Antenna | |
| Antenna Physical Form | Whip | |
| Connector Type | SMA | |
| Antenna Mount Type | Direct | |
| Antenna Length | 44mm | |
| Gain | 2.5dBi | |
| Maximum Frequency | 433MHz | |
| Minimum Frequency | 430MHz | |
| Connector Gender | Male | |
| Directivity | Omni-Directional | |
| Antenna Internal Construction | Monopole | |
| Standards/Approvals | WEEE, CE, RoHS, EU | |
| Series | ANT-4HELH44 | |
| Sélectionner tout | ||
|---|---|---|
Marque RF Solutions | ||
RF Protocols ISM Band | ||
Product Type Telemetry Antenna | ||
Antenna Physical Form Whip | ||
Connector Type SMA | ||
Antenna Mount Type Direct | ||
Antenna Length 44mm | ||
Gain 2.5dBi | ||
Maximum Frequency 433MHz | ||
Minimum Frequency 430MHz | ||
Connector Gender Male | ||
Directivity Omni-Directional | ||
Antenna Internal Construction Monopole | ||
Standards/Approvals WEEE, CE, RoHS, EU | ||
Series ANT-4HELH44 | ||
- Pays d'origine :
- CN

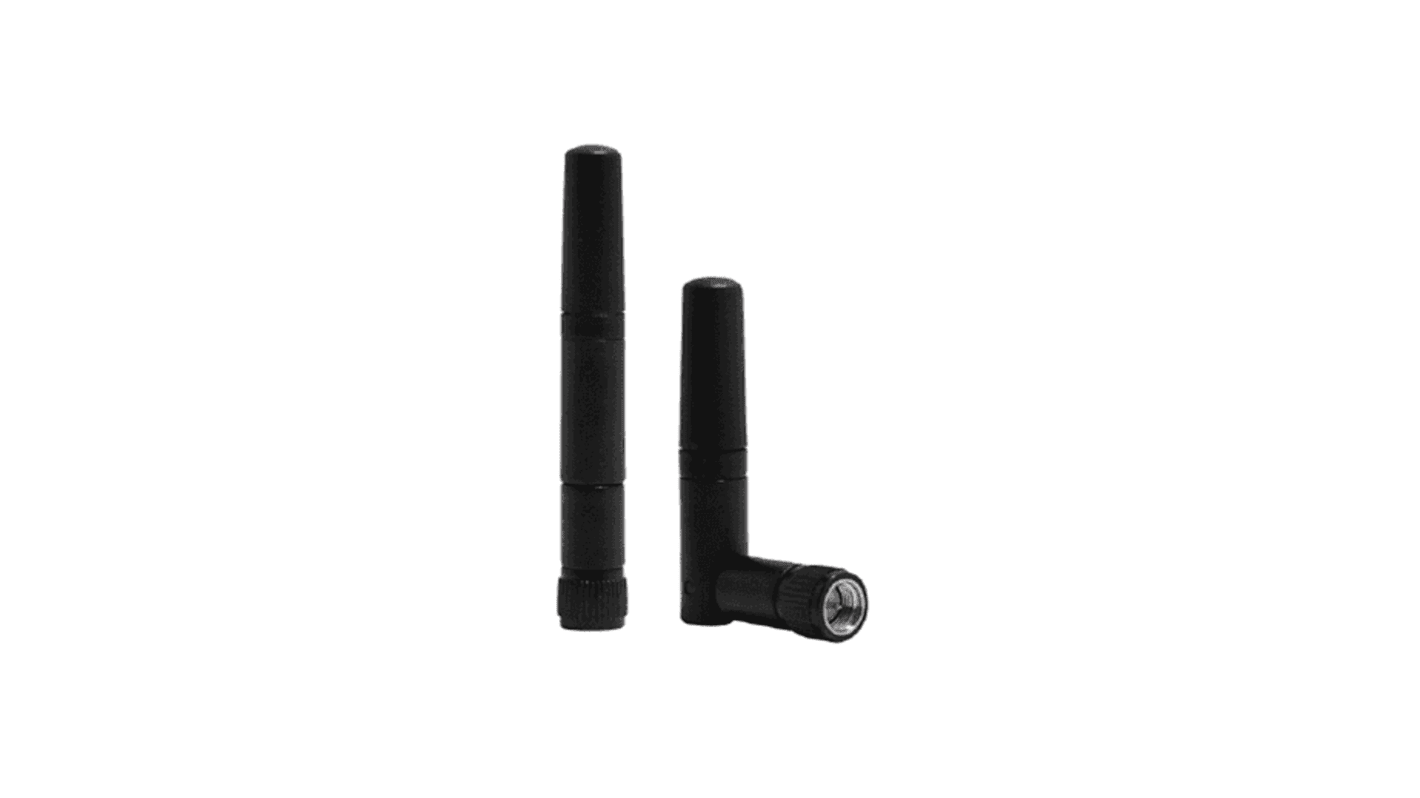

The RF Solutions 2.4GHz compact helical antenna with SMA male fixing. and rugged plastic finish. This ready to operate antenna requires no tuning and provides optimum range and reliability to your application. It has vertical polarisation with 0-90 degrees hinged.
50ohm impedance
Operating temperature –30 to +60oC
Max power 10W
VSWR <2.0
