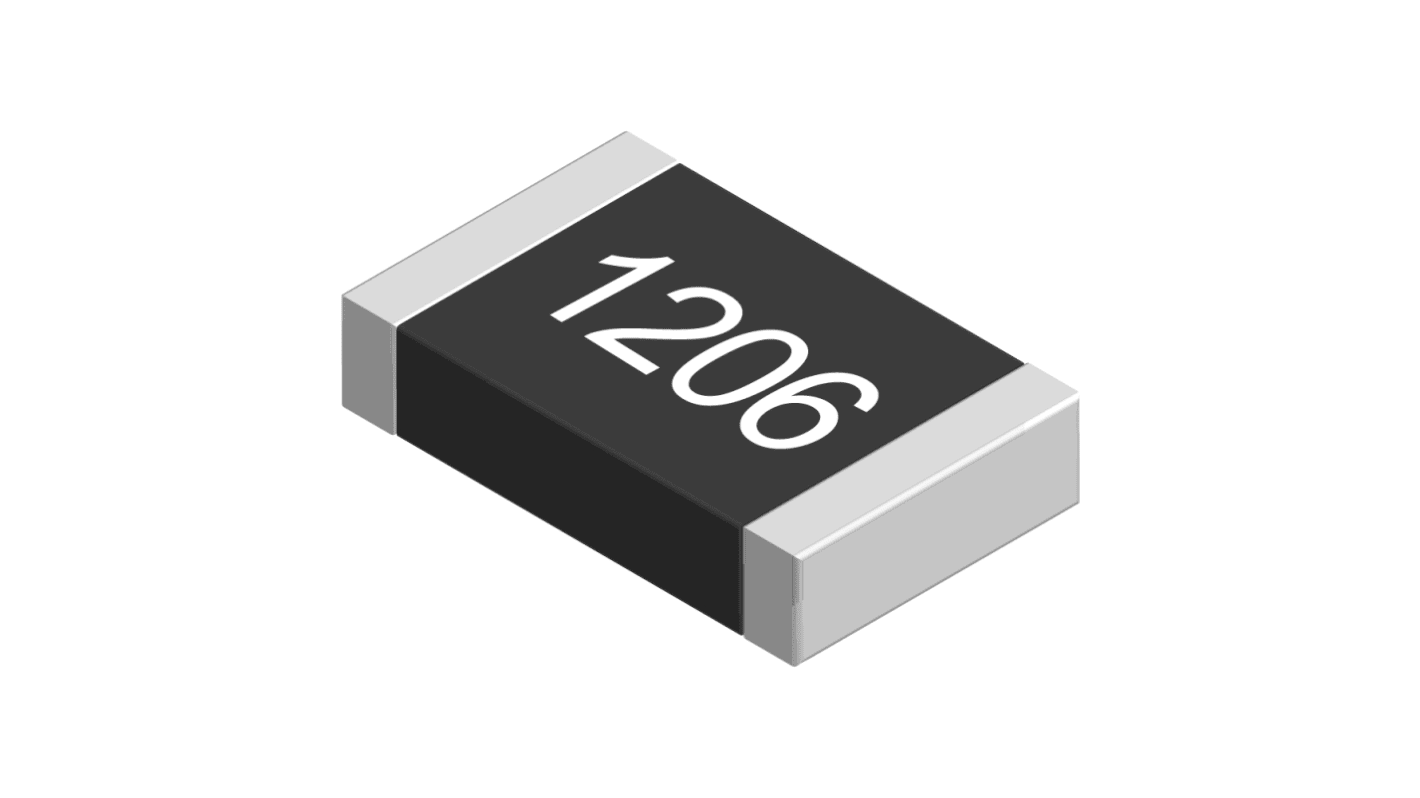

TE Connectivity CRGH 150Ω, 1206 (3216M) Thick Film SMD Resistor ±1% 0.5W
- N° de stock RS:
- 161-5294
- Référence fabricant:
- CRGH1206F150R
- Fabricant:
- TE Connectivity
Offre groupée disponible
Sous-total (1 bobine de 5000 unités)*
115,00 €
(TVA exclue)
140,00 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Dernier stock RS
- 10 000 dernière(s) unité(s), prête(s) à l'envoi d'un autre centre de distribution
Unité | Prix par unité | la bobine* |
|---|---|---|
| 5000 - 20000 | 0,023 € | 115,00 € |
| 25000 - 45000 | 0,022 € | 110,00 € |
| 50000 - 95000 | 0,02 € | 100,00 € |
| 100000 + | 0,019 € | 95,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 161-5294
- Référence fabricant:
- CRGH1206F150R
- Fabricant:
- TE Connectivity
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | TE Connectivity | |
| Resistance | 150Ω | |
| Technology | Thick Film | |
| Package/Case | 1206 (3216M) | |
| Tolerance | ±1% | |
| Power Rating | 0.5W | |
| Temperature Coefficient | ±200ppm/°C | |
| Series | CRGH | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +155°C | |
| Sélectionner tout | ||
|---|---|---|
Marque TE Connectivity | ||
Resistance 150Ω | ||
Technology Thick Film | ||
Package/Case 1206 (3216M) | ||
Tolerance ±1% | ||
Power Rating 0.5W | ||
Temperature Coefficient ±200ppm/°C | ||
Series CRGH | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +155°C | ||
- Pays d'origine :
- TH
1206 Format CRGH Series Resistor 0.5W
CRGH series chip resistors are the version of the CRG in high Power version, for the same case size they are twice on the power rating at 70°C
CRGH series chip resistors are suitable for most applications, including high frequency operation, owing to the short lead structure and low capacitance
CRGH series chip resistors are suitable for most applications, including high frequency operation, owing to the short lead structure and low capacitance
