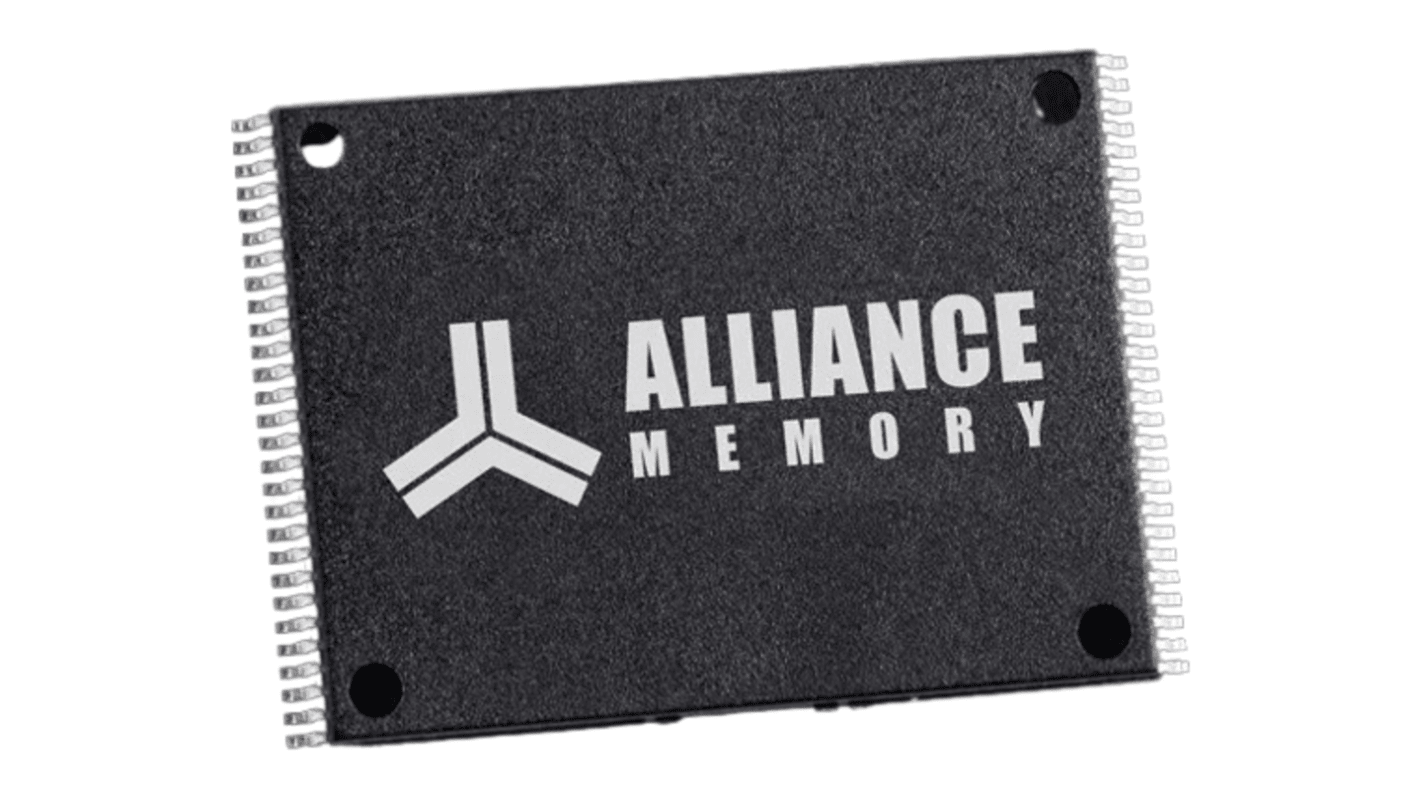

Alliance Memory SRAM, AS6C4008-55SIN- 4 MB
- N° de stock RS:
- 286-347
- Référence fabricant:
- AS6C4008-55SIN
- Fabricant:
- Alliance Memory
Sous-total (1 unité)*
6,86 €
(TVA exclue)
8,30 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 20 juillet 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 6,86 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 286-347
- Référence fabricant:
- AS6C4008-55SIN
- Fabricant:
- Alliance Memory
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Alliance Memory | |
| Memory Size | 4MB | |
| Product Type | SRAM | |
| Organisation | 512k x 8 | |
| Number of Words | 512K | |
| Maximum Random Access Time | 55ns | |
| Minimum Supply Voltage | 2.7V | |
| Timing Type | Asynchronous | |
| Maximum Supply Voltage | 5.5V | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -40°C | |
| Package Type | SOP-32 | |
| Pin Count | 32 | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Series | AS6C4008 | |
| Automotive Standard | No | |
| Supply Current | 60mA | |
| Sélectionner tout | ||
|---|---|---|
Marque Alliance Memory | ||
Memory Size 4MB | ||
Product Type SRAM | ||
Organisation 512k x 8 | ||
Number of Words 512K | ||
Maximum Random Access Time 55ns | ||
Minimum Supply Voltage 2.7V | ||
Timing Type Asynchronous | ||
Maximum Supply Voltage 5.5V | ||
Mount Type Surface | ||
Minimum Operating Temperature -40°C | ||
Package Type SOP-32 | ||
Pin Count 32 | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Series AS6C4008 | ||
Automotive Standard No | ||
Supply Current 60mA | ||
- Pays d'origine :
- TW
The Alliance Memory Low Power CMOS is static random access memory organized as 524288 words by 8 bits. It is fabricated using very high performance, high reliability CMOS technology. Its standby current is stable within the range of operating temperature. It is well designed for very low power system applications and particularly well suited for battery back-up non-volatile memory application. It operates from a single power supply of 2.7V to 5.5V and all inputs and outputs are fully TTL compatible.
Single 2.7V to 5.5V power supply
All outputs TTL compatible
Fully static operation
Tri state output
Data retention voltage 1.5V
