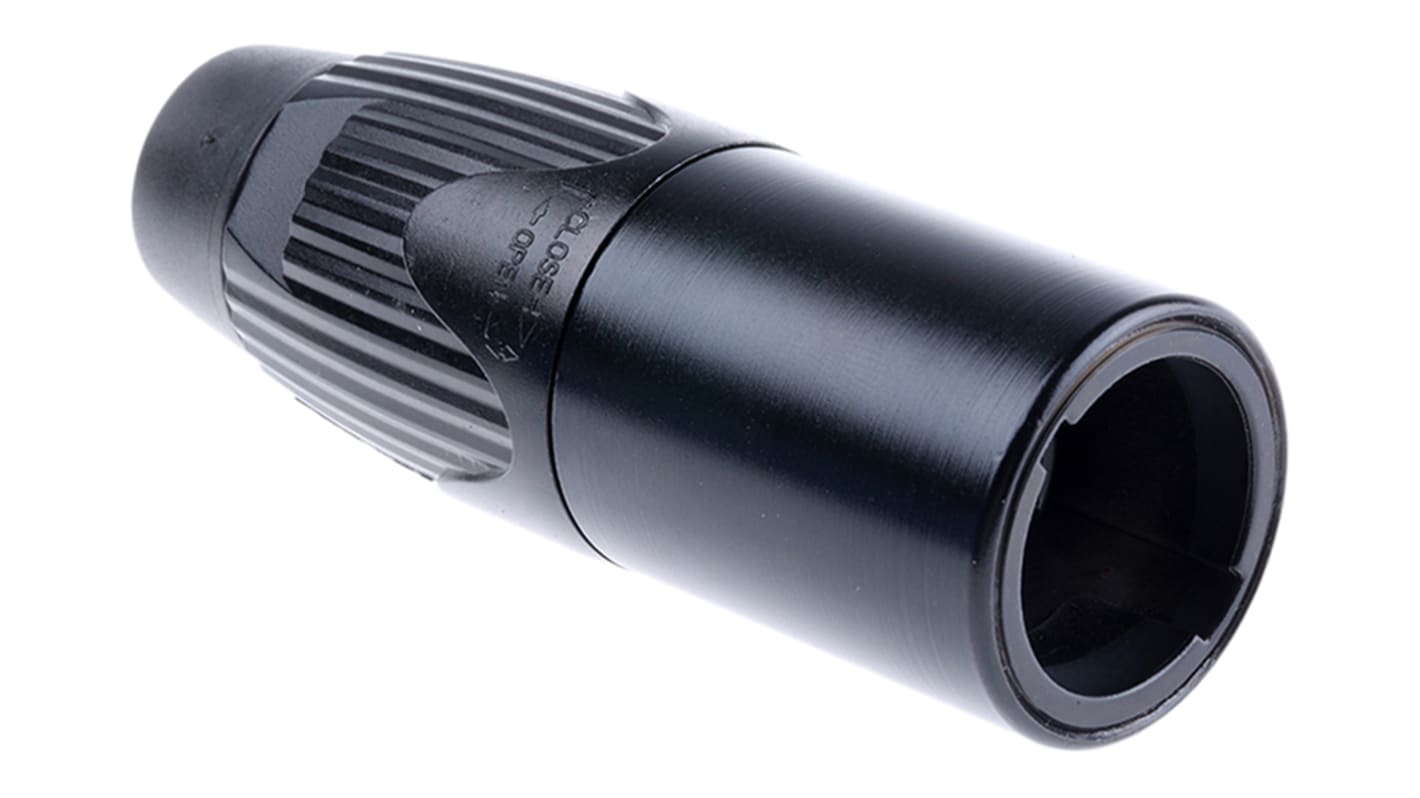

Neutrik RSNLT8MX-BAG Straight Cable Loudspeaker Connector, 8 Way Male, 40A, Solder
- N° de stock RS:
- 771-0458
- Référence fabricant:
- RSNLT8MX-BAG
- Fabricant:
- Neutrik
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau en stock, il n'est plus vendu par le fabricant.
- N° de stock RS:
- 771-0458
- Référence fabricant:
- RSNLT8MX-BAG
- Fabricant:
- Neutrik
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Neutrik | |
| Product Type | Loudspeaker Connector | |
| Number of Contacts | 8 | |
| Orientation | Straight | |
| Current | 40A | |
| Contact Material | Brass, Spring Copper | |
| Mount Type | Cable | |
| Connector Gender | Male | |
| Housing Material | Die Cast Zinc | |
| Contact Plating | Silver | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -30°C | |
| Voltage | 250V ac | |
| Maximum Operating Temperature | 80°C | |
| Contact Gender | Male | |
| Series | SpeakON | |
| Standards/Approvals | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Neutrik | ||
Product Type Loudspeaker Connector | ||
Number of Contacts 8 | ||
Orientation Straight | ||
Current 40A | ||
Contact Material Brass, Spring Copper | ||
Mount Type Cable | ||
Connector Gender Male | ||
Housing Material Die Cast Zinc | ||
Contact Plating Silver | ||
Termination Type Solder | ||
Minimum Operating Temperature -30°C | ||
Voltage 250V ac | ||
Maximum Operating Temperature 80°C | ||
Contact Gender Male | ||
Series SpeakON | ||
Standards/Approvals No | ||
- Pays d'origine :
- LI
speakON TX-Line Connectors
This range of connectors were designed specifically for heavy duty amplifier-loudspeaker applications such as professional touring
8 pole male and female cable connectors
Extremely rugged and durable
Black-chrome metal housing
Chuck type strain relief
Reinforced metal quick lock system for ease and precise locking
Current rating 40A continuous, 50 A audio with 50% duty cycle
Extra large solder contacts for up to 6mm² (AWG10) wires
Will mate with all available speakON products
