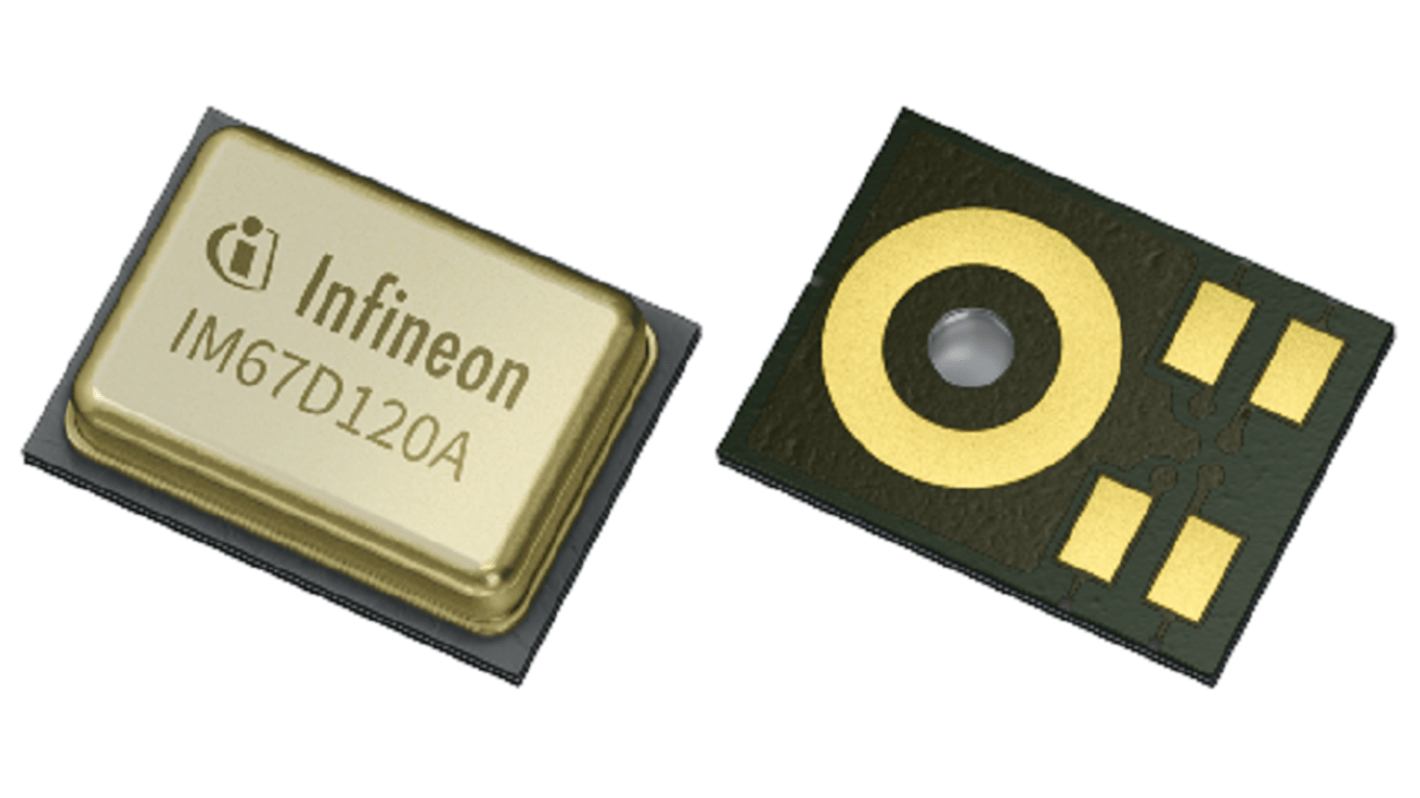

Infineon 5-Pin Microphone, Omni-Directional, Surface, Digital Output, PG-LLGA-5 1.62 V 3.6V
- N° de stock RS:
- 234-4636P
- Référence fabricant:
- IM67D120AXTSA1
- Fabricant:
- Infineon
Bénéficiez d'une remise sur les achats en gros
Ajoutez 100 de plus pour économiser 2%
Consulter les options de prix de grosSous-total 10 unités (conditionné en bande continue)*
20,40 €
(TVA exclue)
24,70 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 702 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | Économie |
|---|---|---|
| 10 - 98 | 2,04 € | - |
| 100 - 248 | 1,99 € | 2% |
| 250 - 498 | 1,955 € | 4% |
| 500 + | 1,92 € | 5% |
*Prix donné à titre indicatif
- N° de stock RS:
- 234-4636P
- Référence fabricant:
- IM67D120AXTSA1
- Fabricant:
- Infineon
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Infineon | |
| Technology | MEMS Microphone | |
| Product Type | Microphone | |
| Frequency Range | 2.9 → 3.3 MHz | |
| Output Type | Digital | |
| Directivity | Omni-Directional | |
| Sensitivity | 1kHz | |
| Signal to Noise Ratio | 67dB | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 1.62V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Package Type | PG-LLGA-5 | |
| Height | 1.5mm | |
| Standards/Approvals | No | |
| Length | 4mm | |
| Pin Count | 5 | |
| Port Location | Bottom | |
| Automotive Standard | AEC-Q103 | |
| Sélectionner tout | ||
|---|---|---|
Marque Infineon | ||
Technology MEMS Microphone | ||
Product Type Microphone | ||
Frequency Range 2.9 → 3.3 MHz | ||
Output Type Digital | ||
Directivity Omni-Directional | ||
Sensitivity 1kHz | ||
Signal to Noise Ratio 67dB | ||
Mount Type Surface | ||
Minimum Supply Voltage 1.62V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Package Type PG-LLGA-5 | ||
Height 1.5mm | ||
Standards/Approvals No | ||
Length 4mm | ||
Pin Count 5 | ||
Port Location Bottom | ||
Automotive Standard AEC-Q103 | ||
The Infineon high performance digital MEMS microphone is designed for applications where low self-noise, wide dynamic range, low distortions and a high acoustic overload point is required. The digital microphone contains an extremely low-noise preamplifier and a high-performance sigma-delta ADC. Different power modes can be selected in order to suit specific current consumption requirements.
Dynamic range of 93dB for best speech performance
Signal to noise ratio of 67dB
<1% total harmonic distortions up to high SPL levels
Acoustic overload point at 120dBSPL
Increased sensitivity for best performance with 16-bit CODECs
Automotive qualification
Close sensitivity and phase matching for use in arrays
Flat frequency response with low frequency roll off and very fast analog to digital conversion speed for best ANC performance
Digital PDM output
Extended availability to match automotive design cycles
