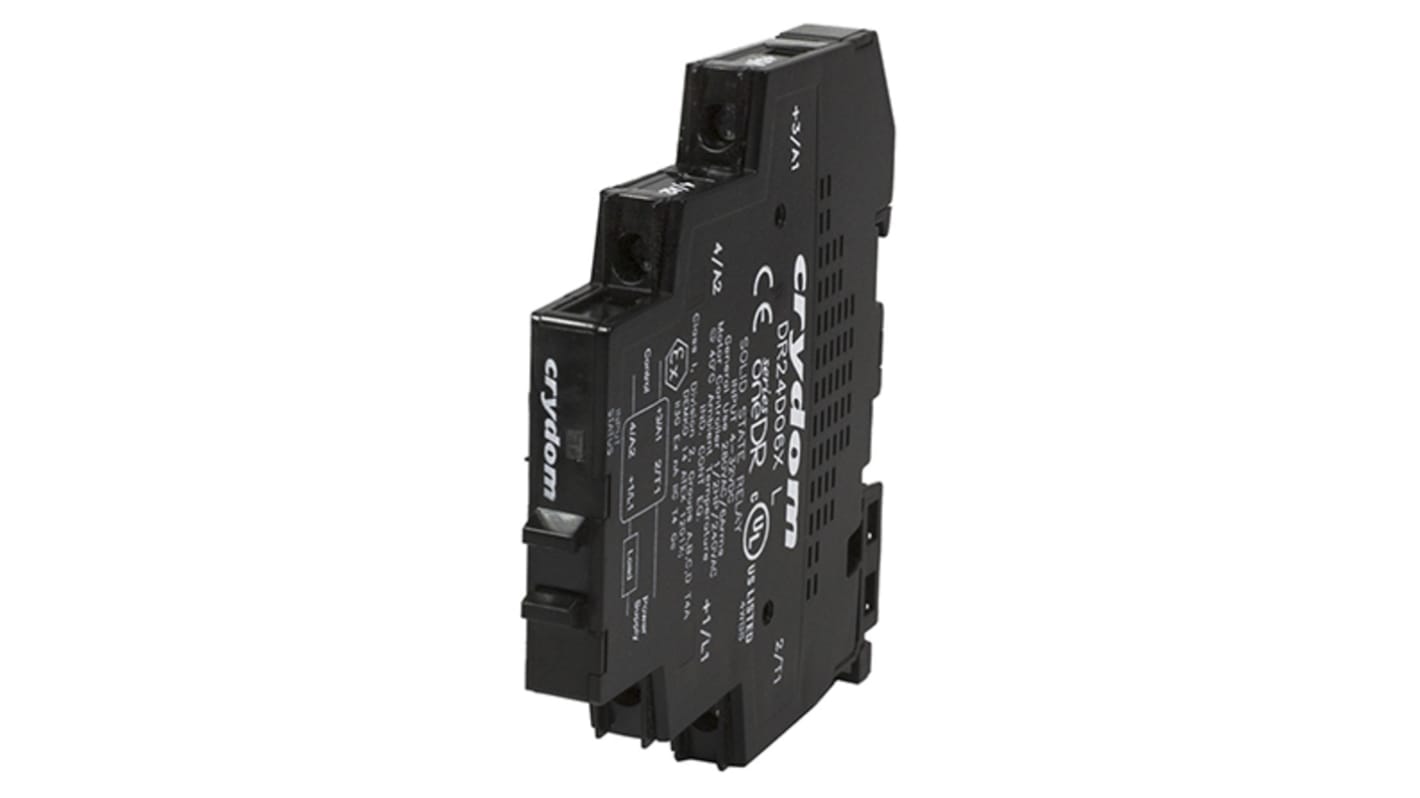

Sensata Crydom DR Series Solid State Interface Relay, 32 V dc Control, 6 A dc Load, DIN Rail Mount
- N° de stock RS:
- 900-8735
- Référence fabricant:
- DR10D06X
- Fabricant:
- Sensata / Crydom
Offre groupée disponible
Sous-total (1 unité)*
79,47 €
(TVA exclue)
96,16 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 10 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 79,47 € |
| 5 - 9 | 75,49 € |
| 10 - 24 | 71,52 € |
| 25 - 49 | 67,54 € |
| 50 + | 63,58 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 900-8735
- Référence fabricant:
- DR10D06X
- Fabricant:
- Sensata / Crydom
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Sensata / Crydom | |
| Maximum Control Voltage | 32 V dc | |
| Maximum Load Current | 6 A dc | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 100 V ac | |
| Minimum Control Voltage | 4 V dc | |
| Control Voltage Range | 4 → 32 V dc | |
| Switching Type | Zero Voltage Turn-On | |
| Load Voltage Range | 1 → 100V dc | |
| Minimum Load Voltage | 1 V ac | |
| Terminal Type | Screw | |
| Output Device | Triac | |
| Minimum Load Current | 0.15 A rms | |
| Depth | 11mm | |
| Series | DR | |
| Length | 87.6mm | |
| Height | 83.7mm | |
| Special Features | Fits Standard 35mm DIN-RAIL, LED Input Status Indicator | |
| Standards Met | ATEX | |
| Minimum Operating Temperature | -30°C | |
| Off State Leakage Current | 0.1 mA | |
| Dimensions | 87.6 x 11 x 83.7mm | |
| Maximum Turn On Time | 1/2 cycle | |
| Capacitance | 10pF | |
| Maximum Operating Temperature | +80°C | |
| Manufacturer Part No. | DR10D06X | |
| Operating Temperature Range | -30 → +80°C | |
| Sélectionner tout | ||
|---|---|---|
Marque Sensata / Crydom | ||
Maximum Control Voltage 32 V dc | ||
Maximum Load Current 6 A dc | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 100 V ac | ||
Minimum Control Voltage 4 V dc | ||
Control Voltage Range 4 → 32 V dc | ||
Switching Type Zero Voltage Turn-On | ||
Load Voltage Range 1 → 100V dc | ||
Minimum Load Voltage 1 V ac | ||
Terminal Type Screw | ||
Output Device Triac | ||
Minimum Load Current 0.15 A rms | ||
Depth 11mm | ||
Series DR | ||
Length 87.6mm | ||
Height 83.7mm | ||
Special Features Fits Standard 35mm DIN-RAIL, LED Input Status Indicator | ||
Standards Met ATEX | ||
Minimum Operating Temperature -30°C | ||
Off State Leakage Current 0.1 mA | ||
Dimensions 87.6 x 11 x 83.7mm | ||
Maximum Turn On Time 1/2 cycle | ||
Capacitance 10pF | ||
Maximum Operating Temperature +80°C | ||
Manufacturer Part No. DR10D06X | ||
Operating Temperature Range -30 → +80°C | ||
- Pays d'origine :
- MX
DIN Rail Mount DR Series Solid State Relays
The SeriesOne DR solid state relays are UL approved for both the ANSI/ISA Class 1 division 2 requirements and ATEX 95 Equipment Directive 94/9/EC ratings. This range of solid state relays have an existing UL 58 rating and European Union EMC plus low voltage directives. The SeriesOne relays can be used in hazardous environments and locations for example, oil and gas exploration, refining and distribution. The other challenging applications available are for the control of heating, lighting, motion, power and many other electrical loads.
ATEX
Ratings 6 and 12 Amps
Fits standard DIN rail 35mm
LED status indicator
AC or DC control
Load voltage ratings of 1 to 60 Vdc, 1 to 1000 Vdc, 24 to 280 Vac, 48 to 600 Vac
Zero crossing resistive loads or random turn on inductive loads output
UK and cUL listed, HP rated CE & RoHS compliant
UL 508 Endurance rated for enhanced reliability
UL class 1 and 11, Division 2 for hazardous locations
Ratings 6 and 12 Amps
Fits standard DIN rail 35mm
LED status indicator
AC or DC control
Load voltage ratings of 1 to 60 Vdc, 1 to 1000 Vdc, 24 to 280 Vac, 48 to 600 Vac
Zero crossing resistive loads or random turn on inductive loads output
UK and cUL listed, HP rated CE & RoHS compliant
UL 508 Endurance rated for enhanced reliability
UL class 1 and 11, Division 2 for hazardous locations
Approvals
ATEX
UK and cUL listed, HP rated CE & RoHS compliant
UL 508 Endurance rated for enhanced reliability
UL class 1 and 11, Division 2 for hazardous locations
UK and cUL listed, HP rated CE & RoHS compliant
UL 508 Endurance rated for enhanced reliability
UL class 1 and 11, Division 2 for hazardous locations
DC Switching
