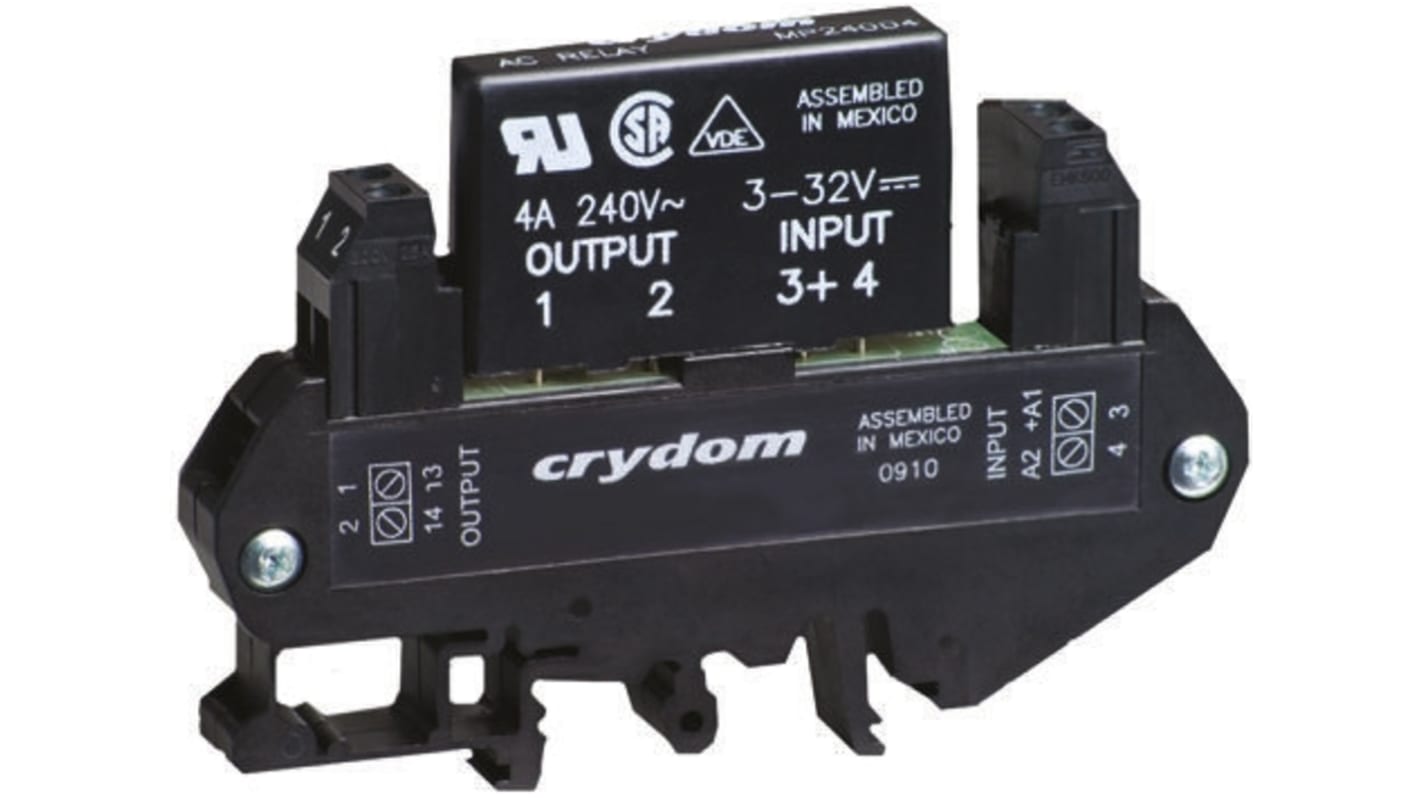

Sensata / Crydom DRA1-MP Series Solid State Interface Relay, 32 V Control, 3 A rms Load, DIN Rail Mount

Voir la catégorie
Indisponible
RS n'aura plus ce produit en stock.
N° de stock RS:
701-8604
Référence fabricant:
DRA1-MP120D3
Fabricant:
Sensata / Crydom
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Sensata / Crydom

Maximum Control Voltage

32 V

Maximum Load Current

3 A rms

Mounting Type

DIN Rail

Maximum Load Voltage

140 V

Minimum Control Voltage

3 V dc

Control Voltage Range

3 → 32 V dc

Switching Type

Zero Cross

Load Voltage Range

12 → 140V ac

Minimum Load Voltage

12 V ac

Terminal Type

Screw

Minimum Load Current

0.02 A

Length

89.6mm

Height

62.2mm

Depth

10mm

Output Device

AC; DC

Series

DRA1-MP

Special Features

Fits Standard 35mm DIN-RAIL, LED Input Status Indicator

Dimensions

89.6 x 10 x 62.2mm

Maximum Turn On Time

8.33ms

Maximum Operating Temperature

+80°C

Off State Leakage Current

5 mA

Capacitance

8pF

Minimum Operating Temperature

-40°C

Manufacturer Part No.

DRA1-MP120D3

Operating Temperature Range

-40 → +80°C

Pays d'origine :
MX

DIN Rail Mounting - DRA1-MP Series


10mm single channel DIN rail mount SSR assembly
AC ratings up to 280 VAC and 4 A
SPST-NO function
3-32 Vdc control
Cage style screw terminals for easy connection
Fits standard 35mm DIN rail


Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
