RS PRO Polyethylene Solder Sleeve Kit 13 mm Cable Diameter 25 Solder Sleeves 1.4 mm Cable Diameter
- N° de stock RS:
- 872-6296
- Fabricant:
- RS PRO
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 boîte de 25 unités)*
31,69 €
(TVA exclue)
38,34 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 28 unité(s) prête(s) à être expédiée(s)
- Plus 109 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Boîte(s) | La Boite | Prix par unité* |
|---|---|---|
| 1 - 14 | 31,69 € | 1,268 € |
| 15 - 49 | 30,06 € | 1,202 € |
| 50 + | 29,03 € | 1,161 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 872-6296
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Product Type | Solder Sleeve Kit | |
| Material | Polyethylene | |
| Minimum Cable Diameter | 1.4mm | |
| Maximum Cable Diameter | 13mm | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS Compliant | |
| Contents | 25 Solder Sleeves | |
| Series | RS PRO | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Product Type Solder Sleeve Kit | ||
Material Polyethylene | ||
Minimum Cable Diameter 1.4mm | ||
Maximum Cable Diameter 13mm | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS Compliant | ||
Contents 25 Solder Sleeves | ||
Series RS PRO | ||
- Pays d'origine :
- CN

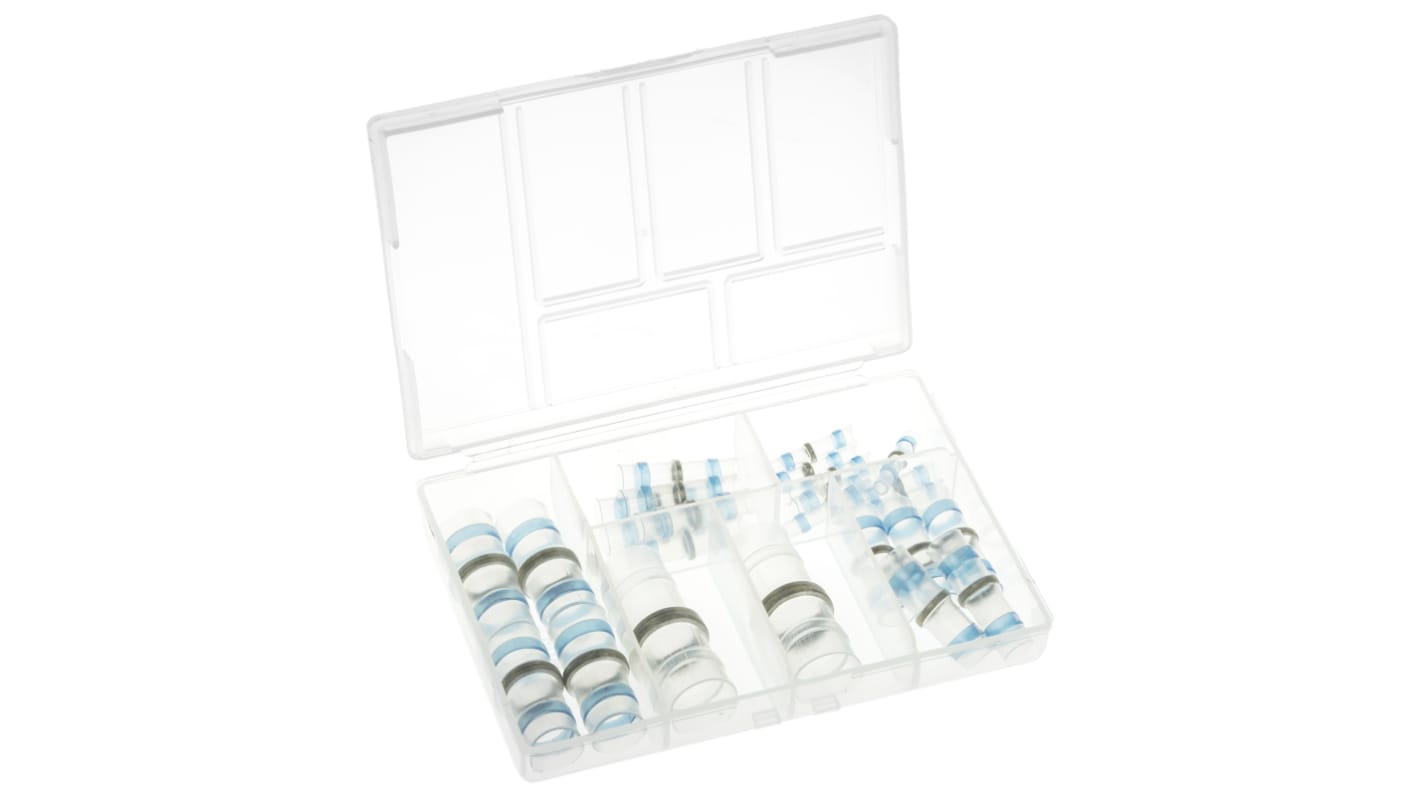

RS PRO Solder Sleeve Kit, 1.4 mm → 13 mm
Connect electrical cabling together quickly with this RS PRO solder sleeve kit. The sleeves provide an insulated, moisture-resistant connection between two or more wires and will protect your conductors from environmental damage. Simply apply heat with a tool such as a blow torch to secure the join.
The components are made from low-density polyethylene (PE) which means your spliced area will be flexible and not crack. This material also has good resistance to chemicals and impact. The unit consists of 25 transparent sleeves so it's easy to inspect your wiring without doing damage to the joining seal.
Connectors like these make it easier to securely attach a ground wire to the sheathing braid of a sheathing cable. Keep this kit on hand to connect conductors over a wide diameter range from 1.4 mm to 13 mm.
Features and Benefits
• Operating temperature range of -55°C to +125°C
• Shrinkage ratio of 2:1
• Easy control of soldering process
• Low temperature solder sleeve
• GAST series type
• Solder sleeve assortment kit
• RoHS (Restriction of Hazardous Substances) compliant
