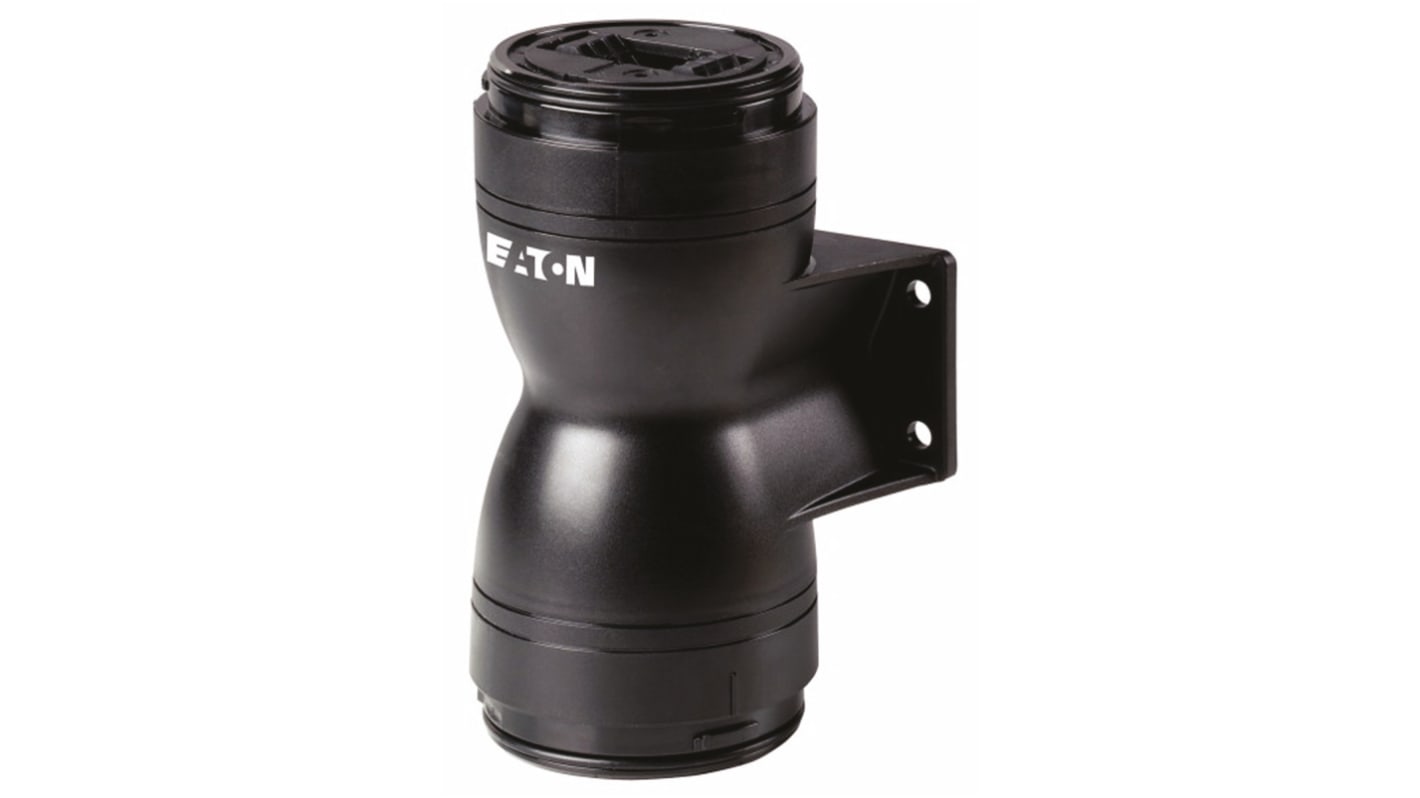

Eaton SL7 Series Terminal Unit 230V ac/dc, AC/DC, IP66
- N° de stock RS:
- 818-4036
- Référence fabricant:
- 171451 SL7-CB-D
- Fabricant:
- Eaton
Sous-total (1 unité)*
68,74 €
(TVA exclue)
83,18 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 1 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 68,74 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 818-4036
- Référence fabricant:
- 171451 SL7-CB-D
- Fabricant:
- Eaton
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Eaton | |
| Product Type | Terminal Unit | |
| Series | SL7 | |
| Component Type | Termination Base | |
| Multifunction | No | |
| Current Type | AC/DC | |
| Mount Type | Wall | |
| Maximum Supply Voltage | 230V ac/dc | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 60°C | |
| Height | 84mm | |
| Standards/Approvals | UL, CSA | |
| Hazardous Area Certification | No | |
| Base Diameter | 70mm | |
| IP Rating | IP66 | |
| Housing Colour | Black | |
| Sélectionner tout | ||
|---|---|---|
Marque Eaton | ||
Product Type Terminal Unit | ||
Series SL7 | ||
Component Type Termination Base | ||
Multifunction No | ||
Current Type AC/DC | ||
Mount Type Wall | ||
Maximum Supply Voltage 230V ac/dc | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 60°C | ||
Height 84mm | ||
Standards/Approvals UL, CSA | ||
Hazardous Area Certification No | ||
Base Diameter 70mm | ||
IP Rating IP66 | ||
Housing Colour Black | ||
Statut RoHS : Exempté
- Pays d'origine :
- AT
Eaton SL7 Modular Signal Towers
The Eaton SL7 modular safety towers improve the safety, productivity and availability of your machines and equipment. Designed with an attractive rounded shape these new signal towers also feature a 100 dB acoustic module for improved audibility and IP66 rated fixtures that are impervious even to strong jets of water.
The SL7 signal towers new rapid mounting and wiring system allows you to change the composition of the individual signal colours simply and quickly. The mounting adapter uses a bayonet fitting, so electrical wiring only needs to be connected once, meaning the lower portion can remain on the machine.
Various mounting options are available to accommodate applications with limited ceiling clearance or require different signals on the left or right side.
Type approvals and certifications for Europe and North American have already been obtained, and ship classifications and CCC are currently pending.
Features and Benefits
• Red, yellow, green, blue, clear and orange (amber) colours available for the international market
• Lighting variants include continuous light, flashing light, strobe light and variable strobe light
• LEDs and high performance LEDs for greater brightness
• Acoustic modules with up to 8 different signals and adjustable volume levels for optimal adaptation to any ambient conditions
• High performance LEDs for extra brightness
• IP66 rated for protection against strong jets of water from any direction
• Modules can be changed easily with a simple twist
• Bayonet fitting for quick and easy mounting and dismantling
• Transport cover for cables and connections
• Available in 24 V, 120 V and 230 V versions
Note
Eaton formerly known as Moeller
Standards
IEC/EN 60947-5-1.
