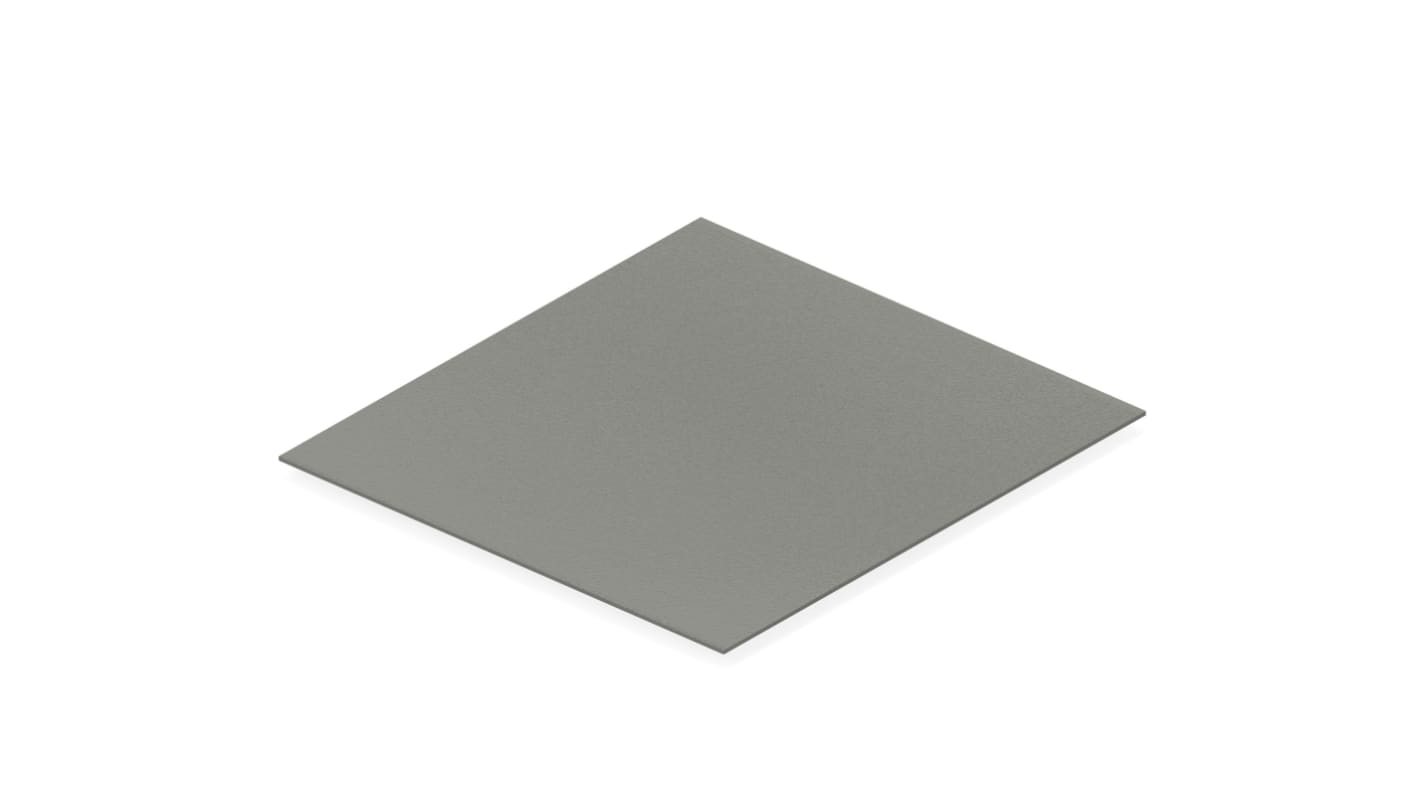

TE Connectivity Nickel-plated Graphite, Silicone Shielding Sheet, 300mm x 300mm x 1.2mm

Voir la catégorie

Sous-total (1 sachet de 10 unités)*

1 704,75 €

(TVA exclue)

2 062,75 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Informations sur le stock actuellement non accessibles
Unité
Prix par unité
Le Sachet*
10 +170,475 €1 704,75 €

*Prix donné à titre indicatif

N° de stock RS:
255-7215
Référence fabricant:
1212-SNG-0012
Fabricant:
TE Connectivity
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

TE Connectivity

Material

Nickel-plated Graphite, Silicone

Fixing Method

Surface Mount

Series

Kemtron 1212

Thickness

1.2mm

Length

300mm

Width

300mm

Pays d'origine :
GB
The TE Connectivity shielding sheet is used to reduce electromagnetic interference.It is a practice of reducing the electromagnetic field in a space with the help of barriers made up of conductive or magnetic materials.The conductive elastomers are fully cured silicones or fluorosilicone loaded with a variety of highly conductive particles providing superior EMI/RFI shielding performance combined with excellent environmental sealing. Sheet size-300mm sq x 1.2mm thick.

Conductive sheet
The sheet consist of a silicone as a binding material and nickel plated graphite as a filler material
Operating temperature ranges between -55 to 160 °C
Maximum volume resistivity is 0.05 Ω.cm
Closing Force is 15 N/cm²
