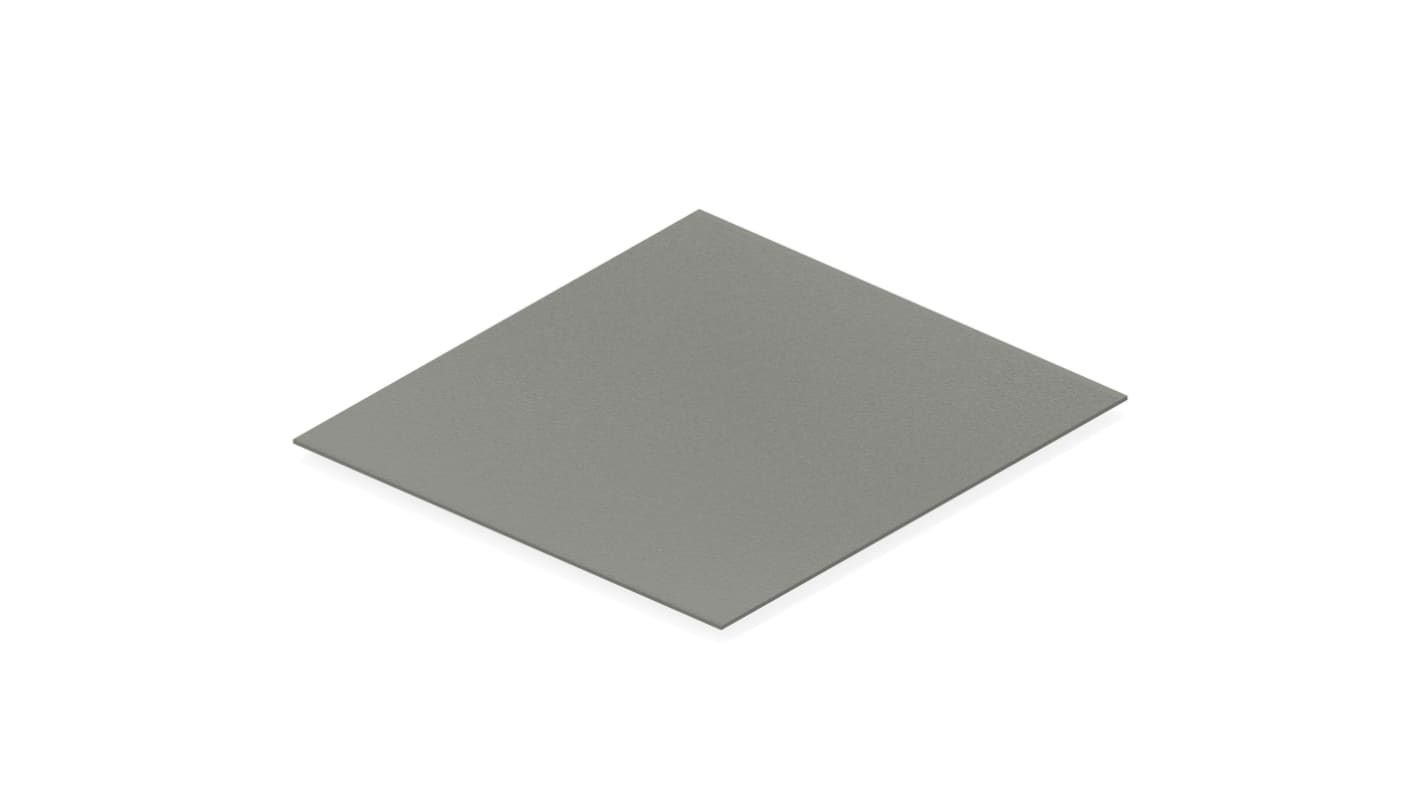

TE Connectivity Nickel-plated Graphite, Silicone Shielding Sheet, 150mm x 150mm x 0.8mm
- N° de stock RS:
- 255-7204
- Référence fabricant:
- 1210-SNG-0008
- Fabricant:
- TE Connectivity
Offre groupée disponible
Sous-total (1 unité)*
54,96 €
(TVA exclue)
66,50 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- 19 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 54,96 € |
| 5 + | 51,65 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 255-7204
- Référence fabricant:
- 1210-SNG-0008
- Fabricant:
- TE Connectivity
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | TE Connectivity | |
| Material | Nickel-plated Graphite, Silicone | |
| Fixing Method | Surface Mount | |
| Thickness | 0.8mm | |
| Series | Kemtron 1210 | |
| Length | 150mm | |
| Width | 150mm | |
| Sélectionner tout | ||
|---|---|---|
Marque TE Connectivity | ||
Material Nickel-plated Graphite, Silicone | ||
Fixing Method Surface Mount | ||
Thickness 0.8mm | ||
Series Kemtron 1210 | ||
Length 150mm | ||
Width 150mm | ||
The TE Connectivity shielding sheet is used to reduce electromagnetic interference.It is a practice of reducing the electromagnetic field in a space with the help of barriers made up of conductive or magnetic materials.The conductive elastomers are fully cured silicones or fluorosilicone loaded with a variety of highly conductive particles providing superior EMI/RFI shielding performance combined with excellent environmental sealing. Sheet size-150mm sq x 0.8mm thick.
Conductive sheet
The sheet consist of a silicone as a binding material and nickel plated graphite as a filler material
Operating temperature ranges between -55 to 160 °C
Maximum volume resistivity is 0.05 Ω.cm
Closing Force is 10 N/cm²
The sheet consist of a silicone as a binding material and nickel plated graphite as a filler material
Operating temperature ranges between -55 to 160 °C
Maximum volume resistivity is 0.05 Ω.cm
Closing Force is 10 N/cm²
