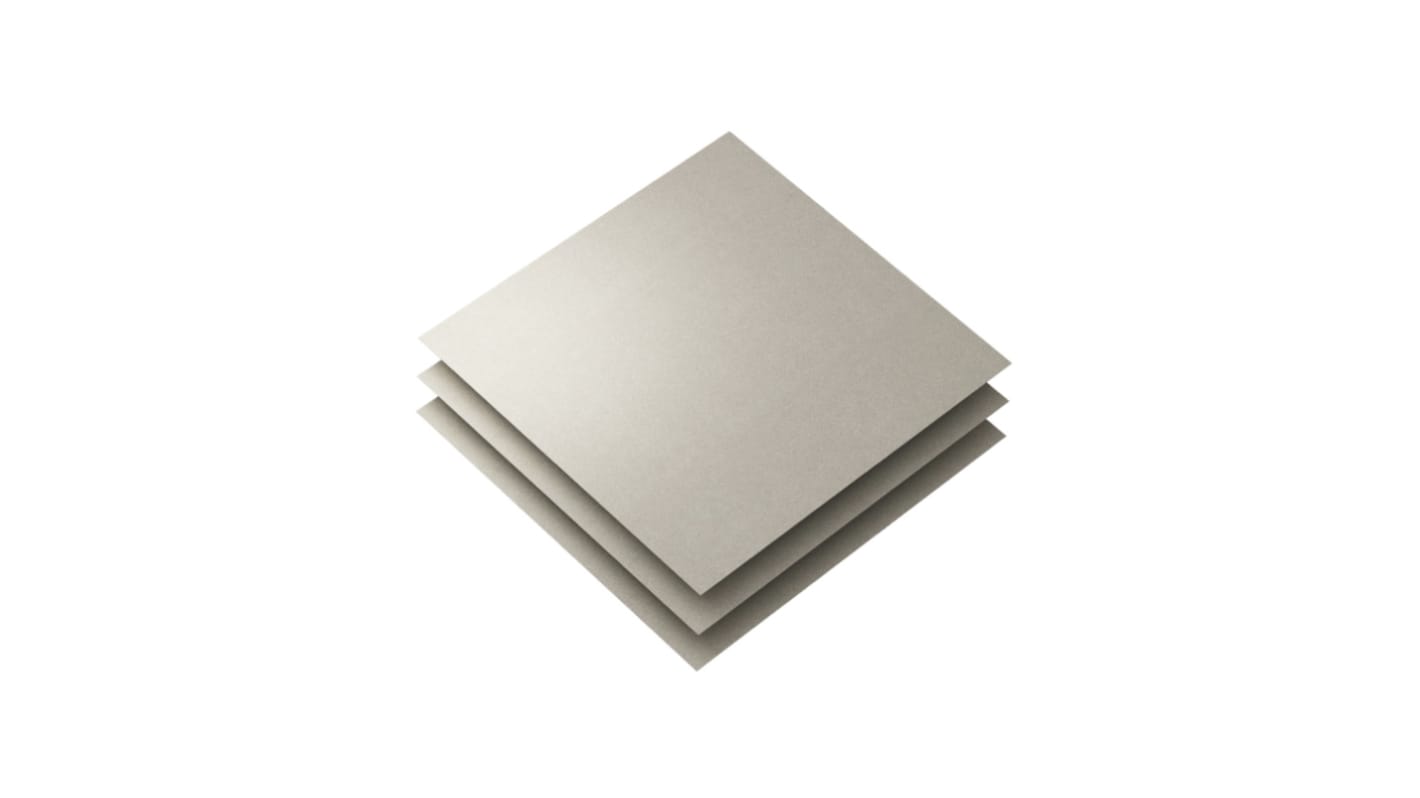

KEMET Polymer, Magnetic Shielding Sheet, 240mm x 80mm x 0.075mm
- N° de stock RS:
- 181-5935
- Référence fabricant:
- FG1(75)-240X80T2900
- Fabricant:
- KEMET
Sous-total (1 unité)*
11,03 €
(TVA exclue)
13,35 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 22 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 11,03 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 181-5935
- Référence fabricant:
- FG1(75)-240X80T2900
- Fabricant:
- KEMET
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | KEMET | |
| Material | Polymer base blended with micron sized magnetic powders | |
| Fixing Method | Self-Adhesive | |
| Series | FG1 | |
| Thickness | 0.075mm | |
| Length | 240mm | |
| Width | 80mm | |
| Maximum Operating Temperature | +105°C | |
| Peak Frequency | 10GHz | |
| Operating Temperature Range | -40 → +105 °C | |
| Minimum Shielded Frequency | 1000MHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Shielded Frequency | 1GHz | |
| Sélectionner tout | ||
|---|---|---|
Marque KEMET | ||
Material Polymer base blended with micron sized magnetic powders | ||
Fixing Method Self-Adhesive | ||
Series FG1 | ||
Thickness 0.075mm | ||
Length 240mm | ||
Width 80mm | ||
Maximum Operating Temperature +105°C | ||
Peak Frequency 10GHz | ||
Operating Temperature Range -40 → +105 °C | ||
Minimum Shielded Frequency 1000MHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Shielded Frequency 1GHz | ||
- Pays d'origine :
- JP
The KEMET Noise Suppression Sheet Flex Suppressor® is effectively designed for high frequency noise that is generated from the electronic devices. The flexible sheet is a polymer base, blended with micron-sized magnetic powders dispersed throughout the material. These sheets are effective for electromagnetic wave and resonance suppression, and can be cut into a variety of shapes and sizes.
Electromagnetic wave suppression – the electromagnetic wave enters through the sheet and is suppressed by losing its magnetic structure
Resonance suppression – controls the high frequency current and suppresses unwanted electromagnetic resonance by creating impedance
Wide range of frequencies available from MHz band to GHz band
Thin, flexible material used in portable equipment
Virtually no limitation to where it can be used
Less time required for installation
Easily cut into any shape
Halogen-free
Resonance suppression – controls the high frequency current and suppresses unwanted electromagnetic resonance by creating impedance
Wide range of frequencies available from MHz band to GHz band
Thin, flexible material used in portable equipment
Virtually no limitation to where it can be used
Less time required for installation
Easily cut into any shape
Halogen-free
