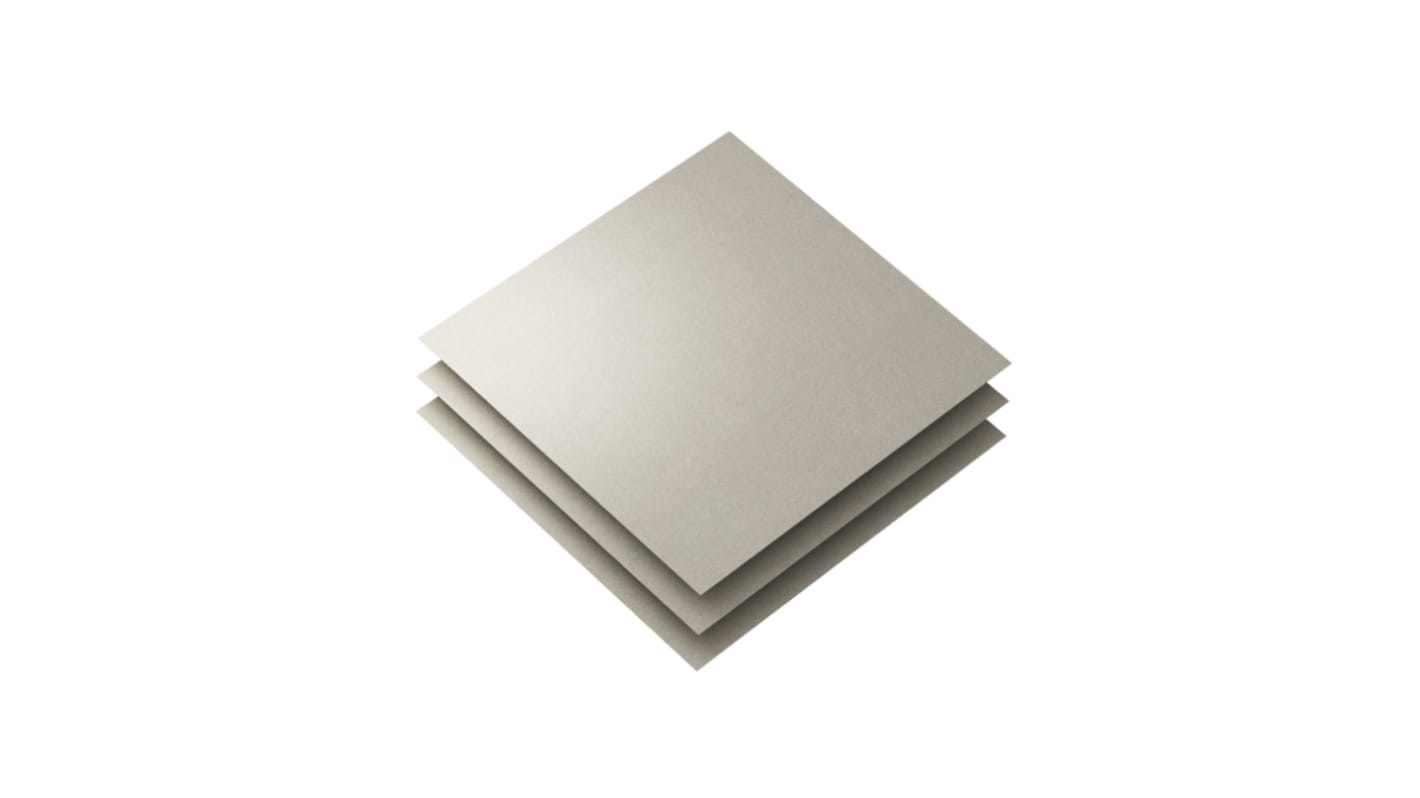

KEMET Polymer, Magnetic Shielding Sheet, 240mm x 240mm x 1mm
- N° de stock RS:
- 181-5895
- Référence fabricant:
- EFS(10)-240X240T0800
- Fabricant:
- KEMET
Offre groupée disponible
Sous-total (1 unité)*
190,77 €
(TVA exclue)
230,83 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 30 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 190,77 € |
| 5 + | 183,14 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 181-5895
- Référence fabricant:
- EFS(10)-240X240T0800
- Fabricant:
- KEMET
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | KEMET | |
| Material | Polymer base blended with micron sized magnetic powders | |
| Fixing Method | Self-Adhesive | |
| Thickness | 1mm | |
| Series | EFS | |
| Length | 240mm | |
| Width | 240mm | |
| Peak Frequency | 40GHz | |
| Operating Temperature Range | -40 → +105 °C | |
| Maximum Operating Temperature | +105°C | |
| Maximum Shielded Frequency | 1GHz | |
| Minimum Operating Temperature | -40°C | |
| Minimum Shielded Frequency | 1000MHz | |
| Sélectionner tout | ||
|---|---|---|
Marque KEMET | ||
Material Polymer base blended with micron sized magnetic powders | ||
Fixing Method Self-Adhesive | ||
Thickness 1mm | ||
Series EFS | ||
Length 240mm | ||
Width 240mm | ||
Peak Frequency 40GHz | ||
Operating Temperature Range -40 → +105 °C | ||
Maximum Operating Temperature +105°C | ||
Maximum Shielded Frequency 1GHz | ||
Minimum Operating Temperature -40°C | ||
Minimum Shielded Frequency 1000MHz | ||
- Pays d'origine :
- JP
The KEMET Noise Suppression Sheet Flex Suppressor® is effectively designed for high frequency noise that is generated from the electronic devices. The flexible sheet is a polymer base, blended with micron-sized magnetic powders dispersed throughout the material. These sheets are effective for electromagnetic wave and resonance suppression, and can be cut into a variety of shapes and sizes.
Electromagnetic wave suppression – the electromagnetic wave enters through the sheet and is suppressed by losing its magnetic structure
Resonance suppression – controls the high frequency current and suppresses unwanted electromagnetic resonance by creating impedance
Wide range of frequencies available from MHz band to GHz band
Thin, flexible material used in portable equipment
Virtually no limitation to where it can be used
Less time required for installation
Easily cut into any shape
Halogen-free
Resonance suppression – controls the high frequency current and suppresses unwanted electromagnetic resonance by creating impedance
Wide range of frequencies available from MHz band to GHz band
Thin, flexible material used in portable equipment
Virtually no limitation to where it can be used
Less time required for installation
Easily cut into any shape
Halogen-free
