Sensirion Digital Humidity and Temperature Module Module for SCC30-DB

Voir la catégorie
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau en stock, il n'est plus vendu par le fabricant.
N° de stock RS:
195-0683
Référence fabricant:
SEK-SCC30-DB-Sensor
Fabricant:
Sensirion
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Sensirion

Product Type

Sensor Development Tool

Featured Device

SCC30-DB

Kit Classification

Module

Standards/Approvals

RoHS

Kit Name

Digital Humidity and Temperature Module

Pays d'origine :
CH

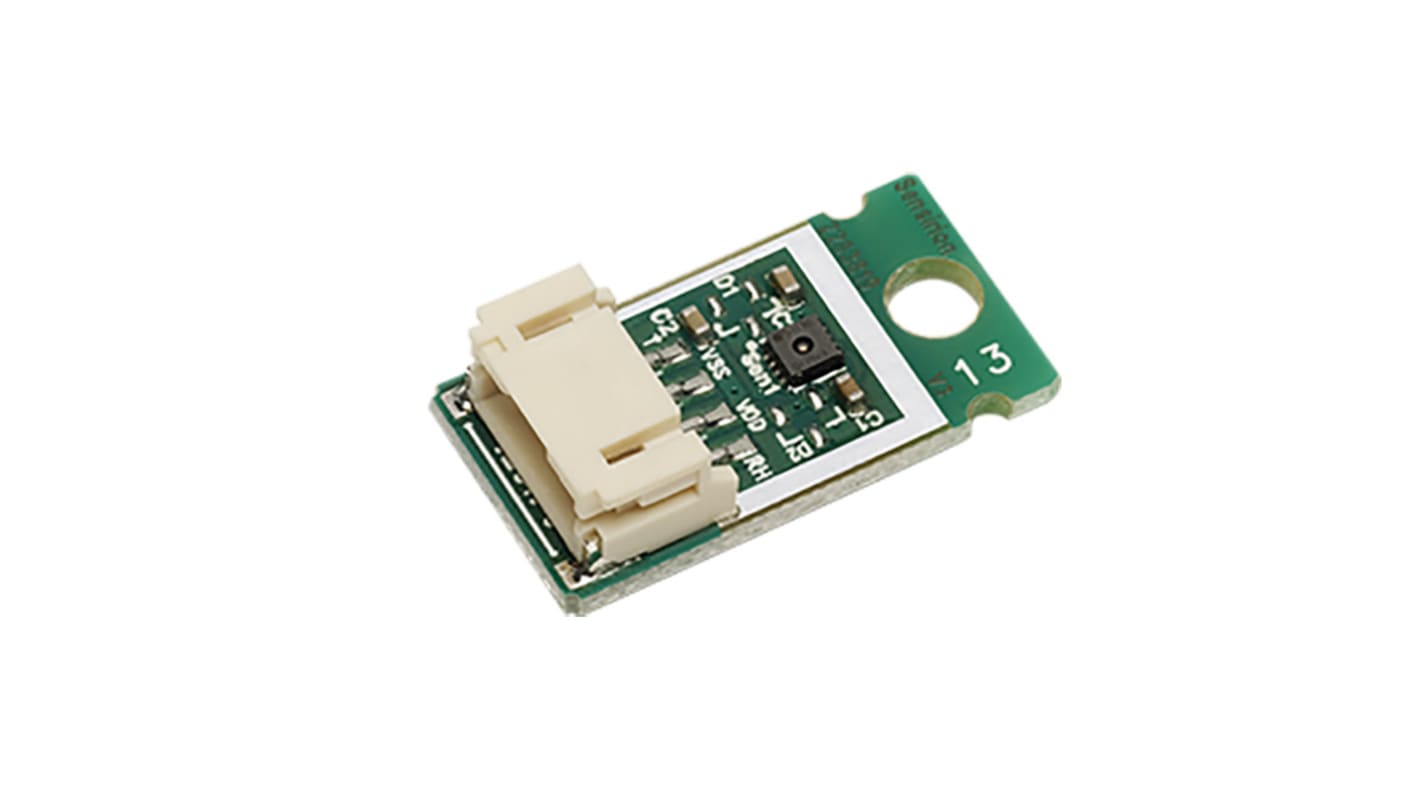

With the SCC30, customers can place a humidity and temperature sensor anywhere in a device and connect it to the main board with a cable without having to spend design resources for creating an own sensor module. Based on Sensirion’s experience and expertise in environmental sensing the SCC30 is optimized for easy design-in and sensing performance. The SCC30 offers superior sensor performance of capacitive type sensor elements and a very attractive price/performance ratio due to Sensirion’s latest generation of highly integrated humidity and temperature sensors SHT3x.

The module provides high reliability and excellent long-term stability, a broad supply voltage range of 2.4 to 5.5V and delivers fully calibrated and processed measurement values through an I2C interface. The compact design with connector and easy-to-use digital interface make the SCC30 a cost-effective and versatile plug & play solution for a wide range of applications.
