Phoenix Contact Male 3 way Straight Plug M8 to Free Cable End Sensor Actuator Cable, 1 m
- N° de stock RS:
- 280-695
- Référence fabricant:
- 1500198
- Fabricant:
- Phoenix Contact
Offre groupée disponible
Sous-total (1 unité)*
8,78 €
(TVA exclue)
10,62 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 09 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 8,78 € |
| 10 - 24 | 8,08 € |
| 25 + | 7,30 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 280-695
- Référence fabricant:
- 1500198
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Series | 15001 | |
| Product Type | Sensor Actuator Cable | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Black, Grey | |
| Cable Length | 1m | |
| Connector Type A | Straight Plug M8 | |
| Connector Gender A | Male | |
| Number of Contacts A | 3 | |
| Connector Type B | Free Cable End | |
| Voltage | 48 V ac, 60 V dc | |
| IP Rating | IP65, IP67, IP68 | |
| Standards/Approvals | cUL Listed, cULus Listed, EAC-RoHS, IEC 61076-2-104, RoHS, UL Listed | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Series 15001 | ||
Product Type Sensor Actuator Cable | ||
Jacket Material Polyurethane | ||
Jacket Colour Black, Grey | ||
Cable Length 1m | ||
Connector Type A Straight Plug M8 | ||
Connector Gender A Male | ||
Number of Contacts A 3 | ||
Connector Type B Free Cable End | ||
Voltage 48 V ac, 60 V dc | ||
IP Rating IP65, IP67, IP68 | ||
Standards/Approvals cUL Listed, cULus Listed, EAC-RoHS, IEC 61076-2-104, RoHS, UL Listed | ||
- Pays d'origine :
- DE

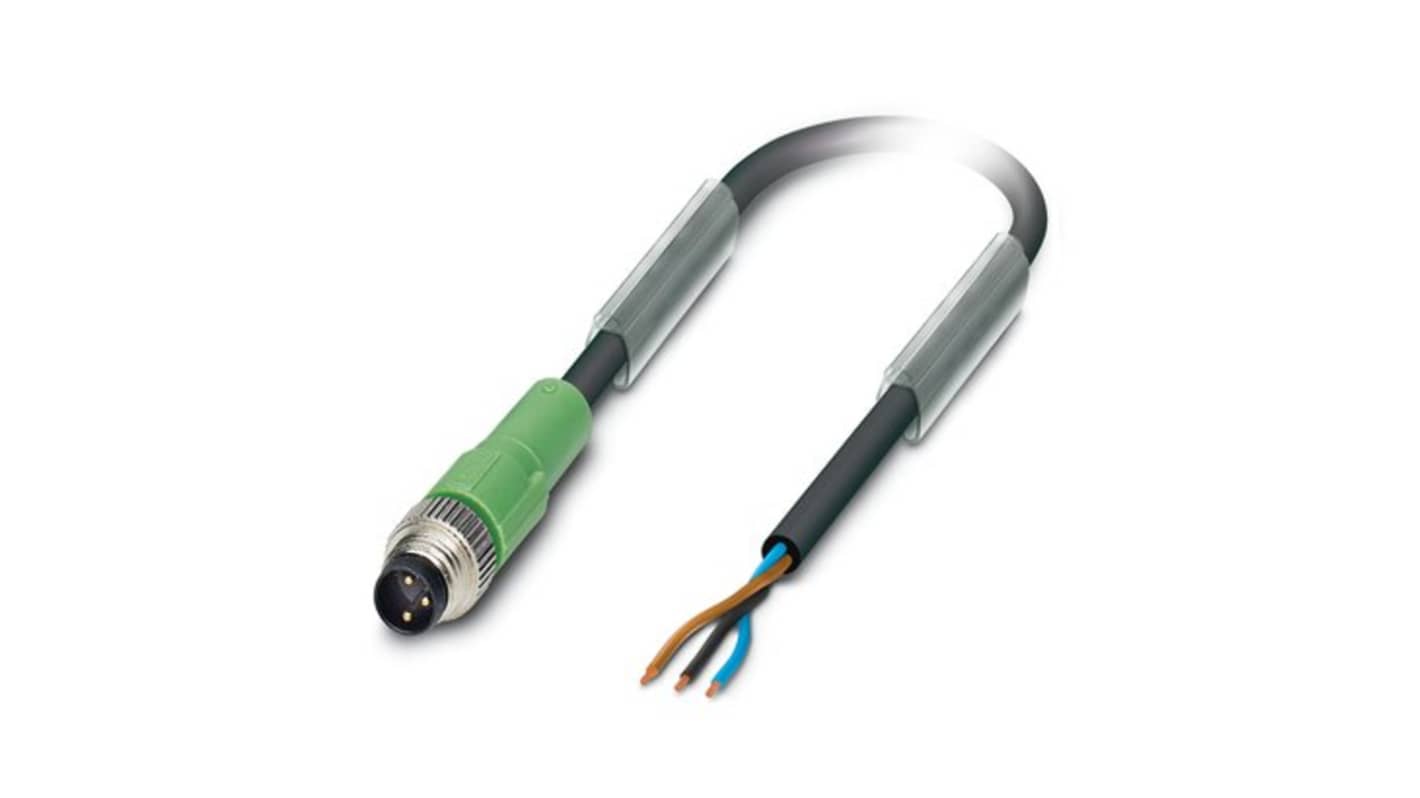

The Phoenix Contact Sensor and actuator cable is designed for seamless integration into a variety of standard applications, providing reliable and efficient connectivity. Boasting a three-position configuration, it features a straight M8 plug and a free cable end, allowing for versatile installation options. Its halogen-free PUR material ensures durability and protection against harsh environmental conditions, making it ideal for demanding industrial settings.
Constructed with materials resistant to oils acids and UV exposure for longevity
IP67 rating for protection against dust and immersion in water
Simplifies installation with a straightforward plug and play design
Included dimensional drawings for easy integration into various applications
