Schneider Electric Handle Selector Switch - (1 NO/1 NC) 30.5 mm Cutout Diameter Illuminated 2 Positions
- N° de stock RS:
- 276-2684
- Référence fabricant:
- XB5FK123M5C0
- Fabricant:
- Schneider Electric
Sous-total (1 unité)*
51,05 €
(TVA exclue)
61,77 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 03 avril 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 51,05 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 276-2684
- Référence fabricant:
- XB5FK123M5C0
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Product Type | Selector Switch | |
| Number of Positions | 2 | |
| Actuator Type | Handle | |
| Contact Configuration | 1 NO/1 NC | |
| IP Rating | IP67, IP66 | |
| Angle of Throw | 90 ° | |
| Series | Harmony XB5 | |
| Cutout Diameter | 30.5mm | |
| Terminal Type | Screw Clamp | |
| Illuminated | Yes | |
| Standards/Approvals | NEMA 4X, CSA C22.2 No 14, CSA, UL, REACH, NEMA 13, IEC 60947-5-1, UL 508, RoHS, IEC 60947-5-4, IEC 60947-1, JIS C8201-5-1, IP67, IP66, JIS C8201-1 | |
| Switch Operation | Stay Put | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Product Type Selector Switch | ||
Number of Positions 2 | ||
Actuator Type Handle | ||
Contact Configuration 1 NO/1 NC | ||
IP Rating IP67, IP66 | ||
Angle of Throw 90 ° | ||
Series Harmony XB5 | ||
Cutout Diameter 30.5mm | ||
Terminal Type Screw Clamp | ||
Illuminated Yes | ||
Standards/Approvals NEMA 4X, CSA C22.2 No 14, CSA, UL, REACH, NEMA 13, IEC 60947-5-1, UL 508, RoHS, IEC 60947-5-4, IEC 60947-1, JIS C8201-5-1, IP67, IP66, JIS C8201-1 | ||
Switch Operation Stay Put | ||
Statut RoHS : Exempté
- Pays d'origine :
- FR

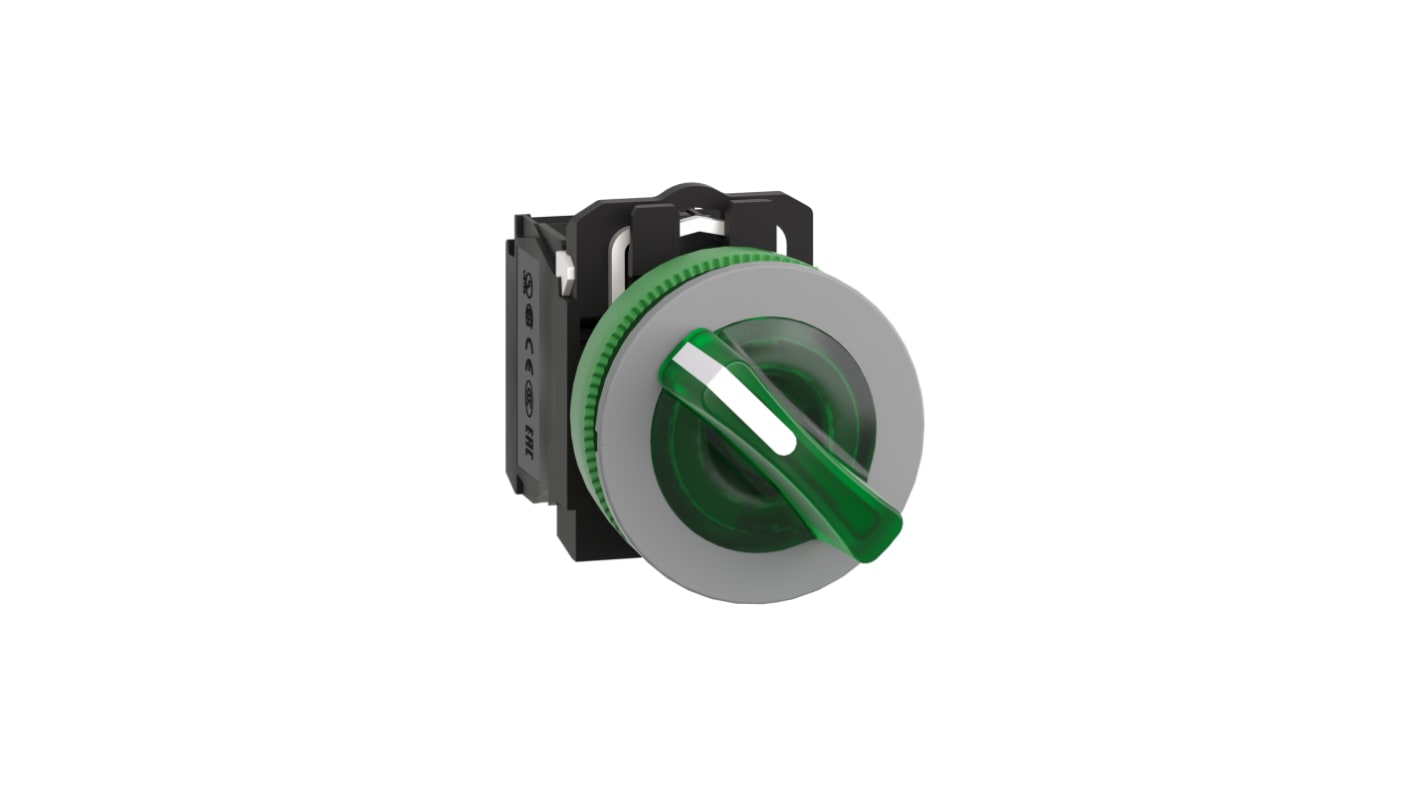

The Schneider Electric Illuminated Selector Switch featuring a universal LED, a grey bezel, and a green flush mounted button designed for 30mm mounting. Operating in 2 positions with a stay put mechanism, this illuminated selector switch is equipped with both 1 normally open and 1 normally closed contact.
Mercury free
RoHS compliant
IP66 and IP67 degree of protection
1000000 cycles mechanical durability
